8-Analog Input Module
128

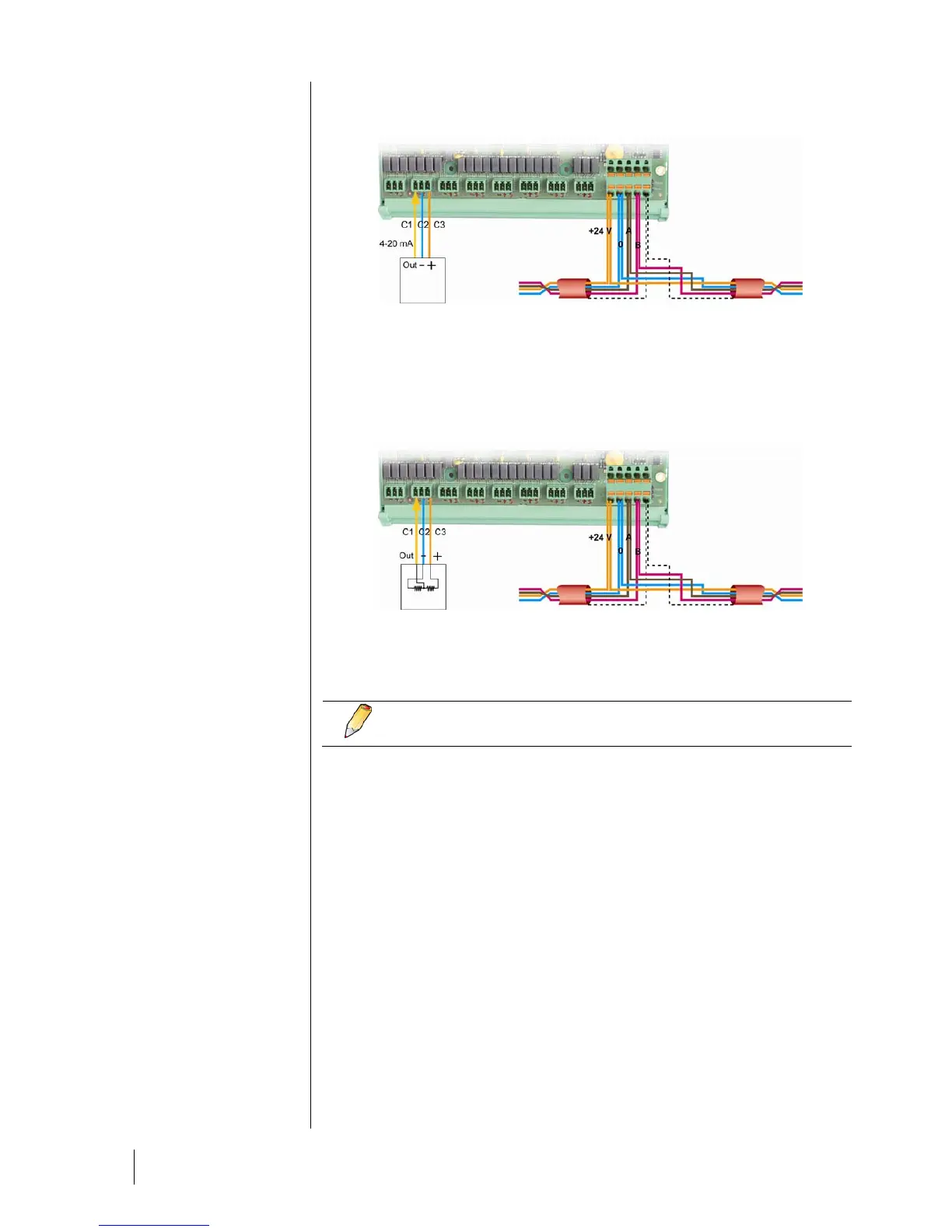

Figure 36: Connections of 8-analog input modules for 1 4-20mA detector with 3 wires
(explosive gas, toxicity detection).
130x
Figure 37: 8-analog input module connections for an explosive gas detection detector of
the Wheatstone Brdge CEX300 ou OLC type.
1
If this module is the last of the line, do not forget to set the jumper
marked EOL Resistor to Closed position.
4-Analog Output Module
Positioned contact
Positioned contacts
To next module
To MX43
or previous module
Wheatstone bridge type
detector
To next module
To MX43
or previous module
