12 MX43
User manual
Use 2 fixing screws 4x25 mm for fixing the support of the case.
072

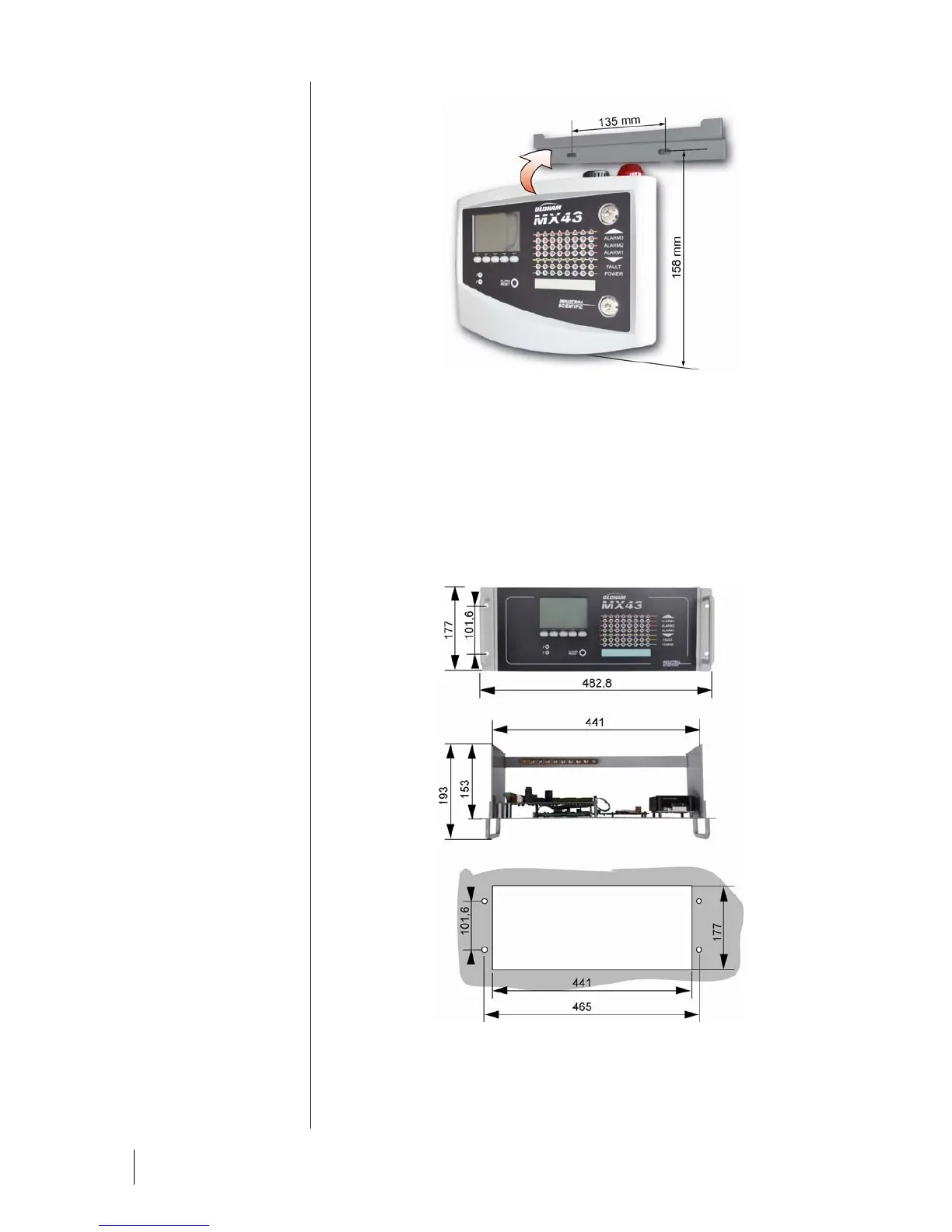

Figure 5: Fixing of the wall mounted version MX43 with a support plate.
Setting-up of a 19” Rack – 4 U
Access to the unit must be ensured in order to facilitate adjustments and
monitoring, and likewise in the back in order to allow easy access to the
different connectors at the rear.
This rack is built into a bay or a standard 19” cabinet. A free space of ½ U (22
mm) shall be provided for above and below the rack so as to assure the
proper ventilation of the MX43.
046
Figure 6: Size of the rack version.
