10044 Planer OLIVERMACHINERY.NET 21 | Page

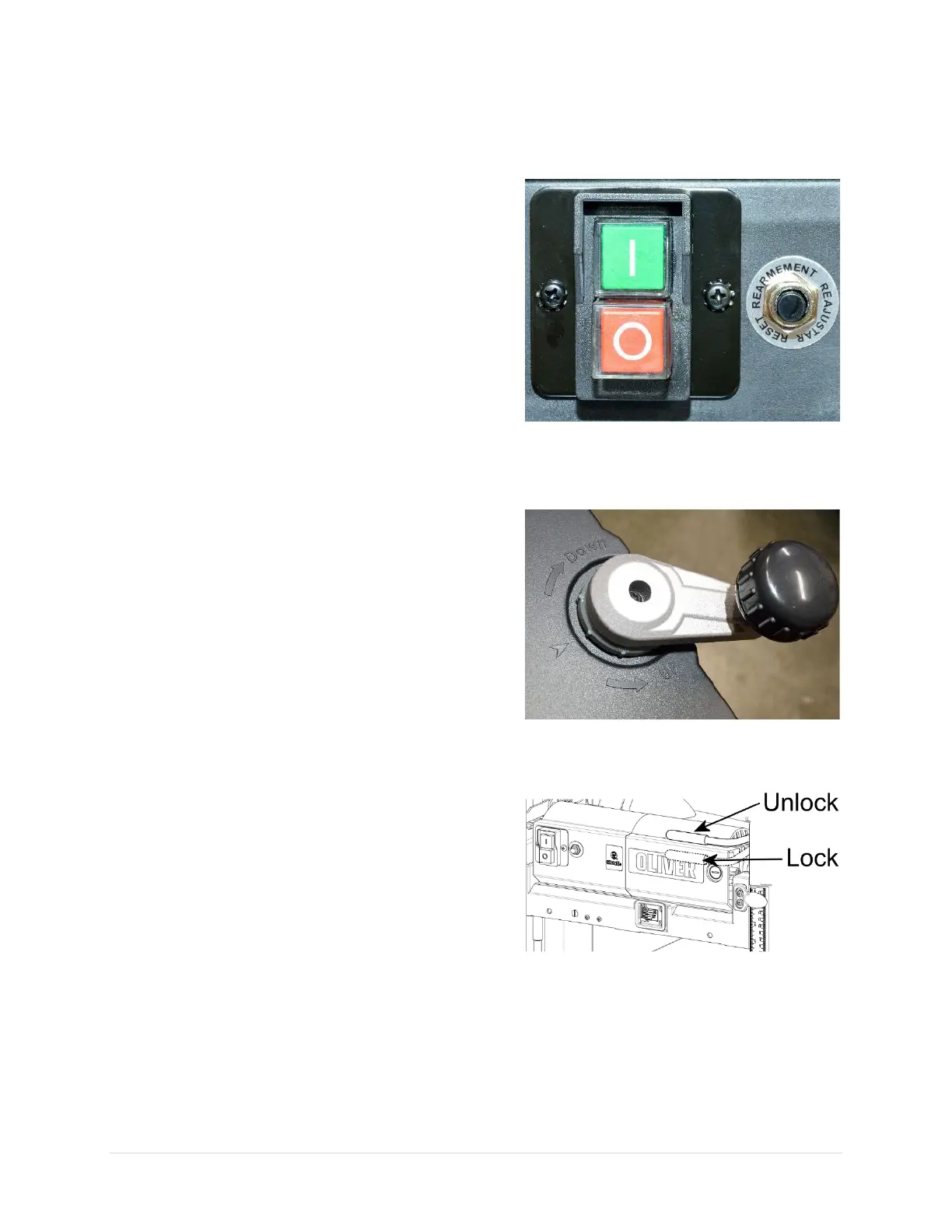

Controls and Components
ON / OFF Switches
• To start this planer, press the green “I” button.
• To stop, press the red “O” button.
NOTICE: Magnetic power switch prevents the machine
from restarting itself after a power outage. To restart the
machine, simply press the start button.
Overloading Protection Reset Button
If the planer is overloaded and stopped, the reset button
will pop up. Wait for 3 minutes for the machine to cool
down. Reduce workload, then press the reset button
before resuming operation.
Cutterhead Height Adjustment
This planer has a cutterhead elevation crank with a depth
scale. Each revolution changes the cutterhead’s height by
1/16”.
• Turn clockwise to LOWER cutterhead.
• Turn counterclockwise to RAISE cutterhead.
The depth scale turns with the crank and can be rotated
individually for measuring fine elevation adjustments.
Each notch on the scale represents 1/128” of elevation
change.
Carriage Lock
A locking lever is located below the cutterhead elevation
crank.
• Lower the lever to LOCK carriage height.
• Lift the lever to UNLOCK.
