Oliver M-1013 User Manual

11

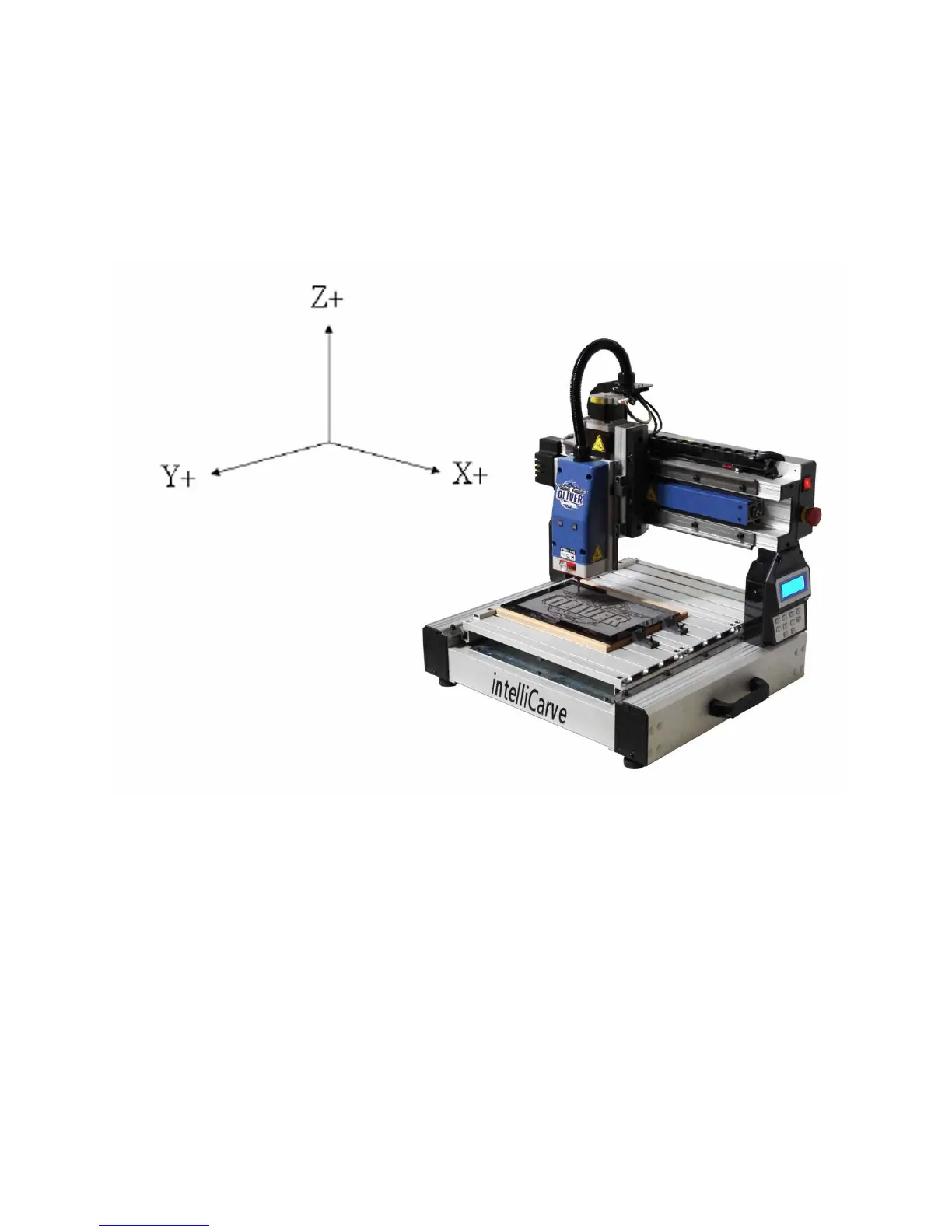

The Axis System
The axis movements are defined according to the operator’s position (facing the front spindle).
Directional Conventions
1. + X: spindle head moves right
2. - X: spindle head moves left.
3. +Z: spindle head moves up.
4. - Z: spindle head moves down.
5. +Y: table moves toward operator.
6. - Y: table moves away from operator.

Oliver M-1013 Specifications

General

Brand	Oliver
Model	M-1013
Category	Power Tool
Language	English
