13
Cutting T
ools

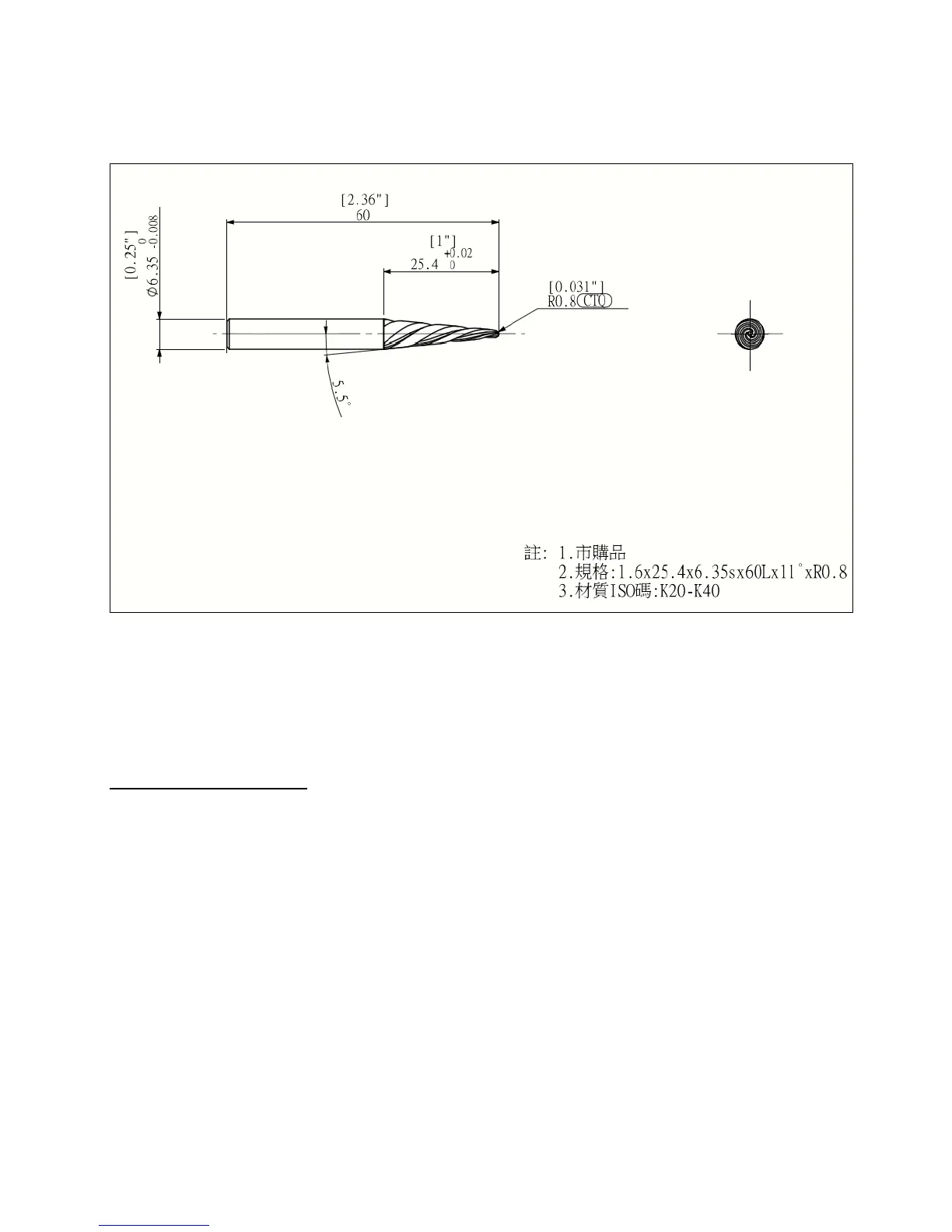

Conical Bit
T
ool Model No. 381044
-
00
0
Material: Carbide
Flute: 2
Flute length: 1” / Cut
depth: Max 1”
Shank diam
eter: ¼”
Overall length: 2.36”
Cutting edge radius: 0
.8mm
V
arious types of
woods.
Recomm
ended max depth of
cut per cycle: ½” for Pine
; 3/8” for Oak
12
14
Table of Contents
Warranty
2
Safety and Warnings
3
Table of Contents
4
Overview
5
Specifications
7
Unpacking Your Intellicarve
9
Standard Packaging
9
Getting to Know Your Intellicarve
10
The Components
10
X/Y/Z Axis System
11
Install the Cutting Tool
12
Cutting Tools
13
Conical Bit
13
End Mill Bit
14
Installing I-Picture Software
15
Using I-Picture
15
Getting Ready to Carve
19
Powering up
19
Setting the Work Piece on the Table
20
Using the Control Panel
21
Tips
24
Advanced Operations
25
CAD/CAM Software
25
Origin Repeat
25
Positioning by Coordinate
26
Turn Spindle On/Off in Manual Jog Mode
27
Changing Units from Metric to Imperial
28
Troubleshooting
29
Parts List
33
