Setting Up To Carve (cont.)
Setting the work piece on the table
The left fence with the ruler represents the Y-axis. Make sure that the Y dimension of your carving is within
the minimum and maximum dimension on the ruler. It is important for the work piece to be held securely in

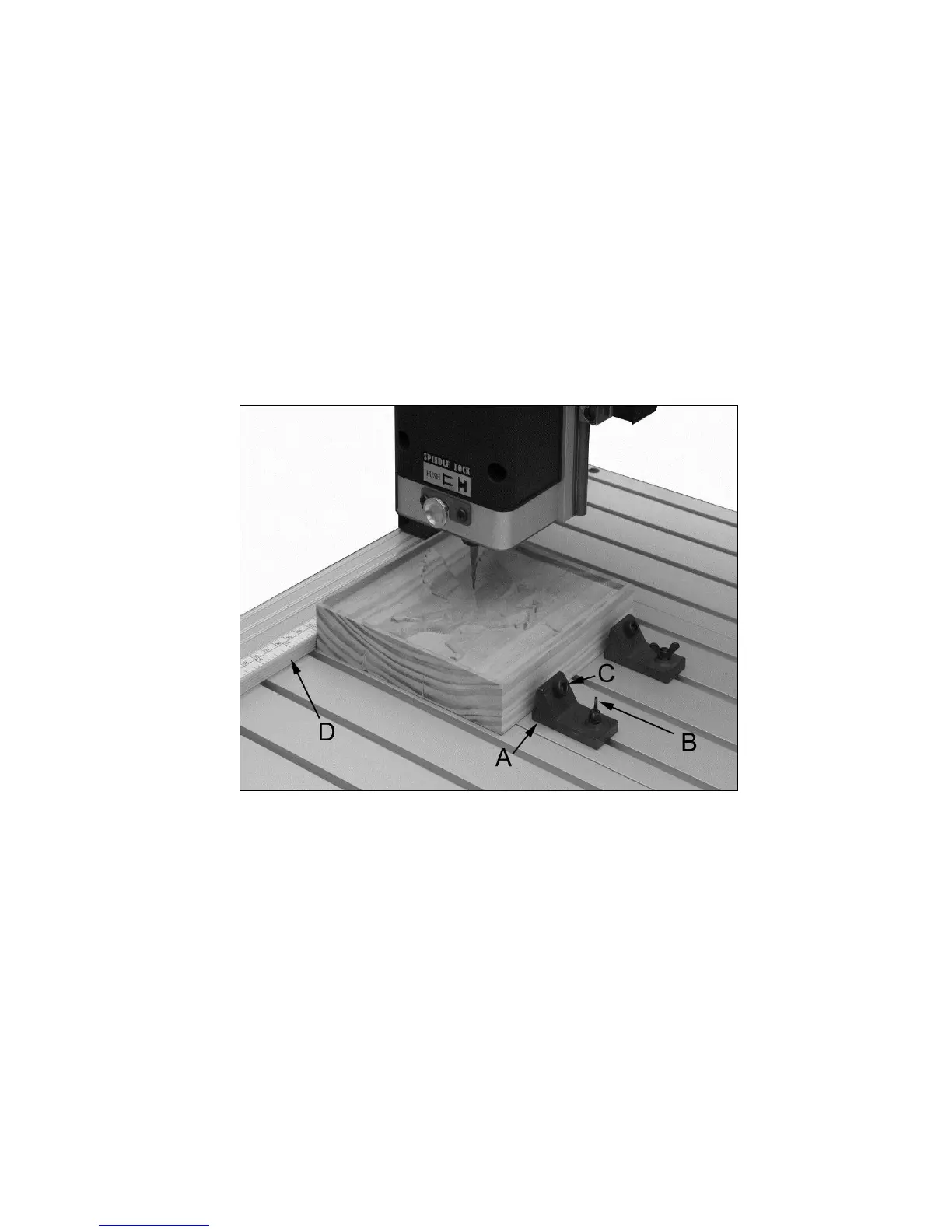

position on the work table. Two hold-downs are supplied with the machine to accomplish this. First place the
work piece against the fence (D) as shown in the picture below. Slide the hold down (A) up to the work piece
leaving approximately 1/16”-1/8” between the base of the hold down and the work piece. Lock the hold down
into position with the wing nut (B). Finally, turn the cap screw (C) clockwise until the work piece is held firmly
in position. Repeat the procedure for the second hold down.
