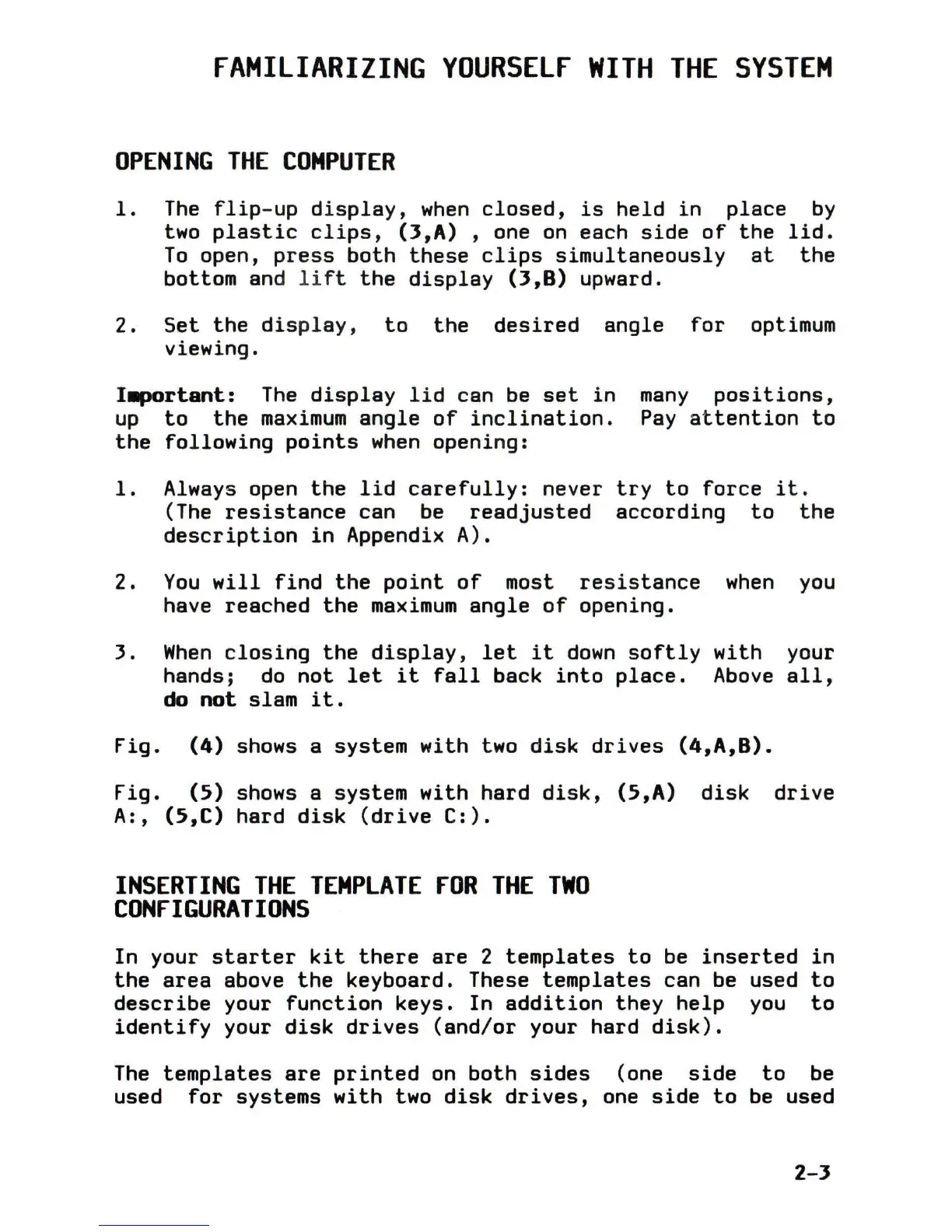

fAMILIARIZING YOURSELf WITH THE SYSTEM
OPENING THE COMPUTER
1. The flip-up display, when closed, is held in place by
two plastic clips, (J,A) , one on each side of the lid.
To open, press both these clips simultaneously at the
bottom and li ft the display (J,B) upward.
2.
Set the display, to the desired angle for optimum
viewing.
I~rtant: The display lid can be set in
up to the maximum angle of inclination.
the following points when opening:
many positions,
Pay attention to
1. Always open the lid carefully: never try to force it.
(The resistance can be readjusted according to the
description in Appendix A).
2.
You will find the point of most resistance when you
have reached the maximum angle of opening.
3. When closing the display, let it down softly with your
hands;
do not let it fall back into place. Above all,
do not slam it.
Fig. (4) shows a system with two disk drives (4,A,B).
Fig. (5) shows a system with hard disk, (5,A) disk drive
A:, (5,C) hard disk (drive C:).
INSERTING THE TEMPLATE fOR THE TWO
CONfIGURATIONS
In your starter kit there are 2 templates to be inserted in
the area above the keyboard. These templates can be used to
describe your function keys. In addition they help you to
identify your disk drives (and/or your hard disk).
The templates are printed on both sides (one side to be
used
for systems with two disk drives, one side to be used
2-J
