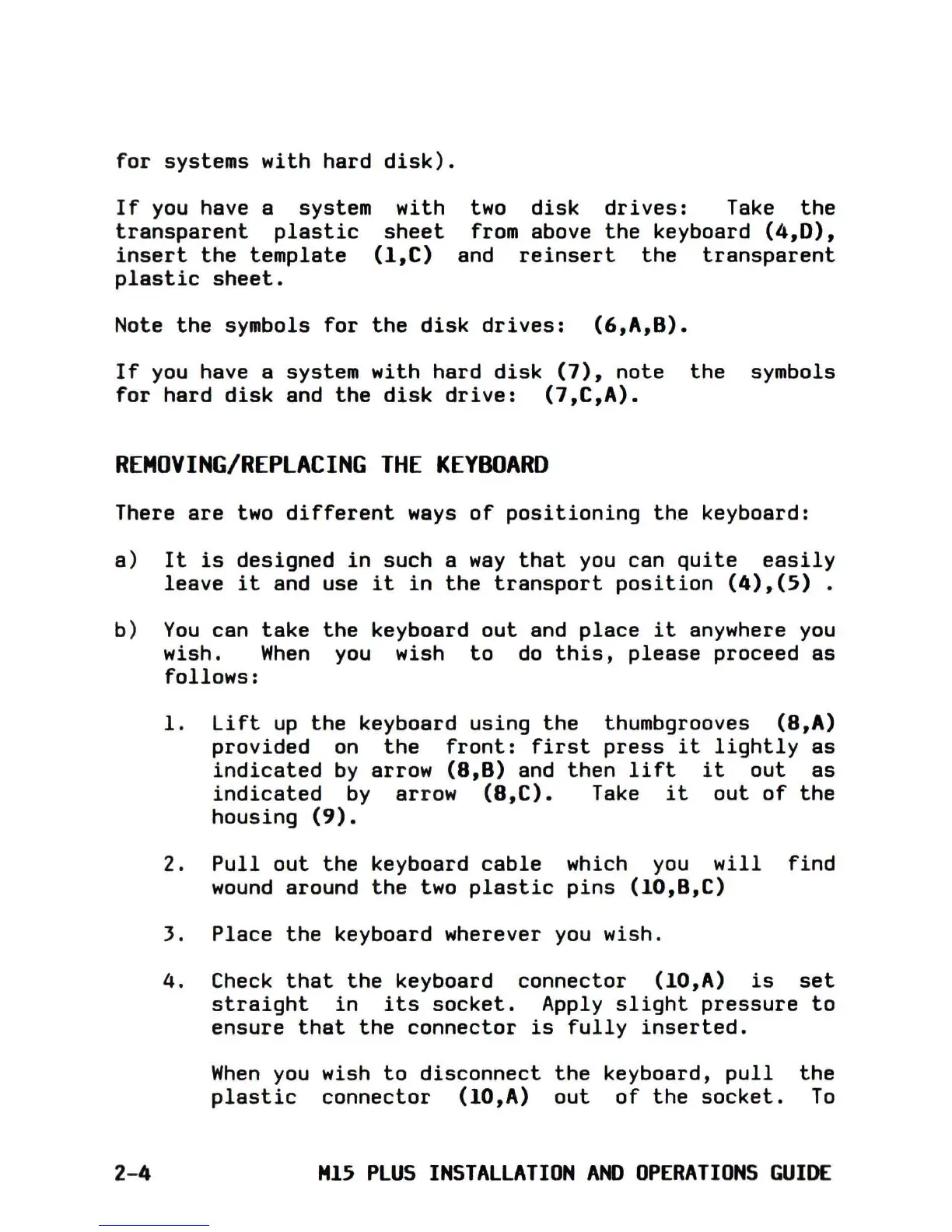

for systems with hard disk).
If you have a system
transparent plastic
insert the template
plastic sheet.
with
sheet
(I,C)
two disk drives: Take the
from above the keyboard (4,0),
and reinsert the transparent
Note the symbols for the disk drives: (6,A,B).
If you have a system with hard disk (7), note the symbols
for hard disk and the disk drive: (7,C,A).
REMOVING/REPLACING THE KEYBOARD
There are two different ways of positioning the keyboard:
a) It is designed in such a way that you can quite easily
leave it and use it in the transport position (4),(5) .
b)
You can take the keyboard out and place it anywhere you
wish. When you wish to do this, please proceed as
follows:
2-4
1. Lift up the keyboard using the thumbgrooves (8,A)
provided on the front: first press it lightly as
indicated by arrow (8,B) and then lift it out as
indicated by arrow (8,C). Take it out of the
housing (9).
2. Pullout the keyboard cable which you will find
wound around the two plastic pins (10,B,C)
3. Place the keyboard wherever you wish.
4. Check that the keyboard connector (10,A) is set
straight in its socket. Apply slight pressure to
ensure that the connector is fully inserted.
When you wish to disconnect the keyboard, pull the
plastic connector (10,A) out of the socket. To
H15 PLUS INSTALLATION AND OPERATIONS GUIDE
