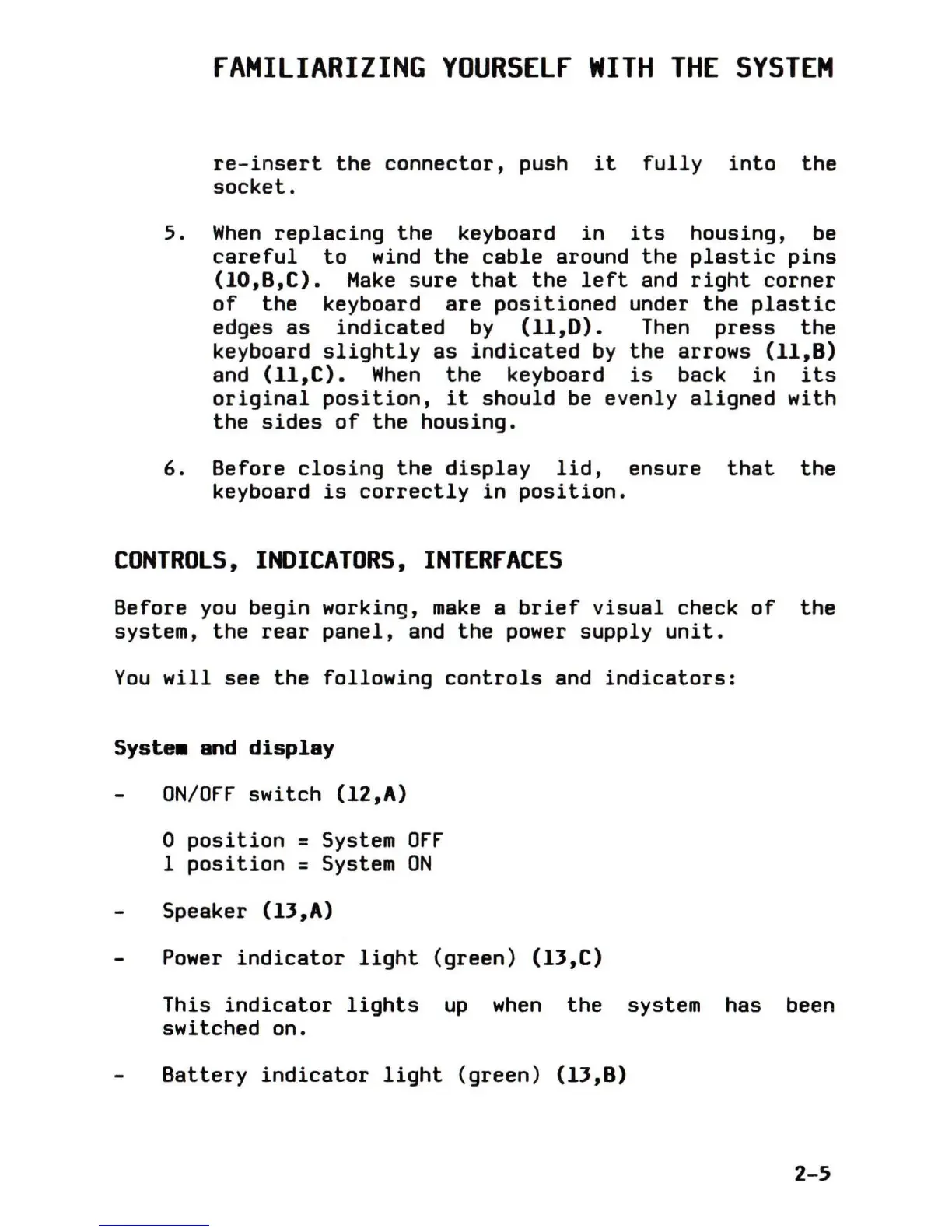

fAMILIARIZING YOURSELf WITH THE SYSTEM
re-insert the connector, push it fully into the
socket.
5. When replacing the keyboard in its housing, be
careful to wind the cable around the plastic pins
(10,8,e). Make sure that the left and right corner
of the keyboard are positioned under the plastic
edges as indicated by (ll,D). Then press the
keyboard slightly as indicated by the arrows (11,8)
and (ll,e). When the keyboard is back in its
original position, it should be evenly aligned with
the sides of the housing.
6. Before closing the display lid, ensure that the
keyboard is correctly in position.
CONTROLS, INDICATORS, INTERfACES
Before you begin working, make a brief visual check of the
system, the rear panel, and the power supply unit.
You will see the following controls and indicators:
Syste. and display
ON/OFF switch (12,A)
o position = System OFF
1 position = System ON
Speaker (13,A)
Power indicator light (green) (13,e)
This indicator lights up when the system has been
switched on.
Battery indicator light (green) (13,8)
2-5
