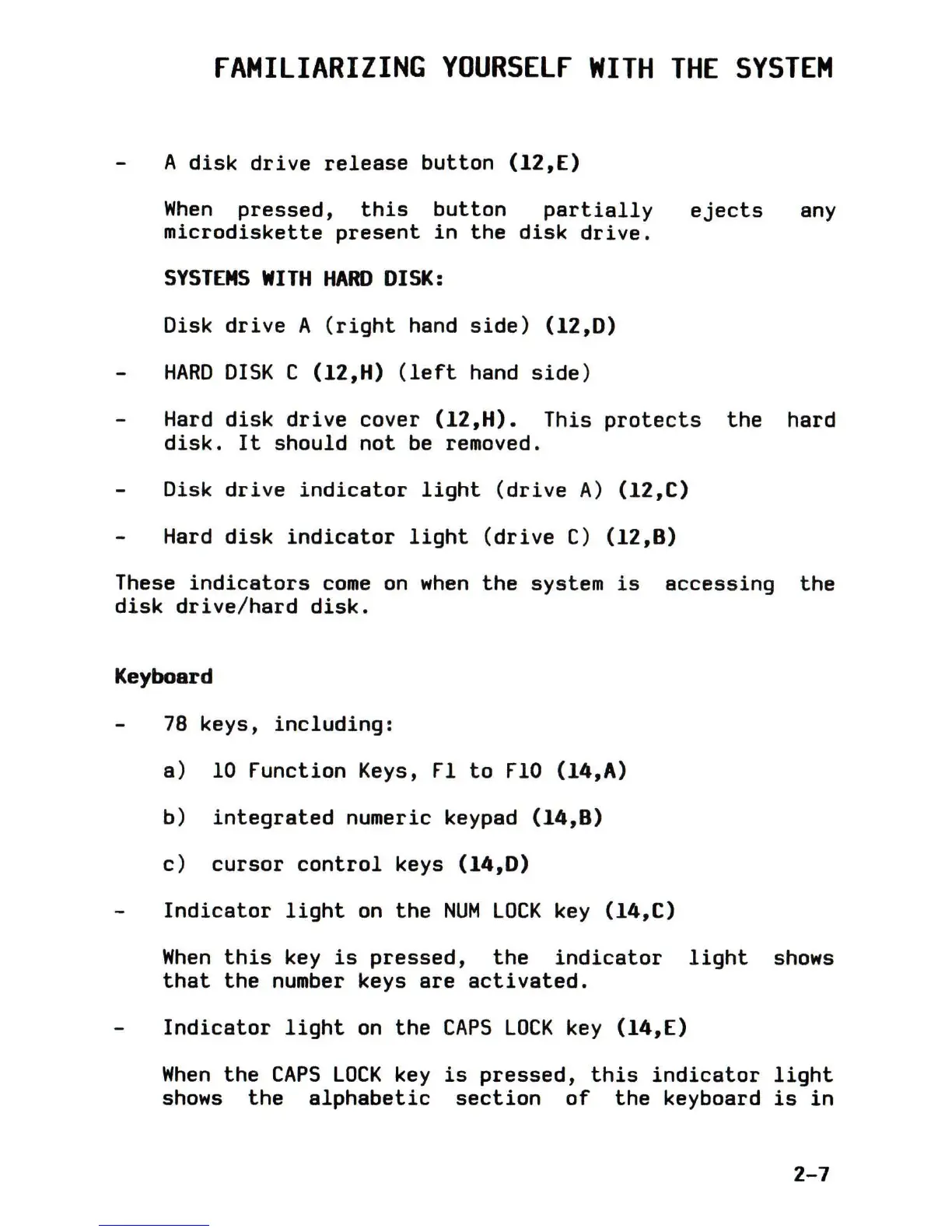

fAMILIARIZING YOURSELf WITH THE SYSTEM
A disk drive release button (12,E)
When pressed, this button partially ejects any
microdiskette present in the disk drive.
SYSTEMS WITH HARD DISK:
Disk drive A (right hand side) (12,0)
HARD DISK C (12,H) (left hand side)
Hard disk drive cover (12,H). This protects the hard
disk. It should not be removed.
Disk
drive indicator light (drive A) (12,C)
Hard disk indicator light (drive C) (12,8)
These indicators come on when the system is accessing the
disk drive/hard disk.
Keyboard
78 keys, including:
a) 10 Function Keys, Fl to FlO (14,A)
b)
integrated numeric keypad (14,8)
c) cursor control keys (14,0)
Indicator light on the NUM LOCK key (14,C)
When this key is pressed, the indicator light shows
that the number keys are activated.
Indicator light on the CAPS LOCK key (14,E)
When the CAPS LOCK key is pressed, this indicator light
shows the alphabetic section of the keyboard is in
