Low
magn
ification
High
magnifICation
Fig.
9
Fig.
10
Fig.
11
Fig
. 12
•

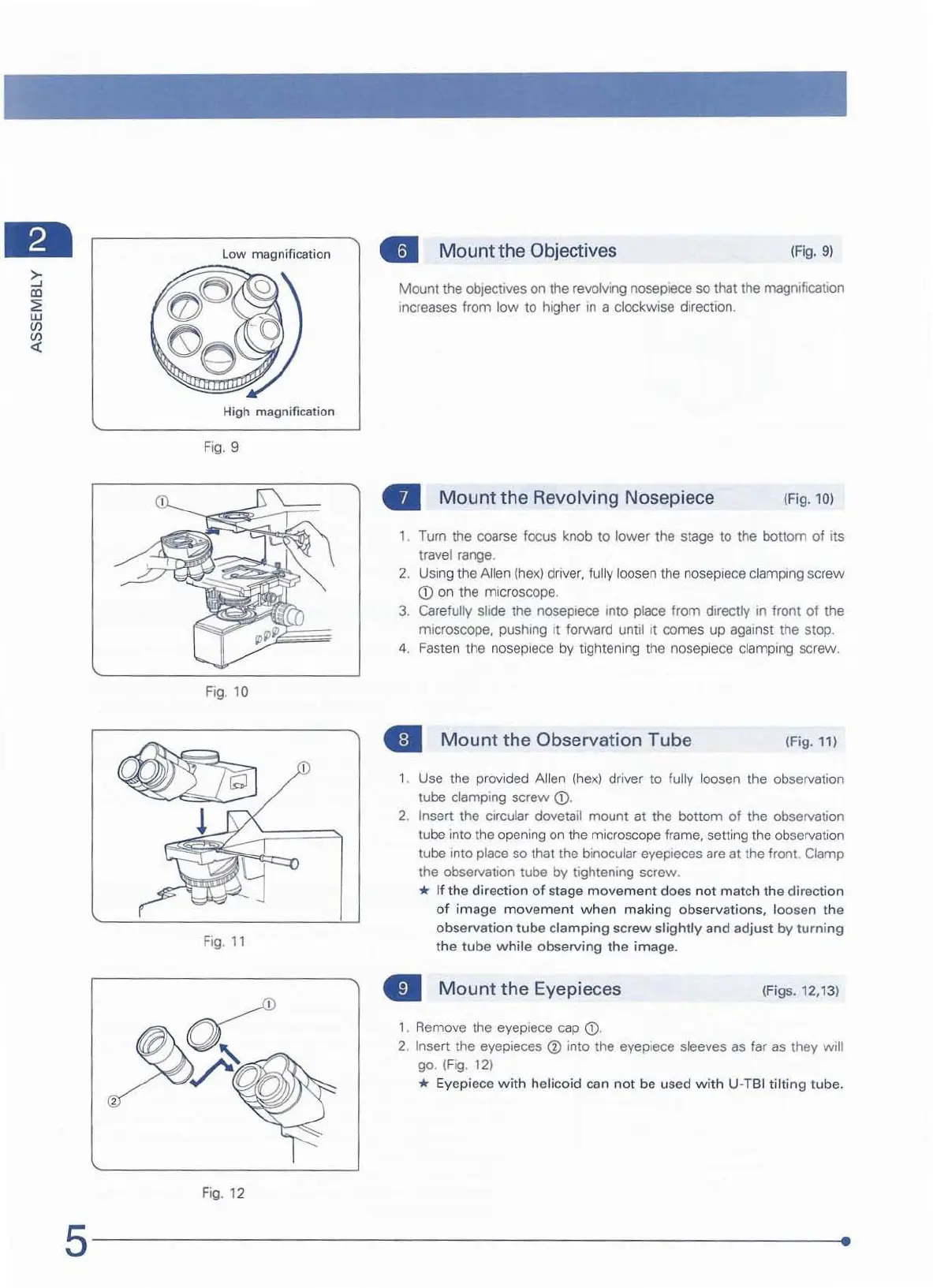

Mount
the Objectives
(Fi
g. 9)
Mount the
objectIVes
on
the revolving nosepiece so that the magnificatIOn
Increases
from
low
to higher
in
a clockwise direct
IOn.
•
Mount
the Revolving Nosepiece
(F
ig. 10)
1.
Turn
the coarse focus knob to lower the stage to the bottom of its
travel range.
2.
Using the Allen
(hex)
driver. fully loosen the nose
pi
ece clamping screw
<D
on
t
he
microscope.
3. Carefully slide the nosepiece Into place from directly in front of the
miCroscope. pushing It forward until it comes up against the stop.
4. Fasten the nosepiece by tightening
th
e nosepiece clamping screw.
• Mount
th
e Observation Tube
(Fig. 11)
1.
Use
the provided A
ll
en
(he
x) driver to fully loosen the observation
tube
clamping screw
<D.
2.
Insert the
Circular
dovetail mount at the bottom of the observation
tube into the o
pe
ning
on
the micros
co
pe frame. setting the observation
tube
Into
place
so
t
hat
the binocular eyepieces are
at
the front. Clamp
the observation tube
by
tightening screw.
* If the direction
of
stage movement does not match the direction
of image movement
whe
n making observations, loosen the
observa
tion
tub
e
clamp
ing sc
rew
slightly and adjust by turning
the
tub
e
while
observing
the
imag
e.
a Mo
unt
th
e Eyepieces (Fig
s.
12,13)
1. Remove the
ey
epiece
cap
CD
.
2. Insert the eyepieces @ into the eyepiece
sle
eves
as
far
as
they will
go.
(Fig.
12)
* Eyepiece
with
helicoid can not be used
with
U-TBI tilting
tub
e.
5
----------
----
------------
--
--
-
