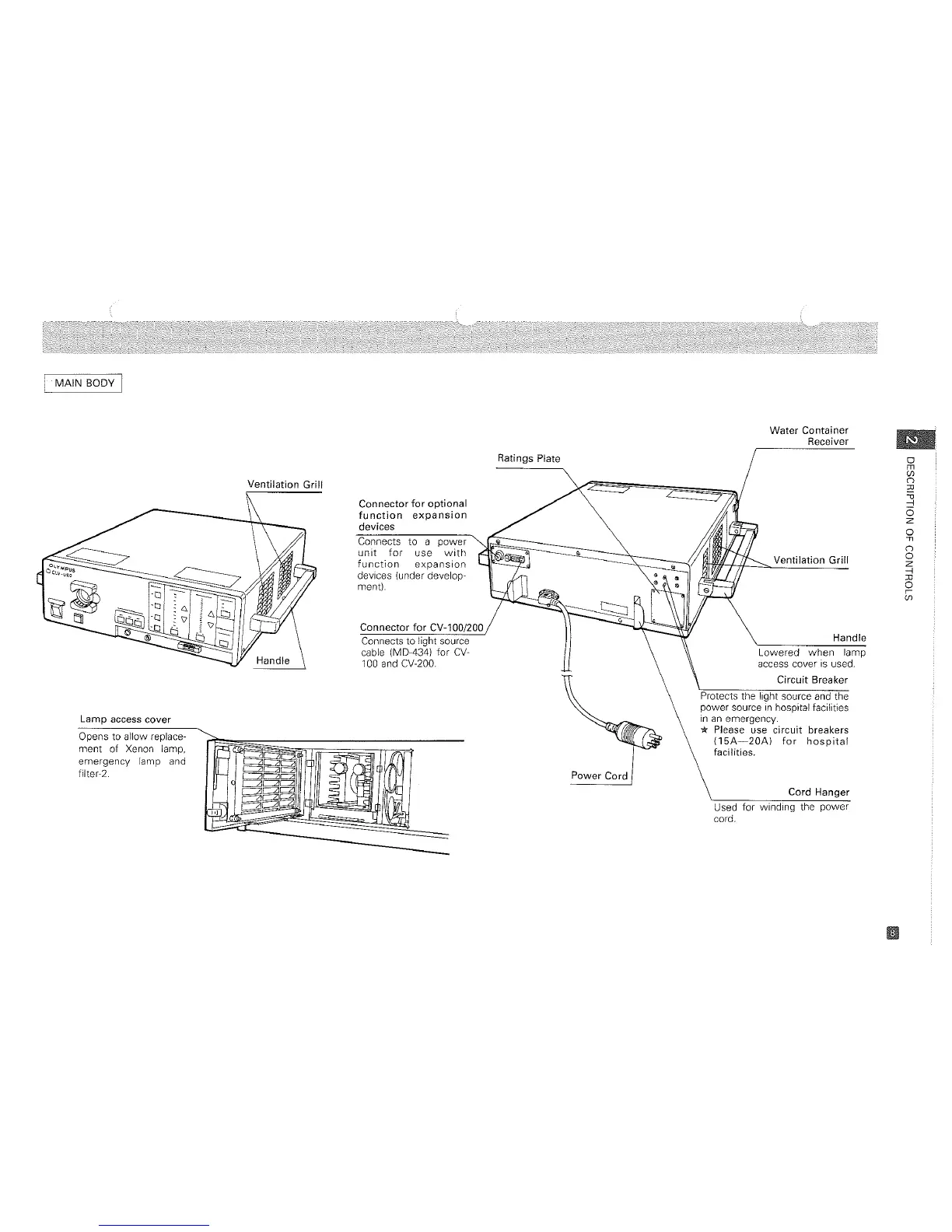

MAIN BODY I
Water Container
Receiver
Ventilation Grill
Connector for optional
function expansion
devices
Connects to a power
unit for use with
function expansion
devices (under develop~
ment).
Connector for CV-100/200
Connects
to light source
cable (MD-434) for
CV-
100 and CV-200.
Ratings Plate
•
Ventilation Grill
Handle
Lowered when lamp
access cover is used.
Circuit Breaker
o
m
(f)
n
:IJ
::'1
6
z
o
-n
n
o
z
..,
:IJ
o
r
(f)
Lamp access cover
Opens to allow replace-
ment of Xenon lamp,
emergency lamp and
filter-2.
Power Cord
Protects the light source and the
power source
in hospital facilities
in an emergency.
* Please use circuit breakers
(15A~20A) for hospital
facilities.
Cord Hanger
Used for winding the power
cord.
