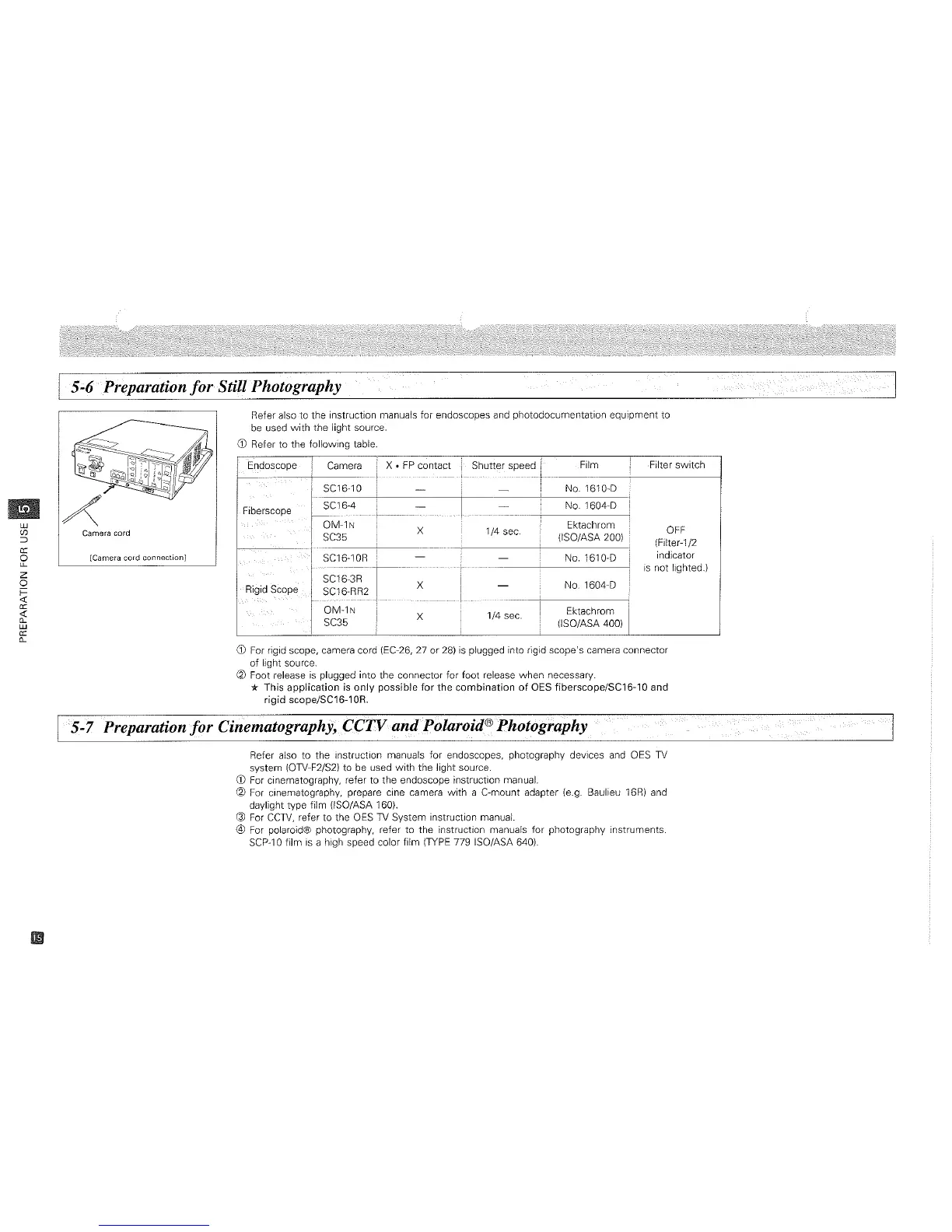

Olympus CLV-U20 - Preparation for Still Photography; Preparation for Cinematography, CCTV and Polaroid Photography

I 5-6 Preparation for Still Photography
w
(J)
::J
0:
o
"-
z
o
~
0:
«
Il.
w
0:
Il.
Camera cord
[Camera cord connection]
Refer also to the instruction manuals for endoscopes and photodocumentation equipment to
be used with the light source.
CD Refer to the following table.
Endoscope
Camera
X • FP contact I
Shutter speed
Film Filter
switch
f--
SC16-10
-
-
No. 1610-0
Fiberscope
SC16-4
!
- No. 1604-0
I--
!
N
Ektachrom
SC35
X
1/4 sec.
(ISO/ASA 200)
OFF
(Filter-1/2
SC16-lOR
-
-
I
No.
1610-0
indicator
IS not lighted.)
SC16-3R
X
No. 1604-0
Rigid
SC16-RR2
-
f
OM-1N
X
1/4 sec.
Ektachrom
SC35
:
IISO/ASA 400)
CD For rigid scope, camera cord (EC-26, 27 or 28) is plugged into rigid scope's camera connector
of
light source.
(2) Foot release is plugged into the connector for foot release when necessary.
* This application is only possible for the combination of OES fiberscope/SC16-10 and
rigid scope/SC16-10R.
15-7 Preparation for Cinematography, ccrv and l'olaroid® Photography
Refer also to the instruction manuals for endoscopes, photography devices and OES TV
system (OTV-F2/S2) to be used
with the light source.
CD For cinematography, refer to the endoscope instruction manual.
(2) For cinematography, prepare cine camera with a C-mount adapter (e.g. Baulieu 16R) and
daylight type film (lSO/ASA 160).
® For CCTV, refer to the OES TV System instruction manual.
@ For polaroid® photography, refer to the instruction manuals for photography instruments.
SCP-lO film
is a high speed color film (TYPE 779 ISO/ASA 640).
