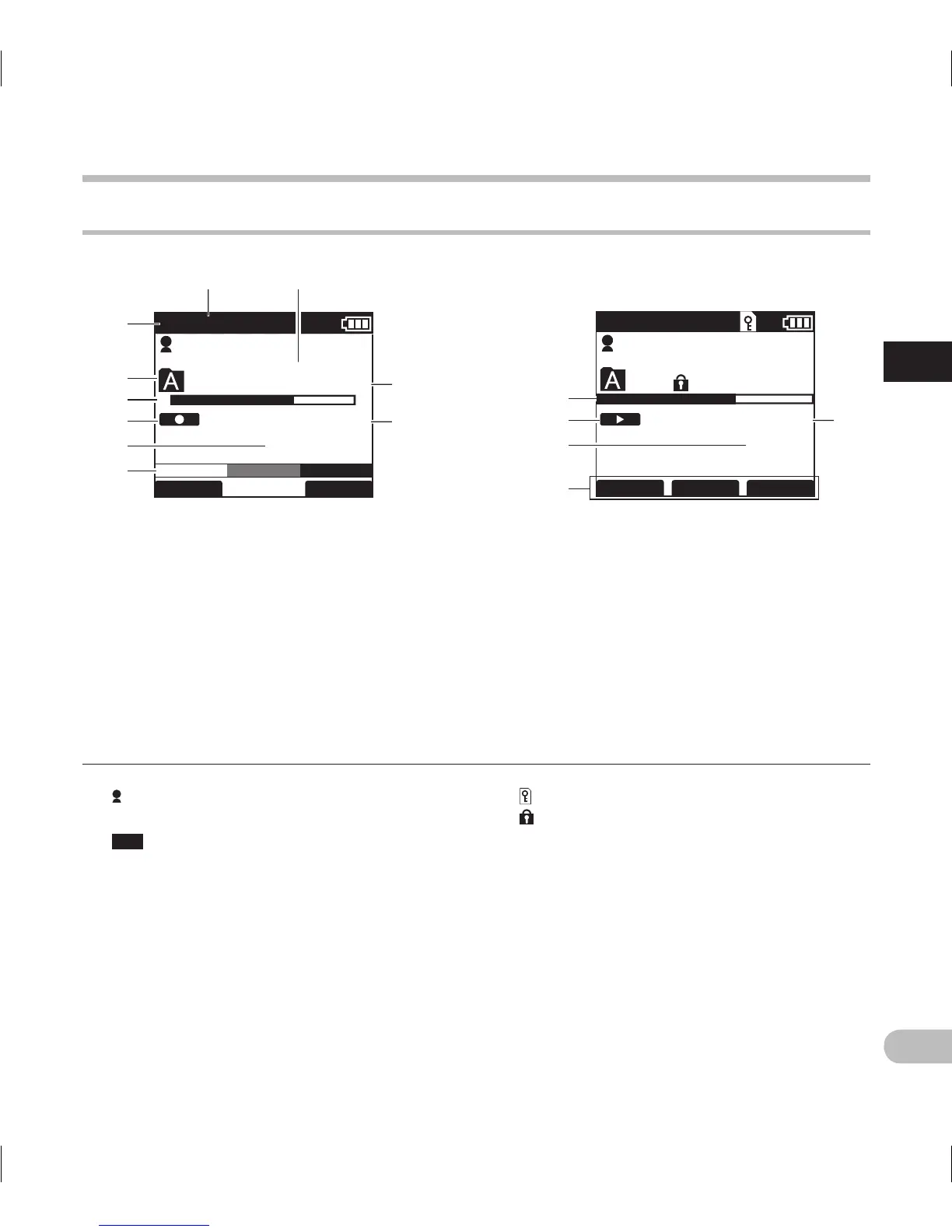

Display status indicators (LCD panel)
1 Record mode indicator
2 Current folder
3 Memory remaining indicator (E/F bar)
4 Record indicator
5 Remaining recording time
6 Level meter indicator
7 Microphone sensitivity indicator
8 Current file number
9 Total number of files in the folder
0 Recording elapsed time
! Playback position bar indicator
@ Play indicator
# Total recording time of the selected file
$ Button guide display
% Current playback time
[ ] Author ID indicator
[ õú] Battery indicator
[
VCVA
] VCVA (Variable Control Voice
Actuator) indicator
[
] Card lock indicator
[
] Erase lock indicator
Identification of parts
Display in the recording mode Display in the playback mode
1
EN
11
Identification of parts
025 / 030
DISPLY
INDEX
DS2500
QP DICT
EF
00 M 10 S
15 H 22 M 30S
1
2
7
6
8
3
4
5
9
0
Ni
025 / 030
INSERT
SPEED INDEX
DS2500
QP DICT VCVA
02 M 50 S
12M 0 5 S
!
#
@
%
$
Ni
