Olympus IX2-DSU - System Configuration; In Case of BX Series

SYSTEM OUTLINE / System Configuration
I. System Outline
I. 1-3
Page
1-3 System Configuration
1-3-1 In case of BX series

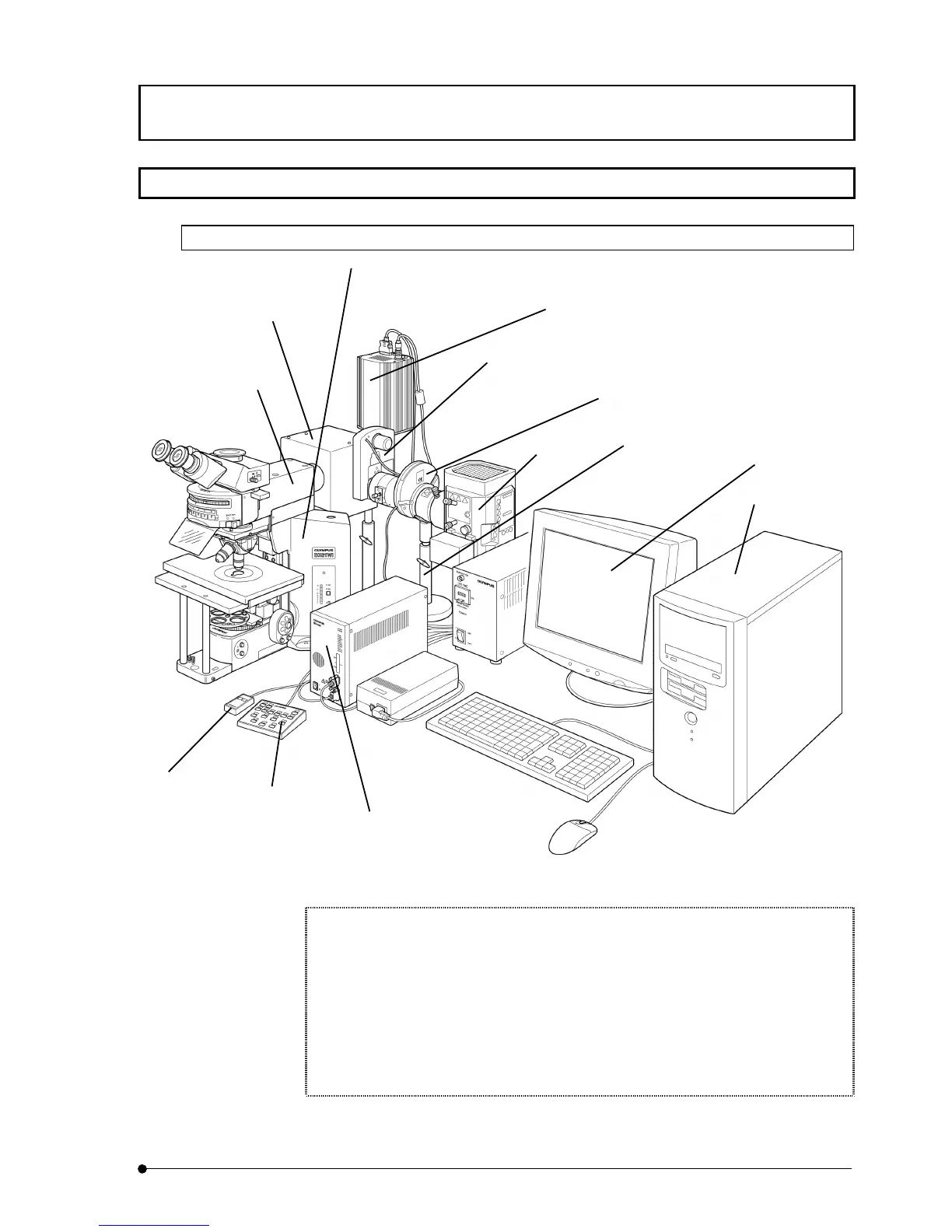

Figure of BX series System Configuration
When you use this system in conjunction with microscope, you cannot integrate the
following units:
Motorized condenser (U-UCD8A) and motorized reflected light fluorescence (BX-RFAA
and BX-RLAA).
Motorized filter wheel (U-FWT and U-FWO)
When you integrate motorized revolving nosepiece, connect control box (IX2-UCB) with
use of connecting cable (U-REMMT).
Monitor
Computer
Cooled CCD Camera
Control box
(IX2-UCB)
DSU motor drive board
(DU-MTDRV) attached
Hand switch
(U-HSTR2)
Lamp
House
Microscope
(BX51, BX52, BX61, BX62,
BX51WI or BX61WI)
Light illuminator
for DSU BX
(DU-RFABX)
DSU Disk box
(DU-DBIX)
Motorized filter wheel
(U-FWR)
Stand for DSU BX
(DU-STBX)
DSU Hand switch
(DU-HSW)
Shutter and
Filter wheel
