SYSTEM OUTLINE / System Configuration
I. System Outline
I. 1-5
Page
1-3-3 In case of IX series

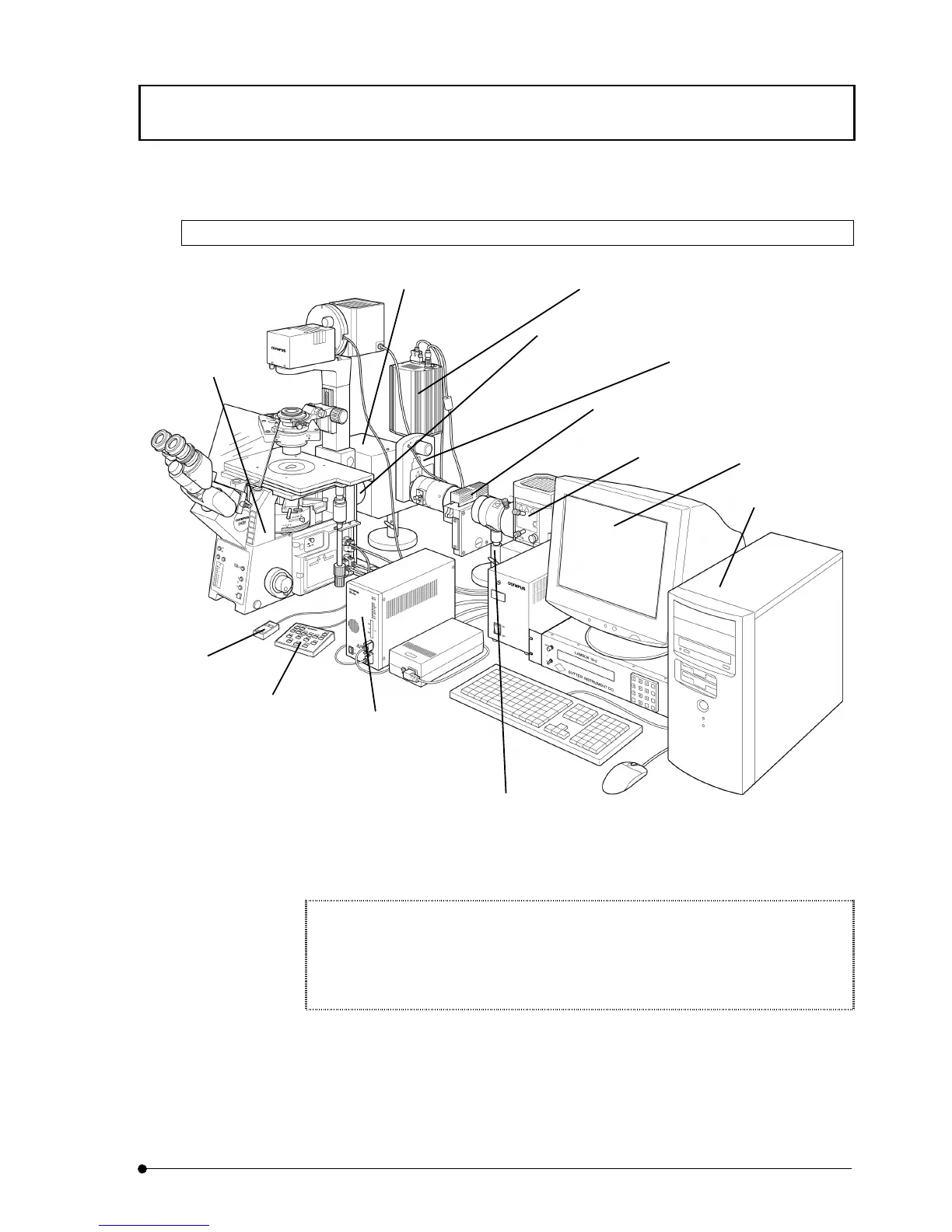

Figure of IX Series System Configuration
When you use this system in conjunction with microscope (IX71 or IX81), you cannot
integrate with the following units:
Motorized fluorescent mirror unit cassette (IX2-RFACA) and motorized filter wheel (U-
FWT and U-FWO).
Monitor
Computer
Cooled CCD Camera
Control box
(IX2-UCB)
DSU motor drive board
(DU-MTDRV) attached
Hand switch
(U-HSTR2)
Shutter and
Filter wheel
Lamp
House
Microscope
(IX71, IX81)
Light illuminator
for DSU IX
(DU-RFAIX)
DSU Disk box
(DU-DBIX)
Motorized filter wheel
(U-FWR)
Stand for DSU IX
(DU-STIX)
DSU Hand switch
(DU-HSW)
