Olympus MX61L - Microscope Nomenclature; Component Identification and Modules

MX61/MX61L
8
NOMENCLATURE
Eyepieces
SWH Series
(FN 26.5)
WHN/WH Series
(FN 22)

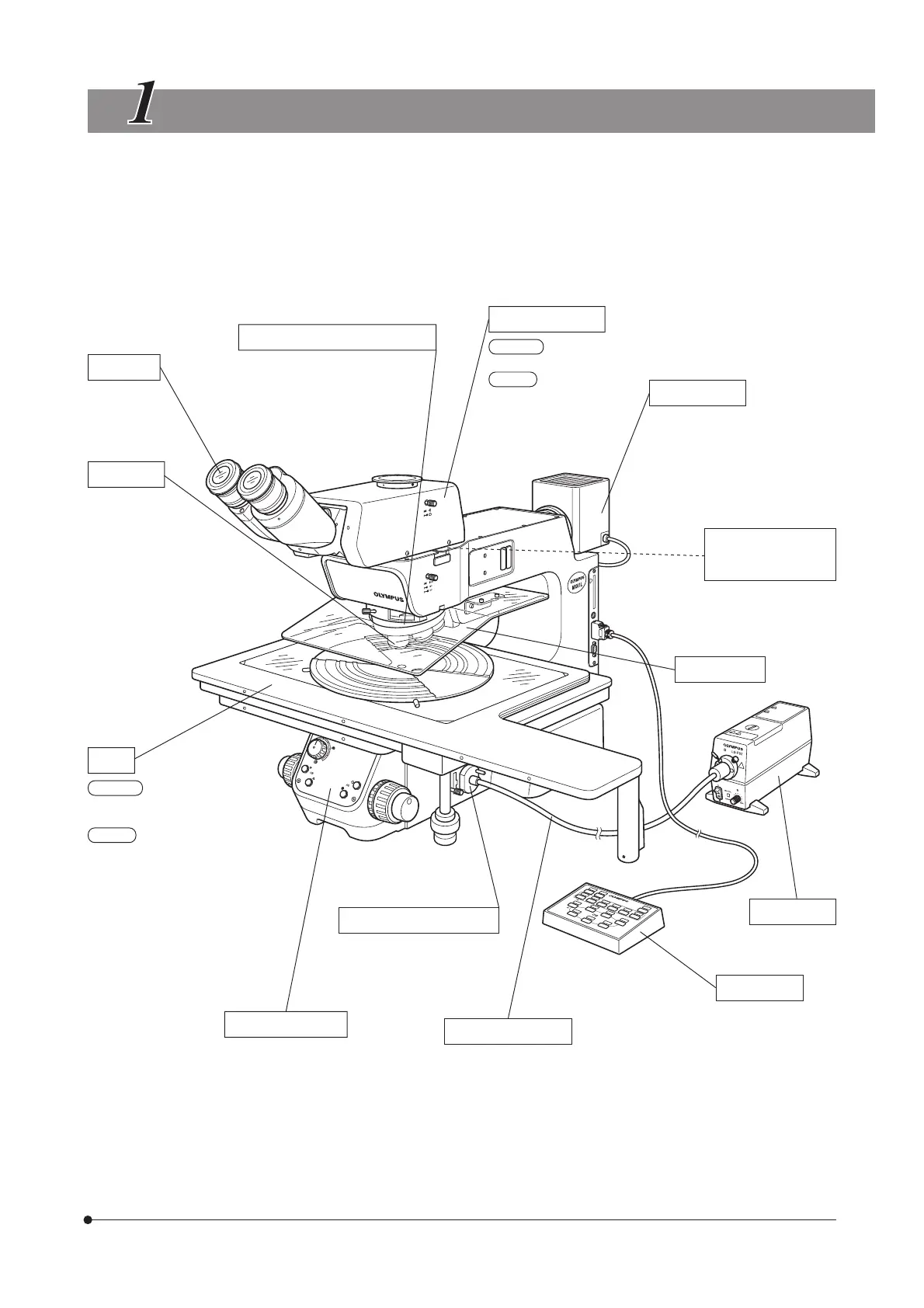

}The illustration shows the MX61L.
}The modules shown below are examples of those used in a typical system. Certain modules are usable even when they
are not mentioned below. For these modules, refer to the latest catalogues or contact Olympus.
For the modules marked *, refer to their instruction manuals.
Objectives
MPLFLN/
MPLFLN-BD
LMPLFLN/
LMPLFLN-BD
MPLN/
MPLN-BD
UMPlanFl/
UMPlanFl-BD Series
LMPlanFl/
LMPlanFl-BD Series
MPlanApo/
MPlanApo-BD Series
LMPlanApo/
LMPlanApo-BD Series
MPlan/MPlan-BD Series
Stage
Microscope Frame
MX61L-F
MX61-F
MX61L
MX-SIC1412R2 (Transmitted light/
reflected light observation model)
MX61
MX-SIC8R (Transmitted light/
reflected light observation model)
MX-SIC6R2
(Reflected light observation only)
MX-SIC6A
(Reflected light observation model)
Motorized Revolving Nosepiece
U-D5BDREMC
U-D6REMC
U-P5REMC
Observation Tube
Lamp Housing
U-LH100-3/LH100L-3 (Halogen bulb)
U-LH100HG/LH100HGAPO
(Mercury burner)
U-LH75XEAPO (Xenon burner)
(Note) The MX-HGAD adapter is
required for the mercury
burner and xenon burner.
MX61L
MX-SWETTR (FN 26.5)
MX61
MX-SWETTR (FN 26.5)
U-SWTR-3 (FN 26.5)
U-TR30-2 (FN 22)
U-BI30-2 (FN 22)
Intermediate Attachment
(Only one of the follow-
ing can be attached.)
U-EPA2 *
U-CA/ECA *
MX-AFSU *
U-CFU *
Breath Shield
MX-BSH
MX-BSH-ESD
Light Source
LG-PS2 *
Flexible Light Guide
LG-SF *
Hand Switch
U-HSTR2
Transmitted Light Module
MX-TILLA
MX-TILLB
