Chapter 6 Submenu Operations
69
High definition LCD monitor OEV261H
DISPLAY
PATTERN
Selects the pattern that appears on the panel when a
USER file is loaded.
∗ The FLIP mode is not available when a PRESET file or
USER file is loaded.
∗ The value of PRESET files cannot be changed.
∗ When change the value of USER files, save by the
user in the SYSTEM CONFIG menu previously.

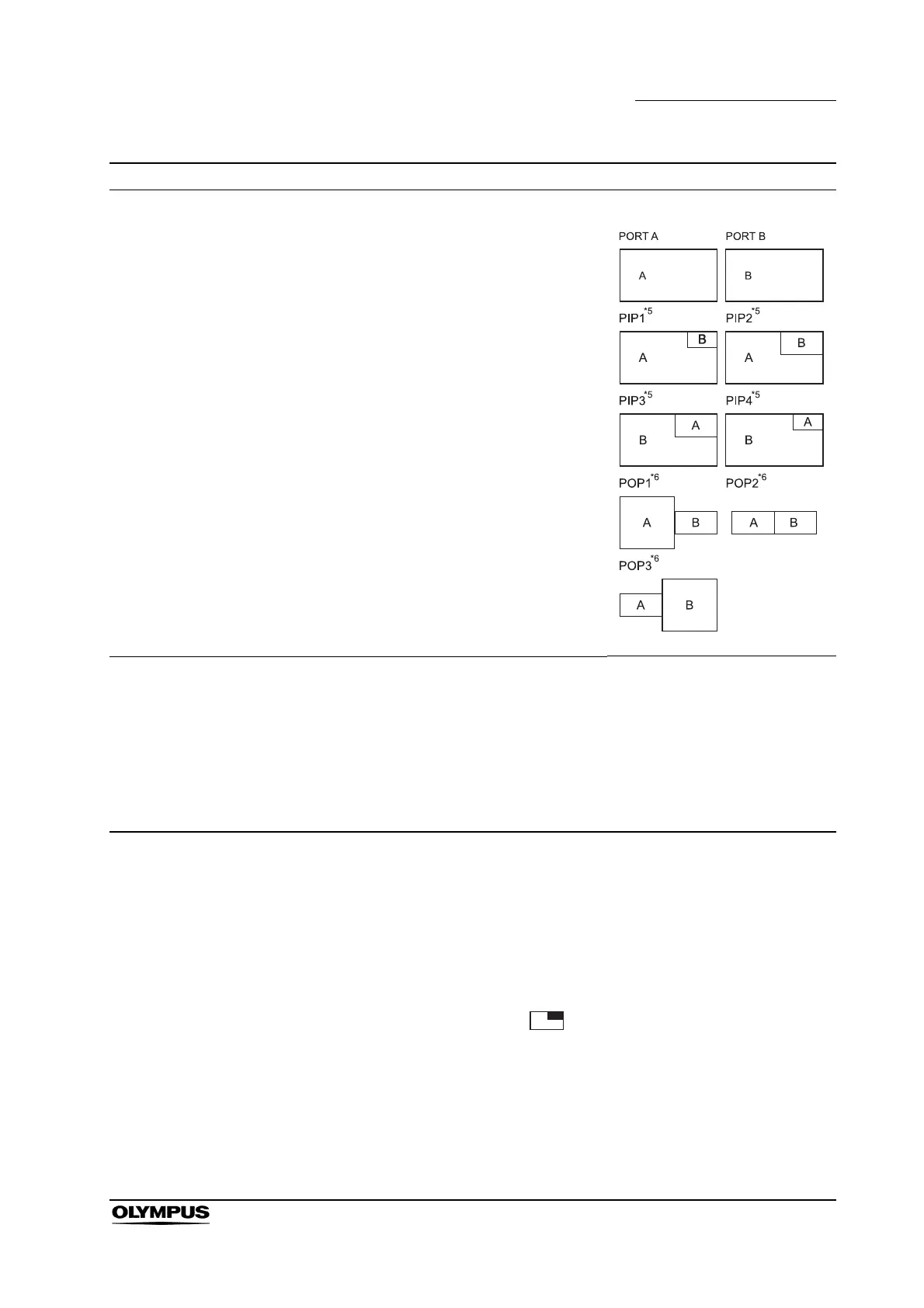

PORT A (default value)
PORT B
PIP1
PIP2
PIP3
PIP4
POP1
∗4
POP2
∗4
POP3
∗4
SQUARE
PATTERN
This function sets the display pattern when PORT B is set
to SQUARE in PIP/POP mode.
•MODE1
•MODE2
•MODE3
•MODE4
•MODE5
For details on patterns, see
“SQUARE PATTERN”.
∗1: Each press of the PIP button switches the size of PORT A and PORT B screens (page 38).
∗2: The SCAN SIZE of the INPUT submenu for VIDEO CONFIG submenu input terminals is
reflected.
∗3: This is limited to an 1080i (60 Hz/59.94 Hz/50 Hz) input signal or an 1080p
(60 Hz/59.94 Hz/50 Hz) HD signal. Other input signals cannot reproduce this feature and
results in a normal screen display.
∗4: In POP mode, the POP DISPLAY POSITION setting is also reflected.
∗5:
An example showing PIP DISPLAY POSITION at (the top right of the screen).
∗6: An example of POP DISPLAY POSITION in MODE1.
