POS. DESCRIPTION Q.TY B105 B110 B115
115 END COVER JACKET O-RING 1
404T4375
116 ASEPTIC INTERNAL COVER O-RING 1
404V3500
117 ASEPTIC EXTERNAL COVER O-RING 1
404V3550
118 COUNTERFLANGE FOR ASEPTIC VERSION PUMPING CASE 2
2006B181
119 INTERNAL O-RING FOR ASEPTIC VERSION 2
404V3168
120 EXTERNAL O-RING FOR ASEPTIC VERSION 2 404V3231
121 SCREW 8 411A06X20
239 SEAL PROTECTION 2 4034Y001
302 SEAL PROTECTION SCREW 4 410A05X10
303 PLUG 4 44301020
304 NAME PLATE 1 4034A100
305 RIVET 4 44301027

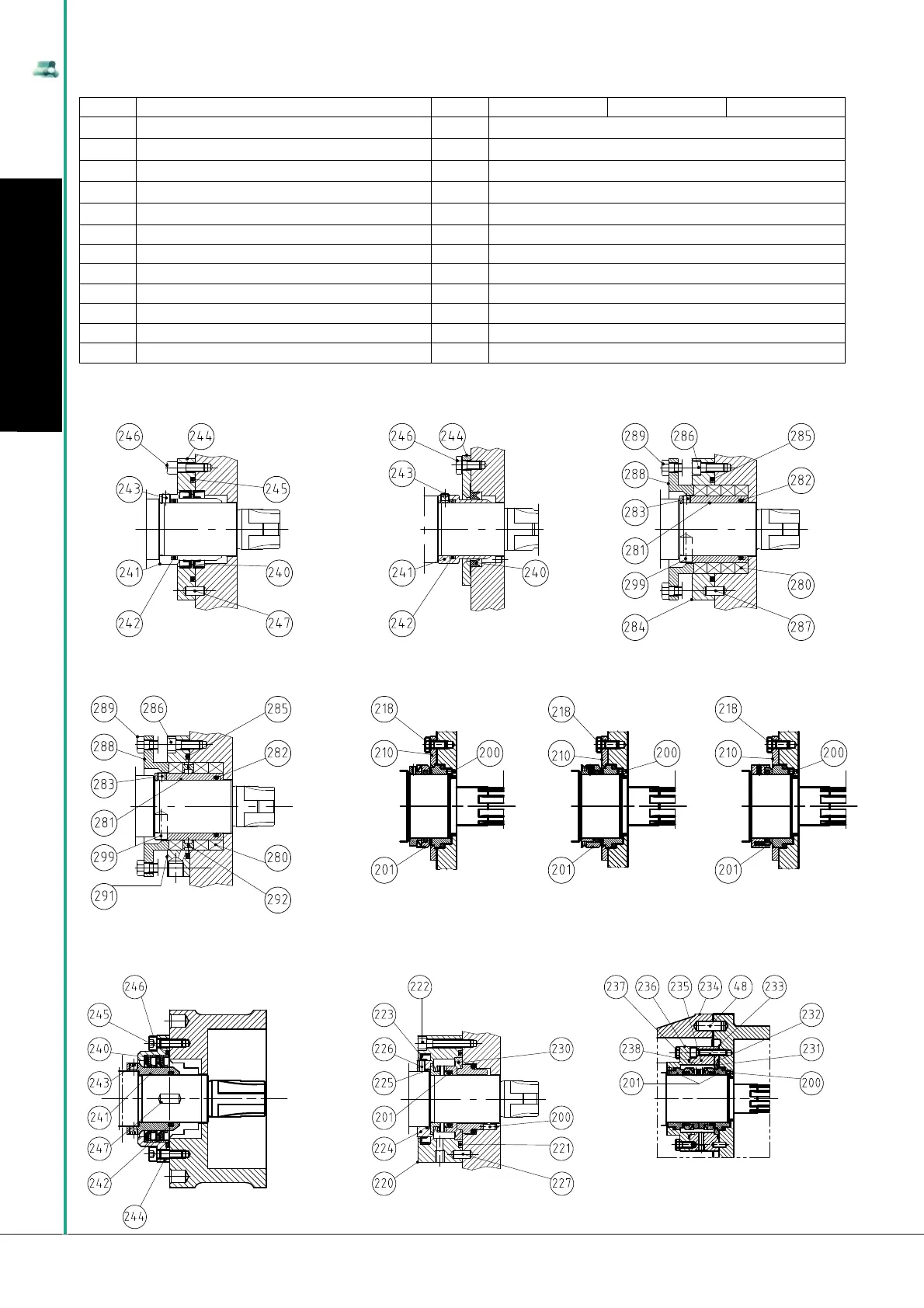

7.1.2.3 B105 B110 B115: Seals section drawings
UM LIP S1 LIP PACKING GLAND
PACKING GLAND WITH LIQUID BARRIER SINGLE MECHANICAL SEAL
“U7K“ “KL2A“ “C5E“
SINGLE FLUSHED MECHANICAL SEAL
HN DOUBLE LIP “KL2A”, “U7K“, “C5E“ DOUBLE MECHANICAL SEAL
