DP20 Economical Multisignal Meter Instruction Manual
Potenometer

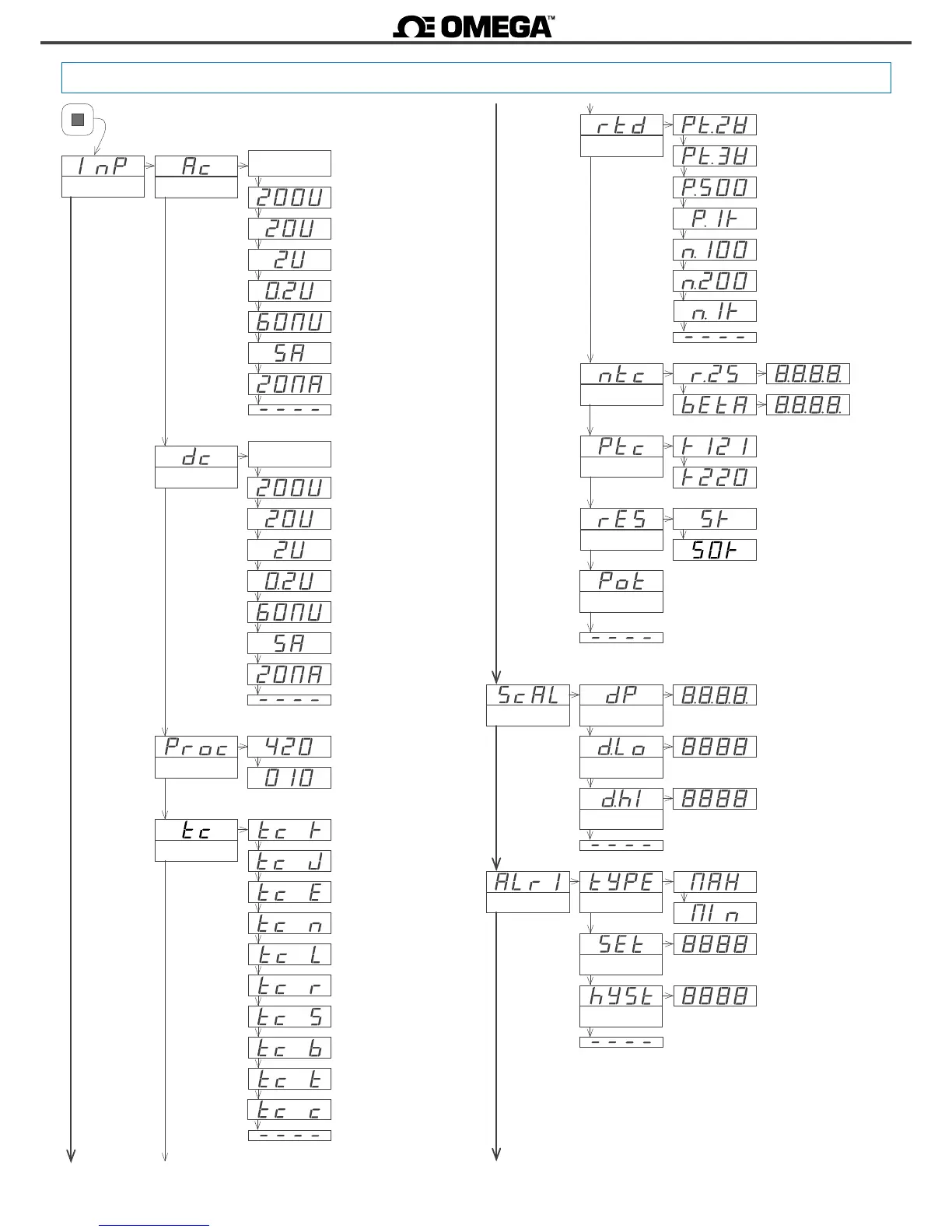

1.30 Full conguraon menu
Press ‘SQ’ (<) for 1 second to access the ‘Conguraon menu’. See
secon
1.28 for a descripon of each menu entry.
Input
AC signals
600 Vac range
200 Vac range
20 Vac range
2 Vac range
200 mVac range
60 mVac shunt range
5 Aac range
20 mAac range
DC signals
±600 Vdc range
±200 Vdc range
±20 Vdc range
±2 Vdc range
±200 mVdc range
±60 mVdc range
±5 Adc range
±20 mAdc range
Process
4/20 mA range
0/10 Vdc range
Thermocouples
thermocouple K
thermocouple J
thermocouple E
thermocouple N
thermocouple L
thermocouple R
thermocouple S
thermocouple B
thermocouple T
thermocouple C
Scaling
Decimal point
Display Low
Display High
RTD probes
Pt500
Pt1000
Ni100
Ni200
Setpoint
Hysteresis
Alarm typeAlarm 1
Ni1000
NTC probes
res.
at 25º
beta
Resistance
range 0 to 5 K
range 0 to 50 K
PTC probes
KTY 210 and 220 families
KTY 121 family
Pt100 a 2 hilos
Pt100 a 3 hilos
600U
600U
