2.5 Disassembly Instruction
You may need to open the unit for one of the following reasons:
• To wire relay connector. (Refer to Figure 2.8)
• To connect or replace the battery.
• To change S5 jumper. In the absence of AC power, and if S5 is installed, the LCD
Backlight and iServer Board will be on and running on the battery power. Refer to
Section 2.8.
Disconnect the power supply before proceeding.
Remove Cover as shown.

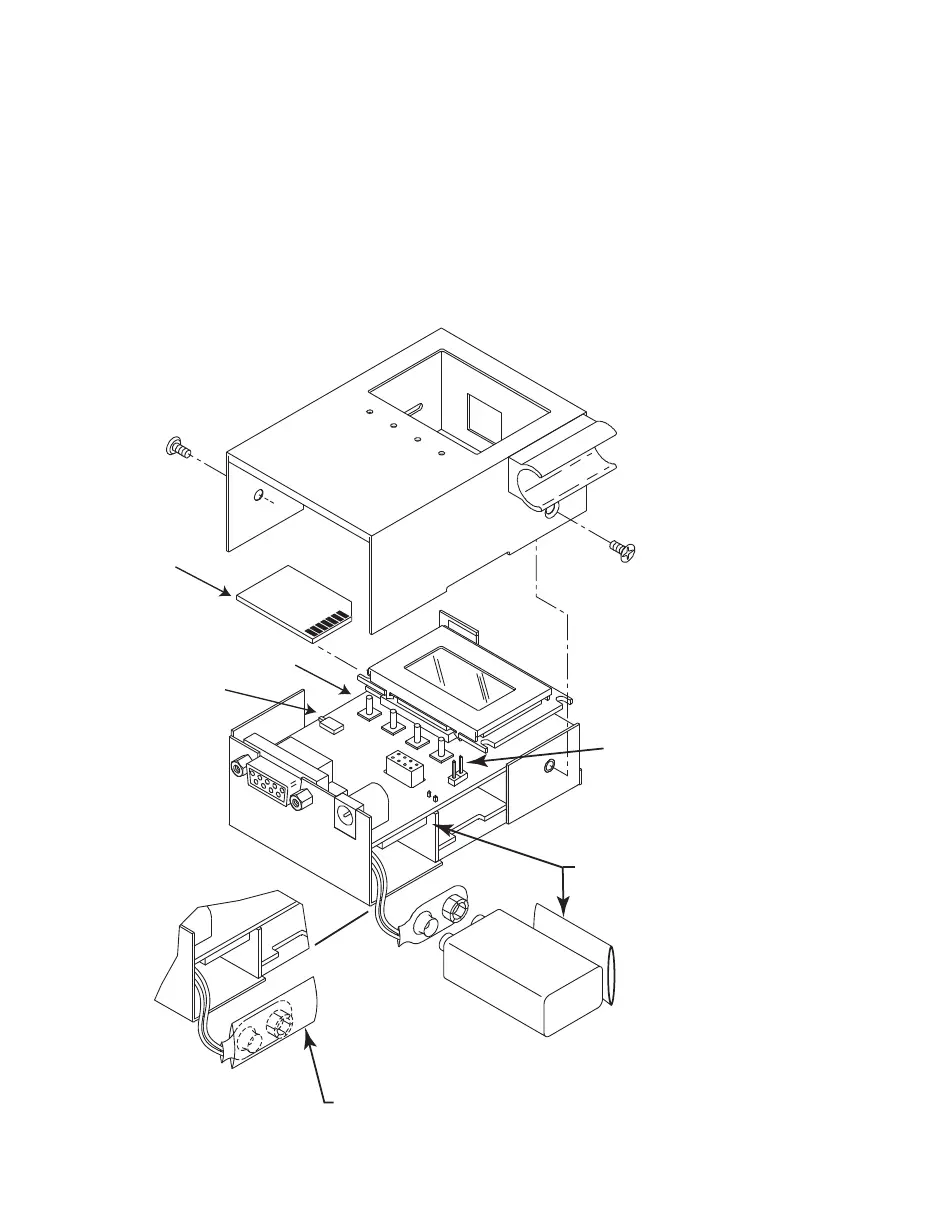

Figure 2.5 Opening the Unit
MOUNTING
SCREWS (2)
KEEP INSULATOR
COVER ON BATTERY
CLIP WHEN BATTERY
IS NOT BEING USED
JTAG
S5
COVER
TRAY
FLASH
CARD
REMOVE BATTERY CLIP
INSULATOR COVER AND
STORE WHERE SHOWN
WHEN 9V BATTERY IS
BEING USED.
RELAY
CONNECTOR
FLASH
RESET
SWITCH
S5 (WITH LONG PINS)
