Wiring (continued) Step Six

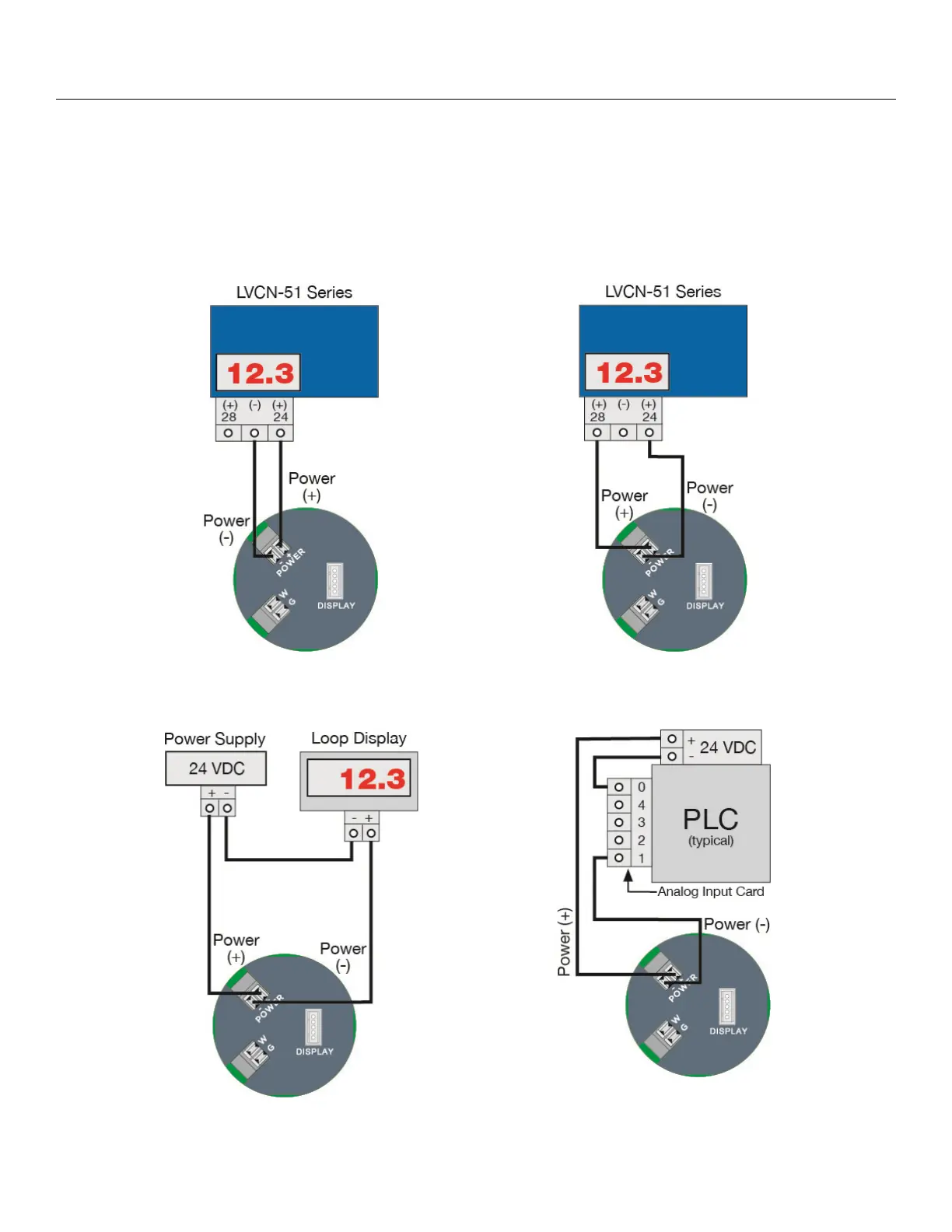

COMMON WIRING TO DISPLAYS, CONTROLLERS & PLC’S
Below is a quick review of wiring the LVU700 series to common display, controllers and PLC’s.
LVCN-51 Series
Level Controller
*JWA mode (Factory Setting)
LVCN-51 Series
Level Controller
*JWB mode
Generic Loop
Powered Display
Generic PLC
* Refer to the LVCN-51 Series, Level Controller manual for information on JWA mode and JWB mode settings
in the controller.
