Getting Started (continued) Step Two

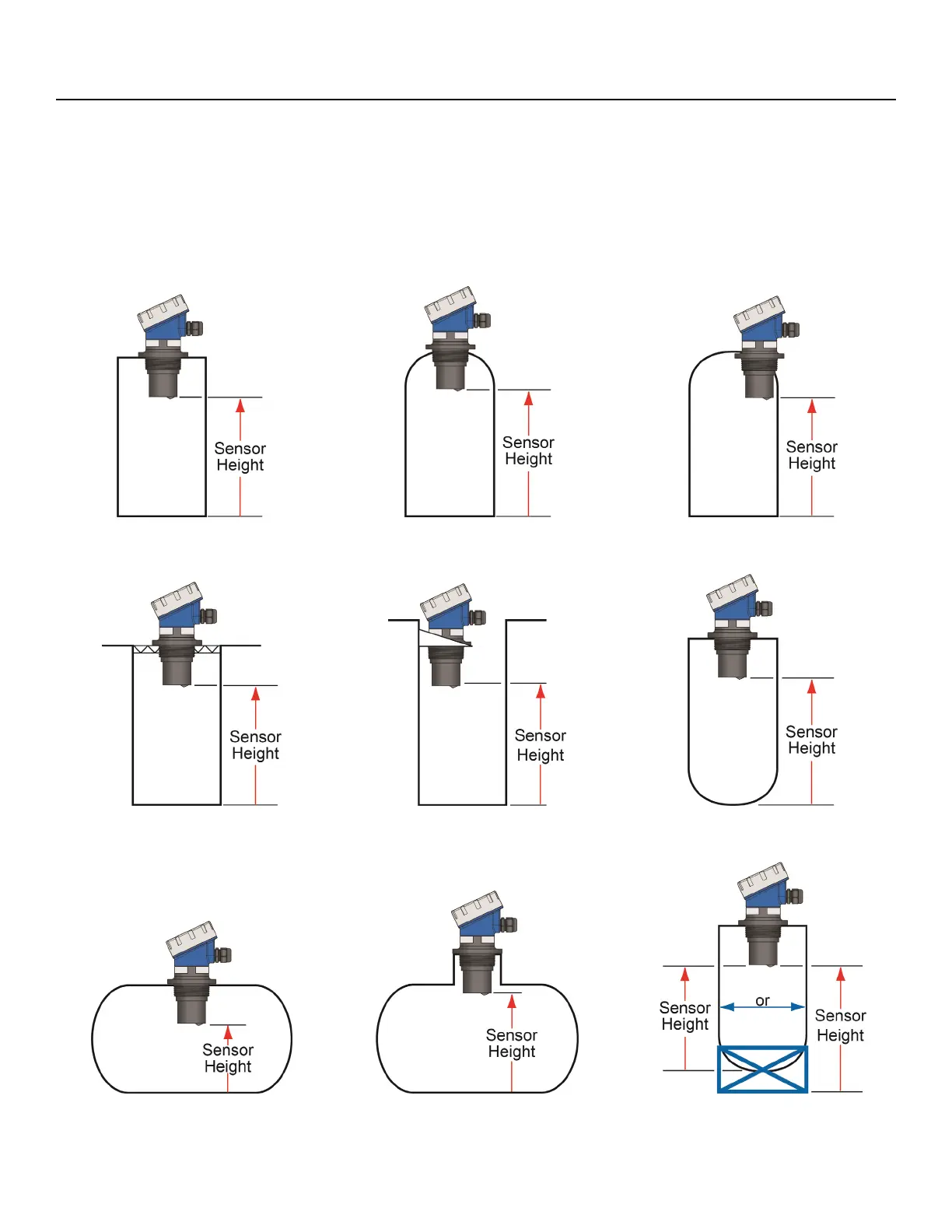

UNDERSTANDING SENSOR HEIGHT (HEIGHT)
This is a critical setting for LVU700 series. Sensor Height (SH) defines the location of the sensor from the
bottom of the tank. The value must take into account the shape of the tank and any risers, fittings, structures
or extensions associated with the tank or the installation (see examples below). The reference point for
definition of the Sensor Height is always the bottom of the mounting nut.
Simple Vertical Tank Dome Top Raises HEIGHT
Sensor Off-center
Changes HEIGHT
Simple Open Top Tank Sensor Extends into Sump
Cone Bottom
Elevates HEIGHT
Simple Horizontal Tank Riser Elevates HEIGHT
Mounting Fixture
Elevates HEIGHT
