Test Set CMC 156
20
4 Connectors and Interfaces
4.1 Connectors on the Front Panel
+
_
I
0
BINARY OUTPUT
4 internal floating binary outputs
routed out individually.
8-pole combination jack for outputs
and
.
(for assignment see the following)
VOLTAGE OUTPUT 1-3
CURRENT OUTPUT 1-3
VOLTAGE OUTPUT
VOLTAGE OUTPUT 1-3
Signals brought out via
internal amplifiers.
.
Combination jack for ,
20-pole combination jack for the
following connections:
- current measuring input
- voltage measuring input
- 10 binary inputs
(for assignment see the following)
BINARY INPUT
ANALOG INPUT
ANALOG INPUT
0..±20mA: DC current input
routed out individually.
0..±10V: DC voltage input
routed out individually.
BINARY INPUT
Binary inputs 1 .. 10 routed out
individually.
POWER
Mains switch.
CURRENT OUTPUT
CURRENT OUTPUT 1-3
Signals brought out via
internal amplifiers.
.
Warn display :
At least one phase has
more than 42 V.

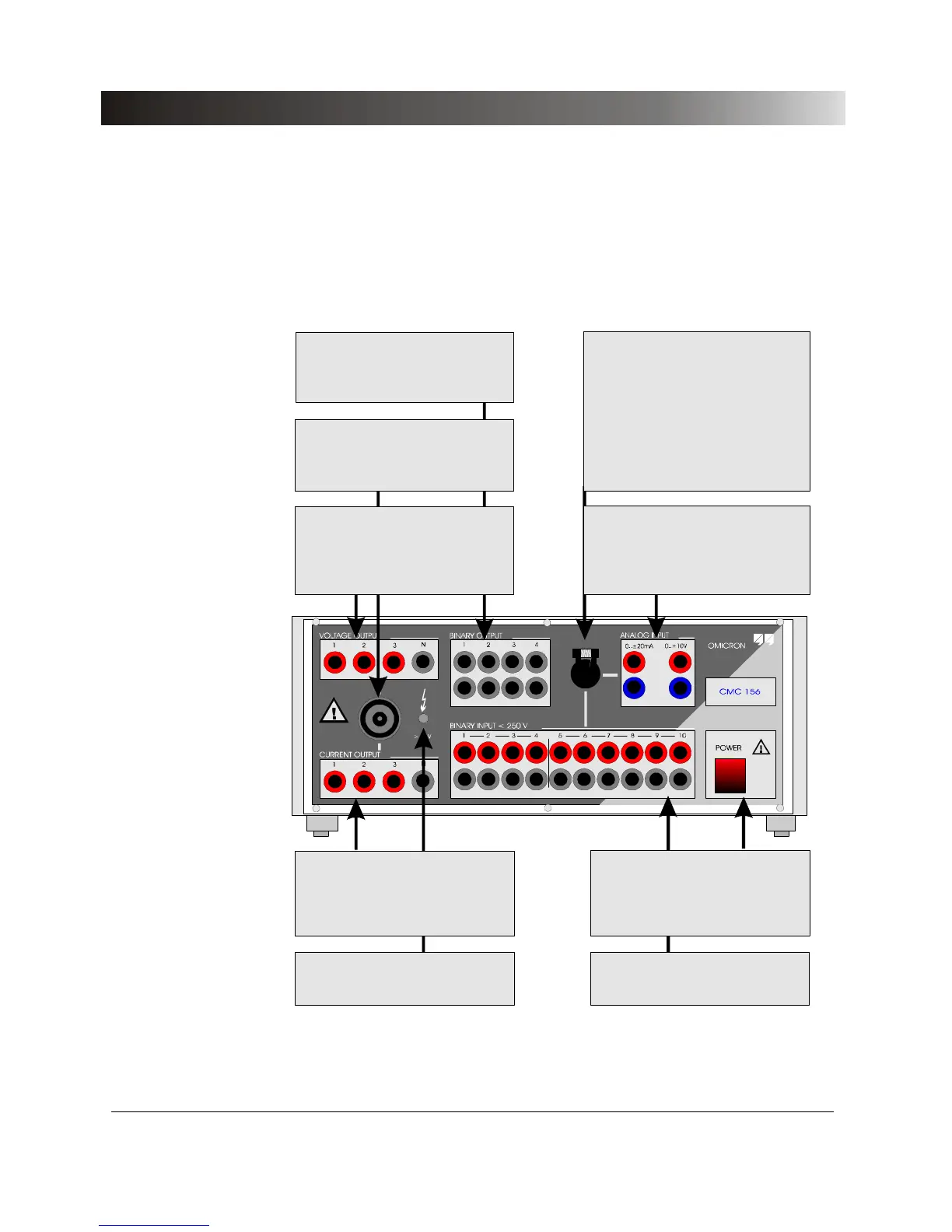

Figure 5 Front panel
