Test Set CMC 156
36
0
20
40
60
80
100
120
140
0,00 25,00 50,00 75,00 100,00 125,00
V (L-N) in Vrms
Power in V
A
3 x sym. guar.
3 x sym. typ.
L2 only guar.
L2 only typ.
DC L2 only typ

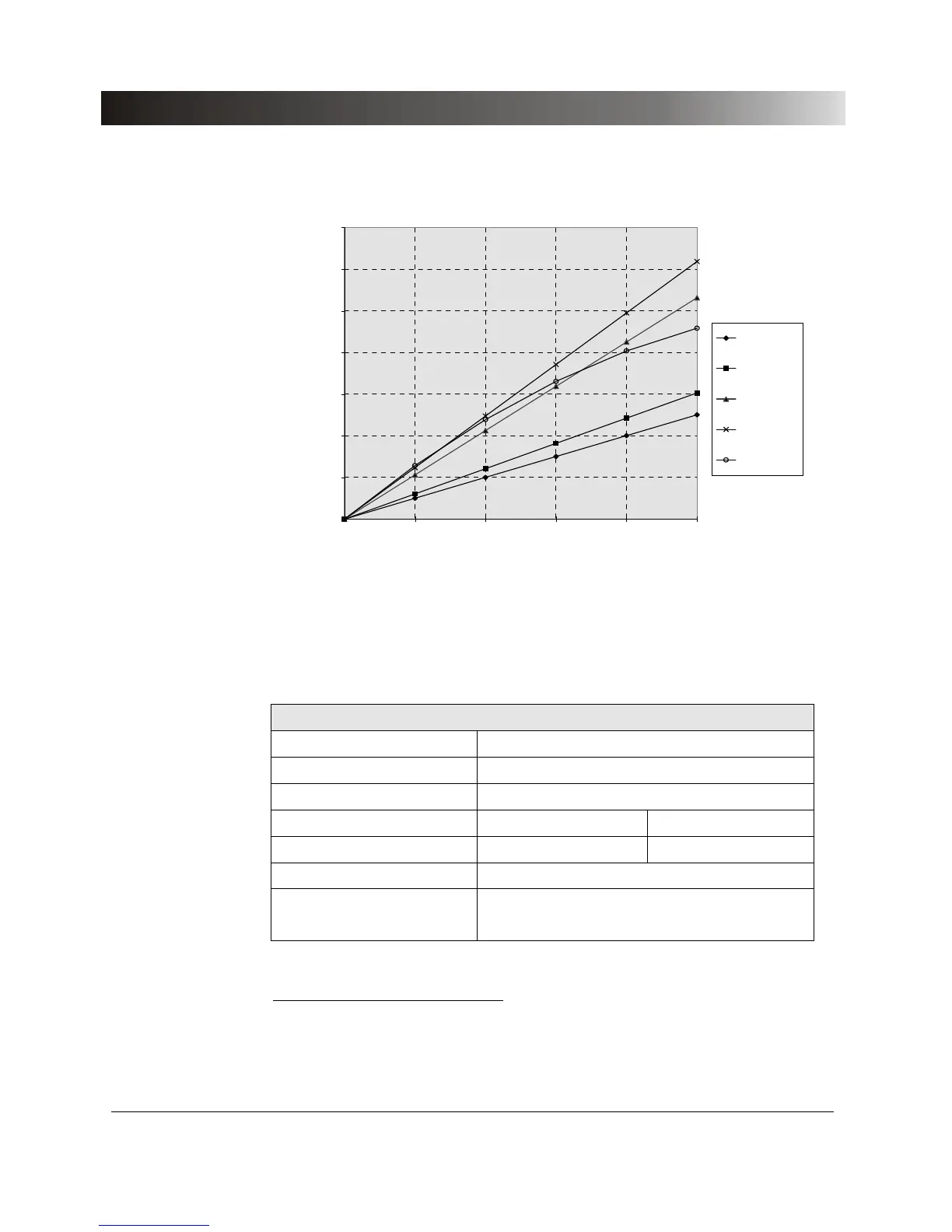

Figure 14 Typical (Ptyp) and guaranteed (Pmin) output power of the voltage
amplifiers1 with standard design
5.2.3 Interface for an External Amplifier ‘Gen. out 7-12’
6 outputs
Setting range 0 to 5 V
rms
Output current max. 2 mA
Resolution < 250 µV
Accuracy typ. error < 0.025 % guar. error < 0.05 %
Harmonic distortion
2
typ. < 0.015 % guar. < 0.05 %
Short-circuit protection Unlimited against GND_A.
Isolation SELV isolated to all other potential groups.
Electrically connected to ground.
Table 14 Interface Gen. out 7-12
1
To obtain the specified power, in the test object parameters file (.TYP) in the CMC software the
corresponding voltage has to be set.
2
Values at nominal voltage (5V), 50/60 Hz and 20 kHz measuring band width.
