Test Set CMC 156
28
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16

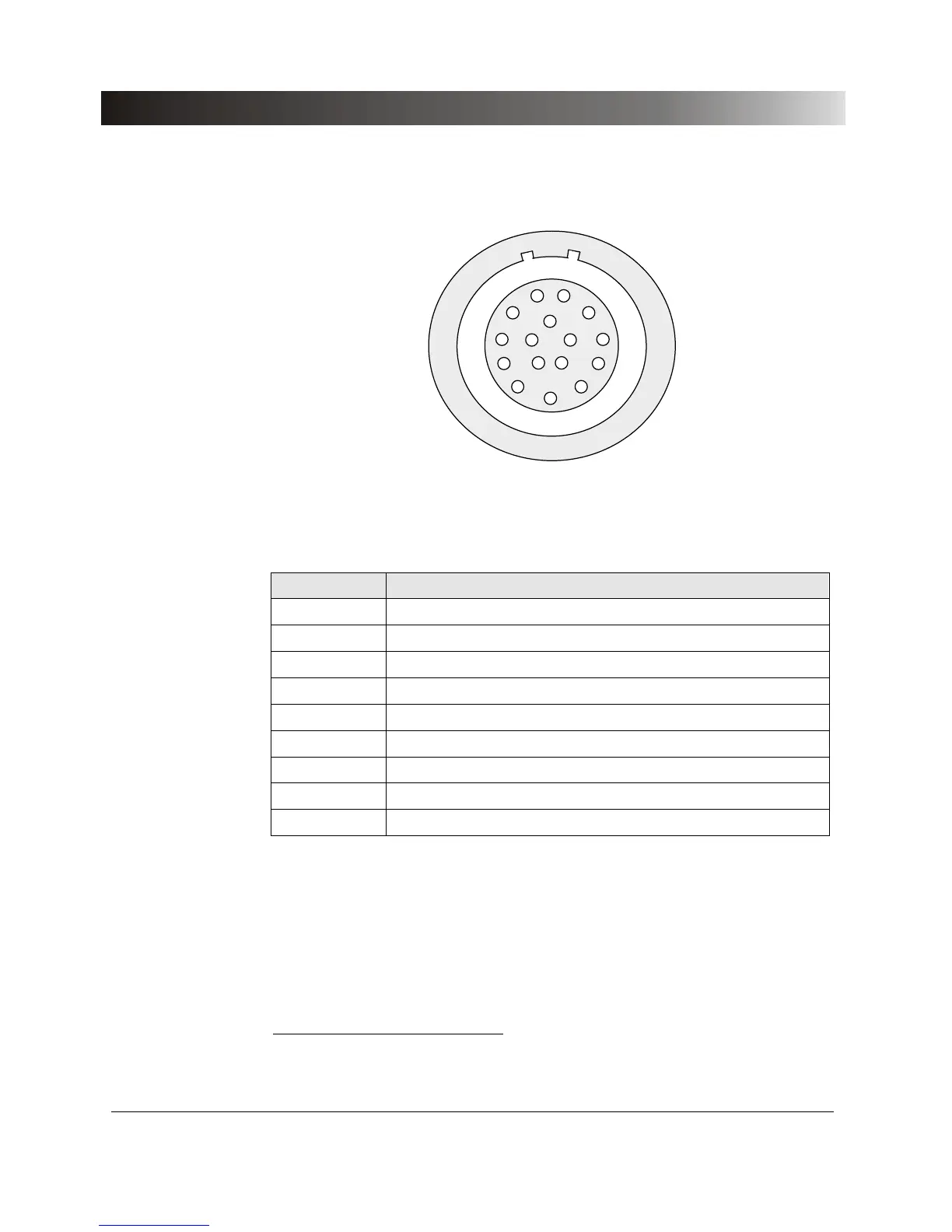

Figure 10 Plug for Interface "Gen. out 7-12" (lower 16-pole Lemo jack);
(view onto cable connection side)
Pin Function
1
Pin 1 Gen. Out 7
Pin 2 Gen. Out 8
Pin 3 Gen. Out 9
Pin 4 GND_A (electrically connected to ground)
Pin 5 Gen. Out 10
Pin 6 Gen. Out 11
Pin 7 Gen. Out 12
Pin 8-16 for internal use
Housing shield connection
Table 7 Assignment
1
Gen. out 7-9 and Gen. out 10-12 each form a selectable triple (voltage or current system).
