Appendix
65
Figure 26 Connection cables, plugs (continued)
*)

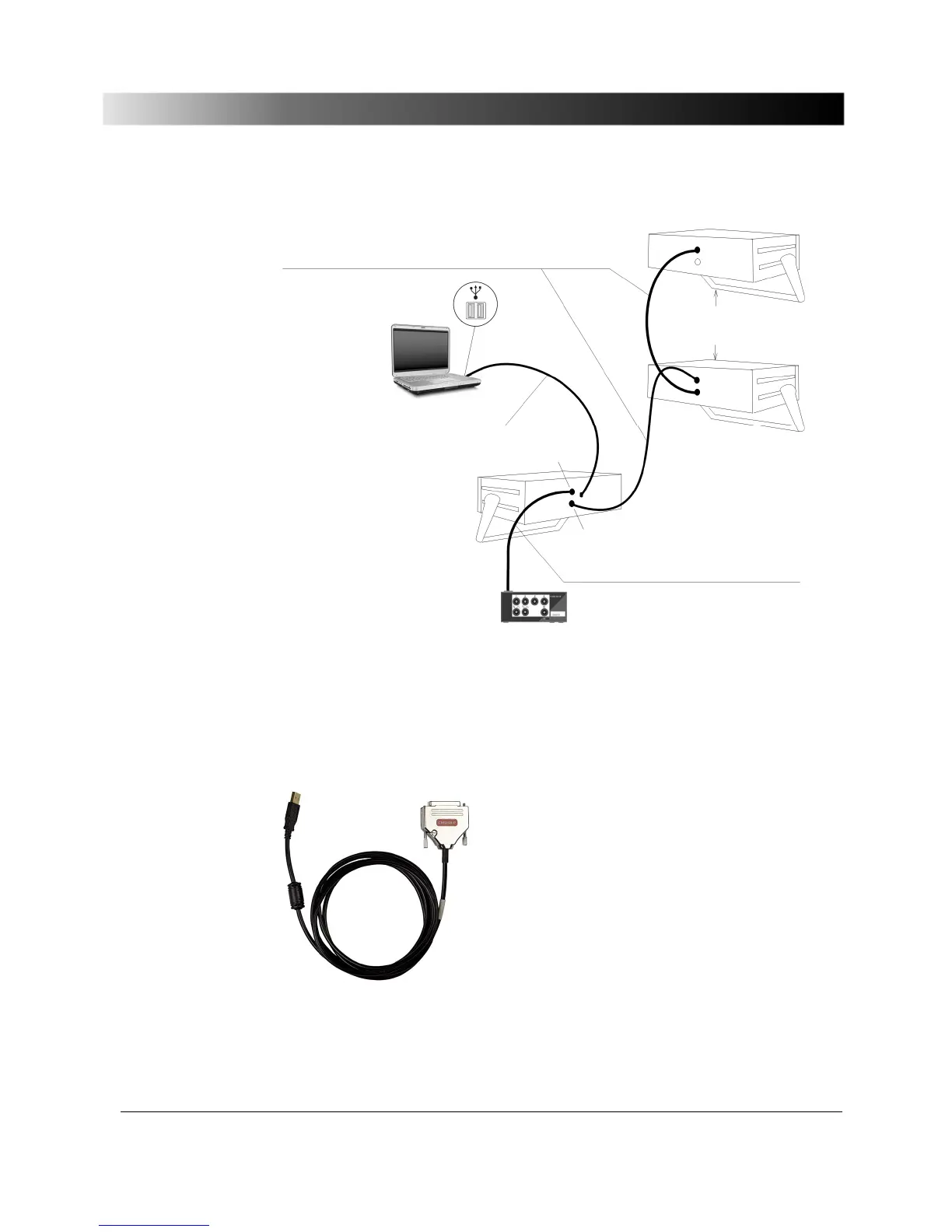

CMUSB-P converter (VEHZ2007):
Connecting cable CMC 156 – amplifier VEHK0003
Amplifier
(CMA, CMS)
Notebook
(USB)
Connection to computer via
CMUSB-P converter VEHZ2007
*)
CMC 156
A
mpl. in
A
mpl. in
A
mpl.out
ext. Interf.
Gen. out 7 - 12
Connecting cable CMC 156 – CMLIB B
VEHK0003
CMLIB B
