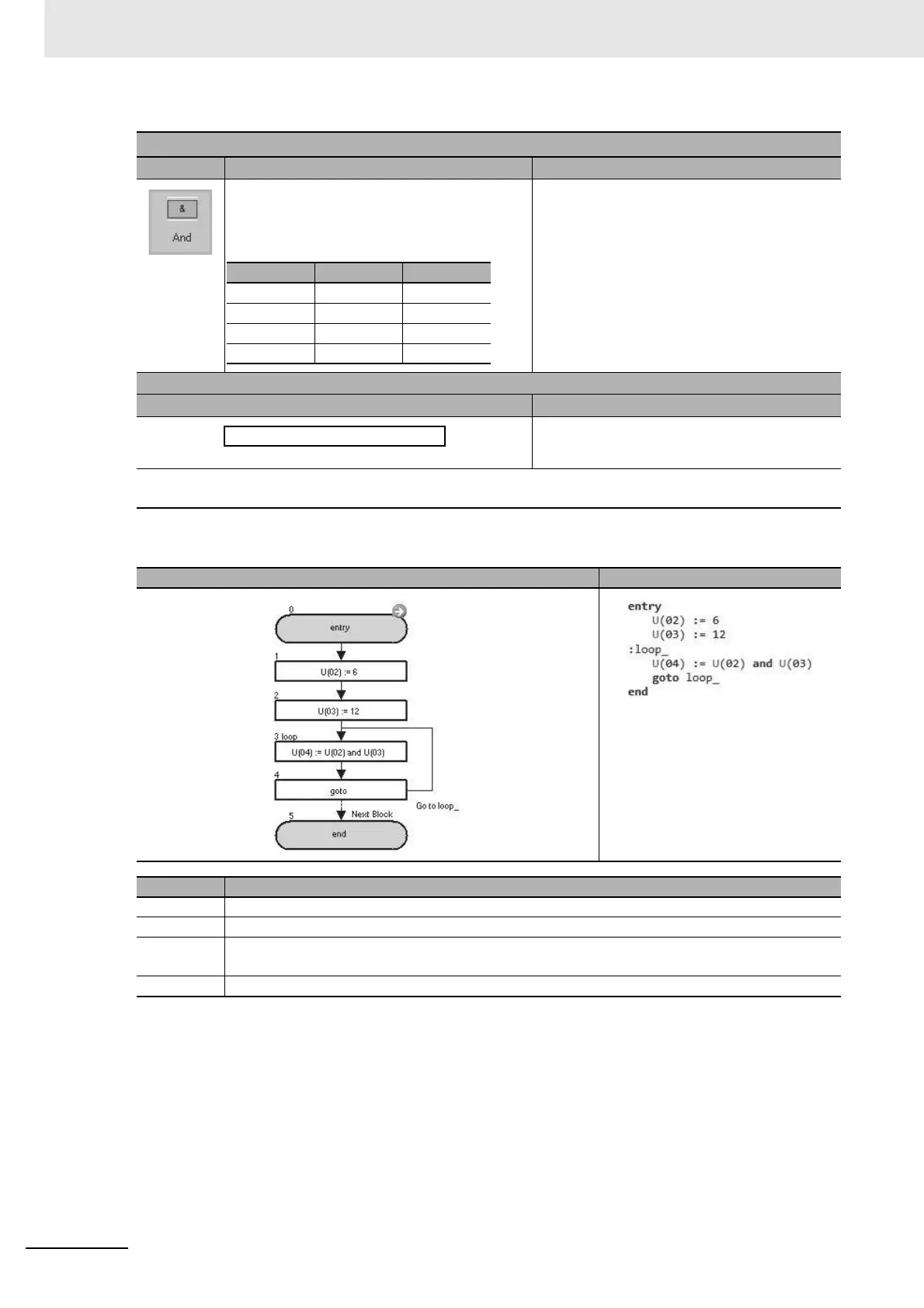

6 DriveProgramming Commands
6 - 30
DriveProgramming User’s Manual (I622-E1)
Example
And (Logical AND)
Command Description Argument
Logical AND on <value 1> and <value 2> in
binary format
and (Logical AND)
Result: any variable
Value 1: any variable or constant
(range −128 to 127)
Value 2: any variable or constant
(range −2,147,483,648 to 2,147,483,647)
Format
Flowchart method Text language method
↓
<result> : = <value 1> and <value 2>
Note If an overflow or underflow occurs, the DriveProgramming detects it as an error. Take neces-
sary measures in the application so that they do not occur.
Flowchart Text
Block number
Operation
1 Assigns 6 to U(02).
2 Assigns 12 to U(03).
3 Assigns 4 (binary: 00000100), which is the result of logical AND on 6 (U(02) binary: 00000110) and
12 (U(03) binary: 00001100), to U(04).
4 Jumps to the block 3: loop_ unconditionally.
Value 1 Value 2 Result
000
010
100
111
<result> : = <value 1> and <value 2>
