6-6 I/O Control Commands

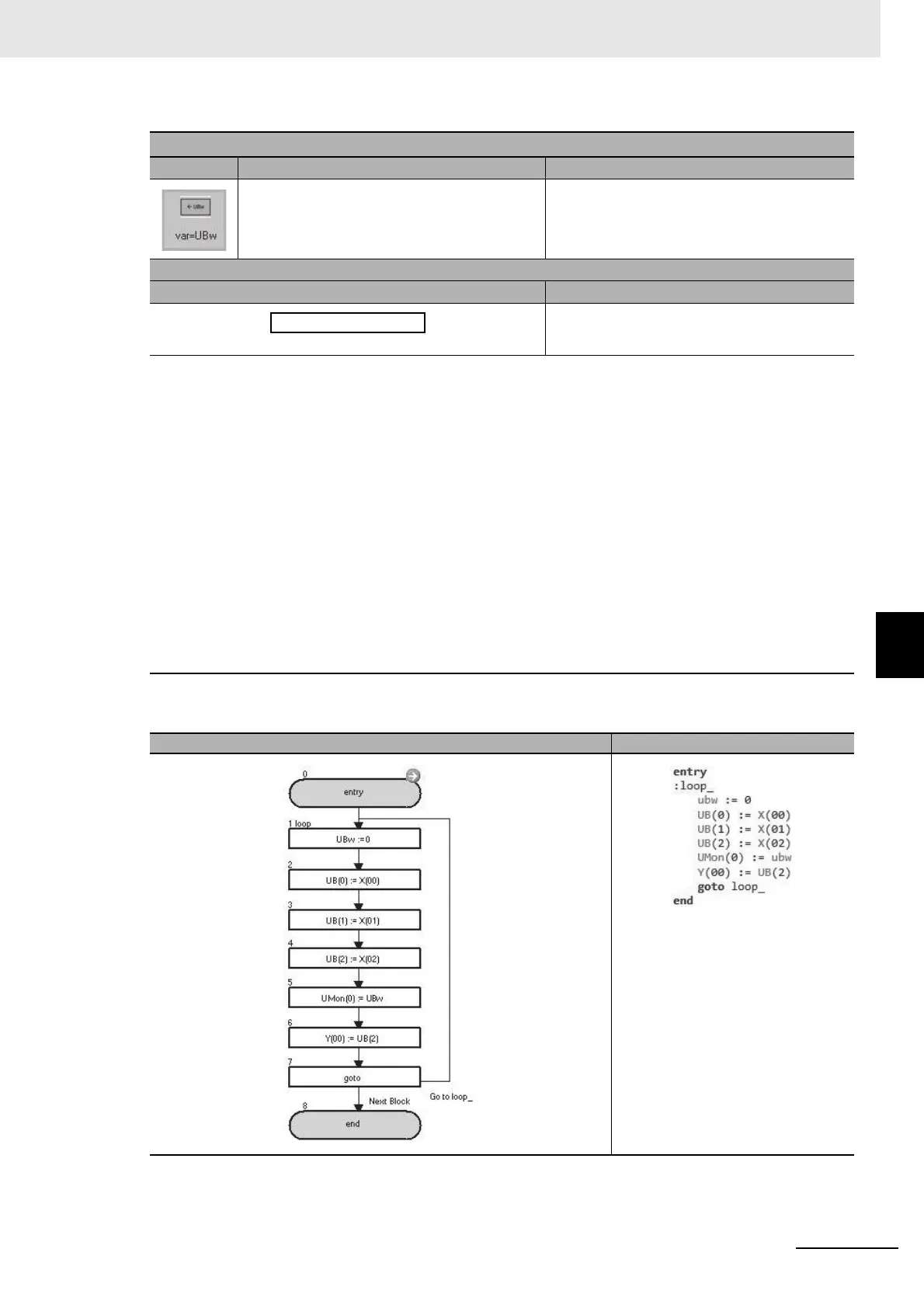

 Example

In the above example, the status of X(00) to X(02) is monitored with the parameter UMon(0) (db-08),

and X(02) is output to Y(00).

var = UBw

Command Description Argument

Assigns the value of the internal user contact to

<variable> in units of words.

Variable: any variable

Format

Flowchart method Text language method

↓

<variable> : = UBw

Note When the data is assigned in units of words, zero is read out for the unused upper byte. If

there is any setting, the setting is ignored.

UB(0) to UBw = 1 (bit 0)

UB(1) to UBw = 2 (bit 1)

UB(2) to UBw = 4 (bit 2)

UB(3) to UBw = 8 (bit 3)

UB(4) to UBw = 16 (bit 4)

UB(5) to UBw = 32 (bit 5)

UB(6) to UBw = 64 (bit 6)

UB(7) to UBw = 128 (bit 7)

UB(8) to UBw = 256 (bit 8)

UB(9) to UBw = 512 (bit 9)

UB(10) to UBw = 1024 (bit 10)

UB(11) to UBw = 2048 (bit 11)

UB(12) to UBw = 4096 (bit 12)

UB(13) to UBw = 8192 (bit 13)

UB(14) to UBw = 16384 (bit 14)

UB(15) to UBw = 32768 (bit 15)

Flowchart Text

<variable> : = UBw
