81

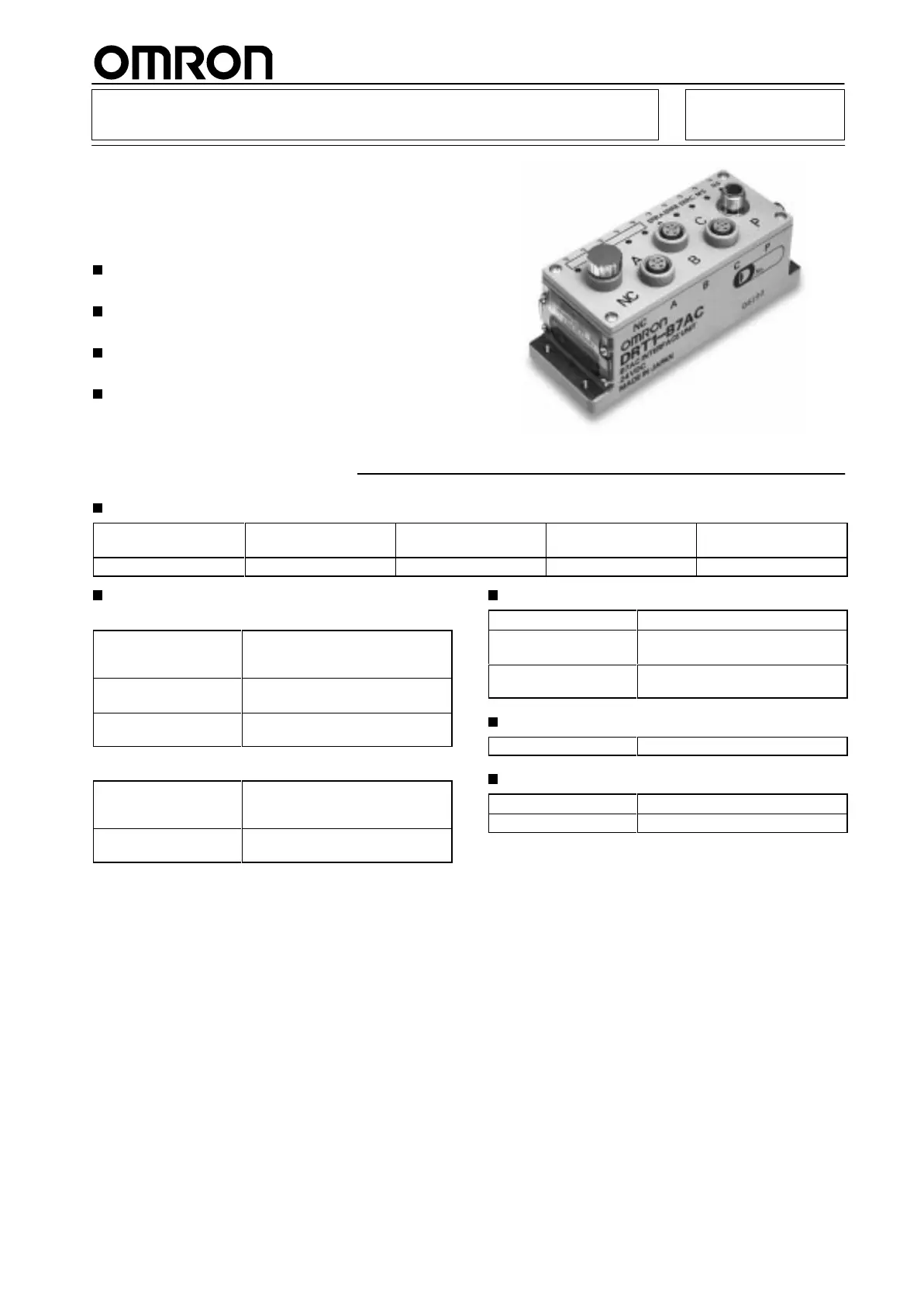

B7AC Interface Terminal (10 Inputs × 3)
DRT1-B7AC
An Interface Terminal that Groups Link
Terminals with Sensor I/O Connectors
(10 Input Points × 3) and Enables
Connection to DeviceNet
Branching to 3 B7AC Link Terminals possible with
just a single Unit.
Connectors eliminate the need for mounting
accessories.
High environment resistance achieved with dust-
tight, drip-proof structure (IP66).
Compact dimensions: 135 × 51 × 56 mm (W × D ×
H).
Ordering Information
Product List
Name Number of ports I/O connection
configuration
Number of I/O points Model
B7AC Interface T erminal 3 F A connector 3 sets of 10 DRT1-B7AC
Applicable Connectors
For Transmission Path (Connector No. P)
XS2G-D4jj Assembling connector
(crimp-style/solder-type/screw-type)
plug
XS2H-D421-jjj Cable with a connector (plug) at
one end
XS2W-D42j-jjj Cable with connectors at both ends
(socket and plug)
For Power Supply Line (Connector No. P)
XS2C-D4jj Assembling connector
(crimp-style/solder-type/screw-type)
socket
XS2F-D42j-j80 Cable with a connector at one end
(socket)
DeviceNet Connecting Cables
DCA1-5CNjjW1 Cable with connectors at both ends
DCA1-5CNjjF1 Cable with a connector (socket) at
one end
DCA1-5CNjjH1 Cable with a connector (plug) at
one end
DeviceNet T-branch Connectors
DCN2-1 Shielded T -branch connector
Terminating Resistors
DRS2-1 Plug-type terminating resistor
DRS2-2 Socket-type terminating resistor
