4 Maintenance and Inspection
4-2 Replacing the battery
● Replacement battery pack
BA100R: Model BAB100R

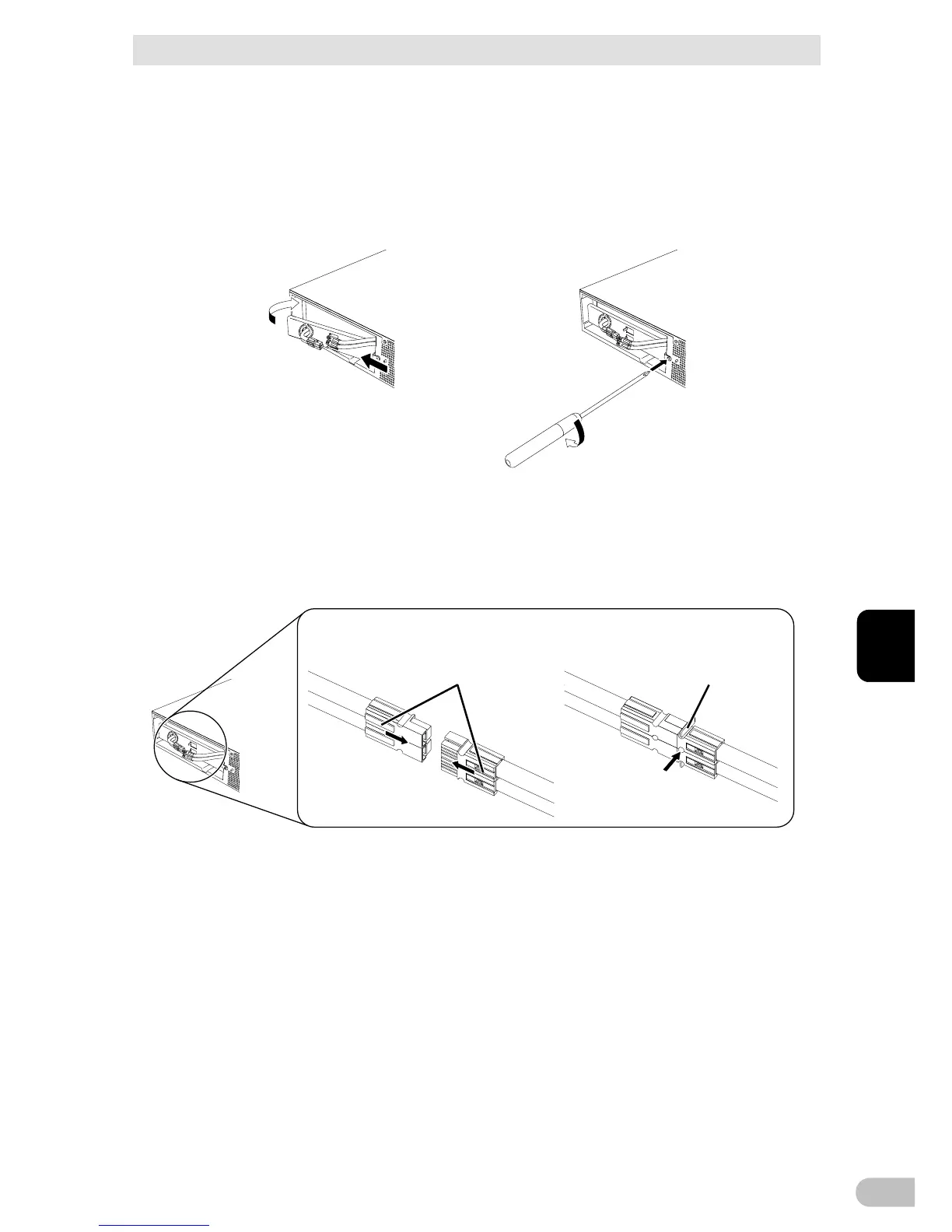

6. Attach the plate cover in order of (1 to (2.
Use a screwdriver to securely tighten (clockwise) the screw you removed. (3
Do not pinch the cable with the plate cover.
2
1
Tighten the screw
3
7. Insert the battery connector until it is locked. (1
Install the battery cable in the cable holder. (2
Note: You may hear a “pop” sound when you connect the battery if it is replaced after the unit’s
operation is stopped, but this sound is not abnormal.
1 2
Enlarged view of the connector
Insert the connector’s
groove into the holder
Connect by
holding here
