Wiring Section 5-3
Connecting to
Connector-Terminal Block Conversion Units or I/O Terminals
Basic I/O Units with Connectors can be connected to OMRON Connector-Ter-
minal Block Conversion Units or OMRON I/O Terminals. Refer to CJ-series
32/64-point Basic I/O Units with Connectors on page 172 for a list of models.

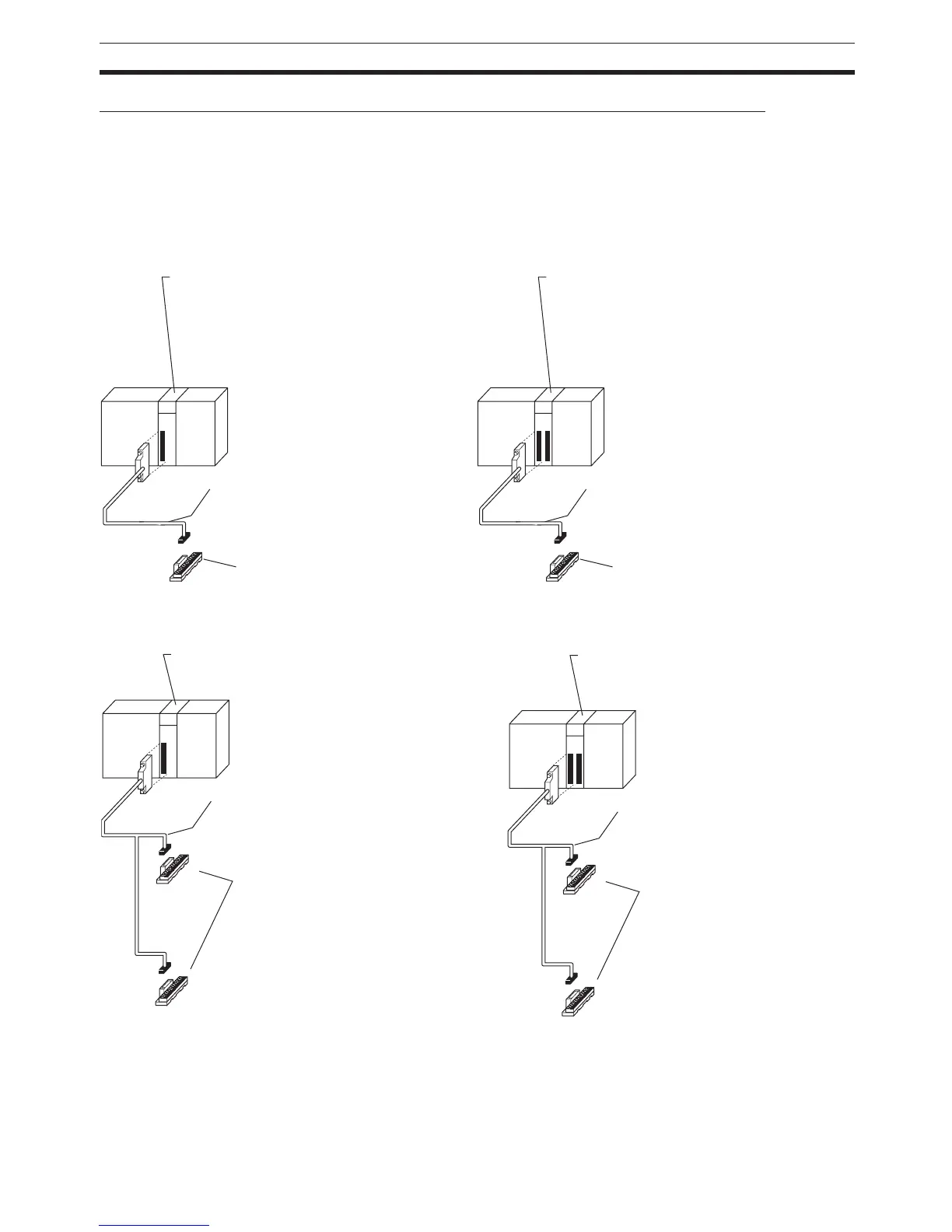

Connecting to Terminal Blocks
The following Connecting Cables and Connector-Terminal Block Conversion
Units are required to connect to terminal blocks.
CJ-series 32-point Basic I/O Units
CJ1W-ID231 (Input Unit, Fujitsu connector)
CJ1W-OD231 (Output Unit, Fujitsu connector)
CJ1W-ID232 (Input Unit, MIL connector)
CJ1W-OD232 (Output Unit, MIL connector)
CJ1W-OD233 (Output Unit, MIL connector)
Connecting Cable
XW2Z-@@@B (Fujitsu connector)
XW2Z-@@@K (MIL connector)
Connector-Terminal Block Conversion Unit
XW2B-40G4
XW2B-40G5
XW2D-40G6
XW2D-40G6-RF (CJ1W-ID231 only)
XW2D-40G6-RM (CJ1W-ID232 only)
CJ-series 64-point Basic I/O Units
CJ1W-ID261 (Input Unit, Fujitsu connector)
CJ1W-OD261 (Output Unit, Fujitsu connector)
CJ1W-ID262 (Input Unit, MIL connector)
CJ1W-OD262 (Output Unit, MIL connector)
CJ1W-OD263 (Output Unit, MIL connector)
Connecting Cable
XW2Z-@@@B (Fujitsu connector)
XW2Z-@@@K (MIL connector)
Connector-Terminal Block Conversion Unit
XW2B-40G4
XW2B-40G5
XW2D-40G6
XW2D-40G6-RF (CJ1W-ID261 only)
XW2D-40G6-RM (CJ1W-ID262 only)
Two sets
required.
CJ-series 32-point Basic I/O Units
CJ1W-ID231 (Input Unit, Fujitsu connector)
Connecting Cable
XW2Z-
@@@D (Fujitsu connector)
Connector-Terminal Block Conversion Unit
XW2C-20G5-IN16
Two sets
required.
CJ-series 64-point Basic I/O Units
CJ1W-ID261 (Input Unit, Fujitsu connector)
Connecting Cable
XW2Z-@@@D (Fujitsu connector)
Connector-Terminal Block
Conversion Unit
XW2C-20G5-IN16
