Omron CJ1G/H-CPU series User Manual

248
Wiring Section 5-3

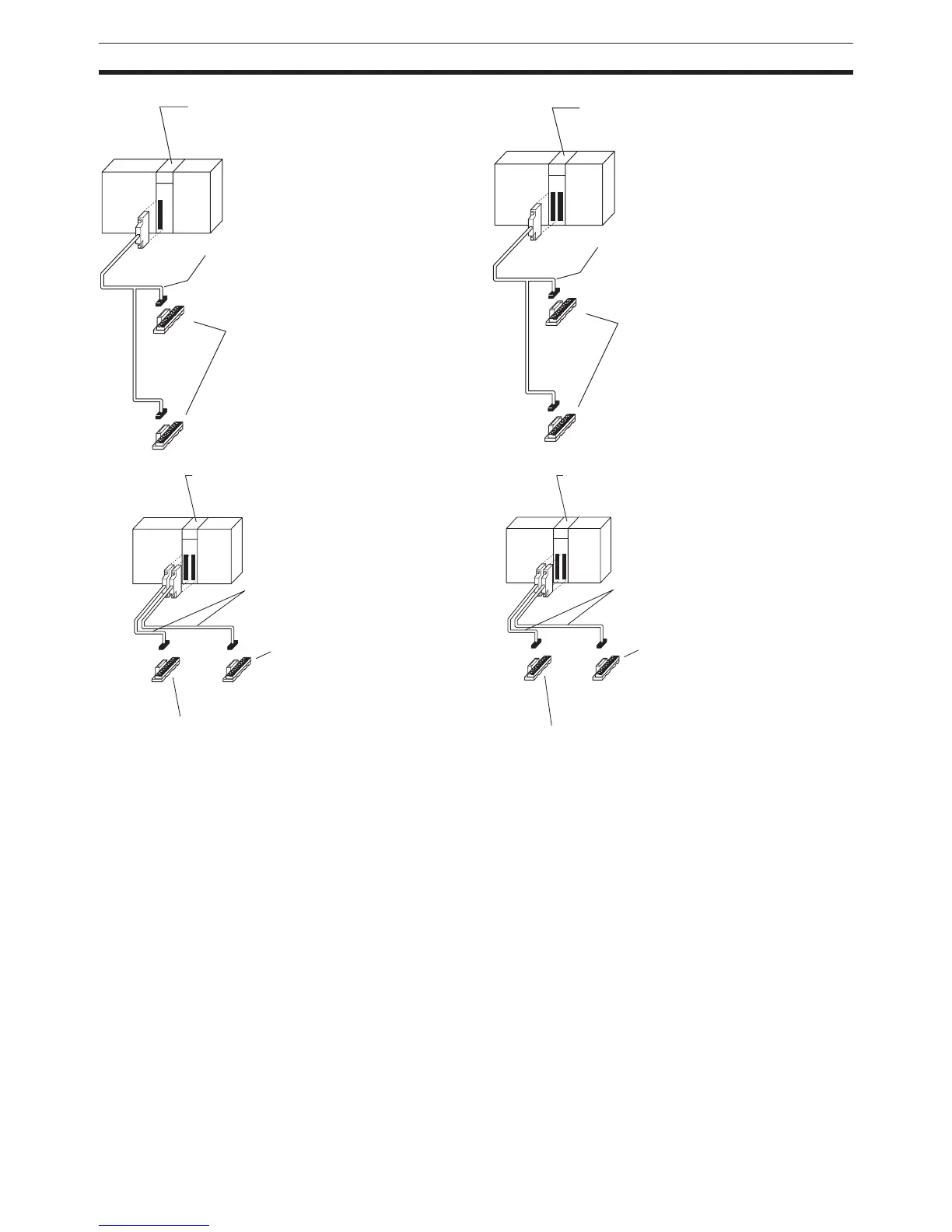

CJ-series 32-point Basic I/O Units
CJ1W-ID232 (Input Unit, MIL connector)
CJ1W-OD232 (Output Unit, MIL connector)
CJ1W-OD233 (Output Unit, MIL connector)
Connecting Cable
XW2Z-@@@N (MIL connector)
Connector-Terminal Block Conversion Unit
XW2C-20G5-IN16 (CJ1W-ID232 only)
XW2C-20G6-IO16
CJ-series 64-point Basic I/O Units
CJ1W-ID262 (Input Unit, MIL connectors)
CJ1W-OD262 (Output Unit, MIL connectors)
CJ1W-OD263 (Output Unit, MIL connectors)
Connecting Cable
XW2Z-@@@N (MIL connector)
Connector-Terminal Block Conversion Unit
XW2C-20G5-IN16 (CJ1W-ID262 only)
XW2C-20G6-IO16
Two sets
required.
CJ-series 64-point Basic I/O Units (32 inputs/32 outputs)
CJ1W-MD261 (Mixed I/O Units, Fujitsu connectors,
24-V DC inputs/transistor outputs)
Connecting Cable
XW2Z-@@@B
Connector-Terminal Block Conversion Unit
XW2B-40G4
XW2B-40G5
XW2D-40G6
XW2D-40G6-RF16
Output
Input
Connector-Terminal Block Conversion Unit
XW2B-40G4
XW2B-40G5
XW2D-40G6
Note: Two sets of an XW2Z-@@@D Connecting Cable
and an XW2C-20G5-IN16 Connector-Terminal
Block Conversion Unit can also be used.
CJ-series 32-point Basic I/O Unit (16 inputs, 16 outputs)
CJ1W-MD231 (Mixed I/O Units, MIL connectors,
24-V DC inputs/transistor outputs)
Connecting Cable
XW2Z-@@@A
Connector-Terminal Block Conversion Unit
XW2B-20G4
XW2B-20G5
XW2D-20G6
XW2C-20G5-IN16
Output
Input
Connector-Terminal Block Conversion Unit
XW2B-20G4
XW2B-20G5
XW2D-20G6
