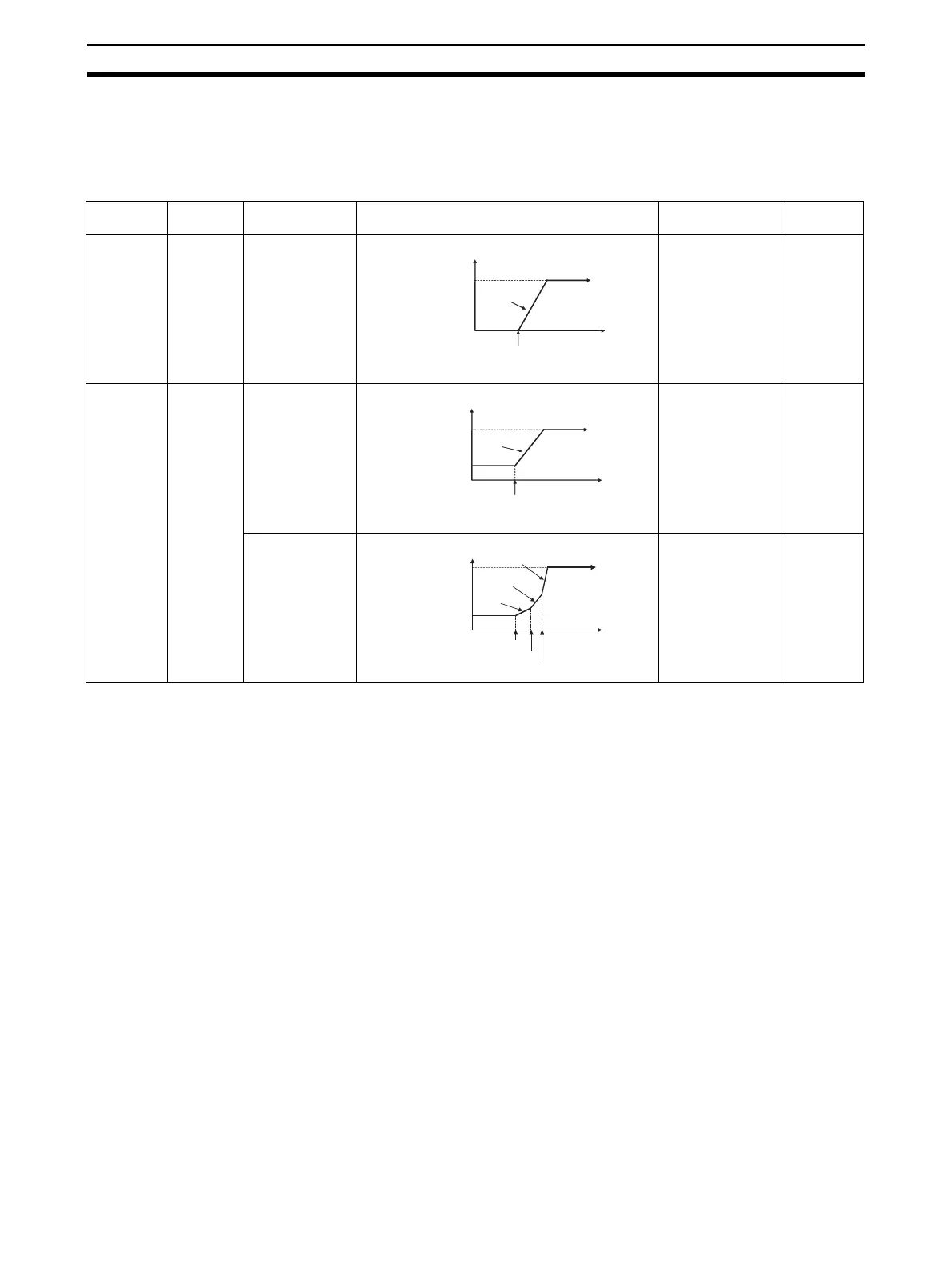

ACCELERATION CONTROL: ACC(888) Section 5-8
■ Continuous Mode Speed Control
Pulse output will continue until it is stopped from the program.
Note Pulse output will stop immediately if the CPU Unit is changed to PROGRAM
mode.
Operation Purpose Application Frequency changes Description Procedure/
instruction
Starting
pulse output
To output
with speci-
fied accel-
eration and
speed
Accelerating the
speed (frequency)
at a fixed rate
Outputs pulses and
changes the fre-
quency at a fixed
rate.
ACC(888)
(Continu-
ous)
Changing
settings
To change
speed
smoothly
Changing the
speed smoothly
during operation
Changes the fre-
quency from the
present frequency
at a fixed rate. The
frequency can be
accelerated or
decelerated.
ACC(888) or
SPED(885)
(Continu-
ous)
↓
ACC(888)
(Continu-
ous)
Changing the
speed in a
polyline curve
during operation
Changes the accel-
eration or decelera-
tion rate during
acceleration or
deceleration.
ACC(888)
(Continu-
ous)
↓
ACC(888)
(Continu-
ous)
Pulse frequency
Target frequency
Present frequency
Execution of
ACC(888)
Time
Acceleration/
deceleration
rate
Pulse frequency
Target frequency
Present frequency
Acceleration/
deceleration
rate
Execution of
ACC(888)
Time
Pulse frequency
Target frequency
Present frequency
Acceleration rate n
Acceleration
rate 2
Acceleration
rate 1
Execution of ACC(888)
Execution of ACC(888)
Execution of ACC(888)
Time
