Built-in Outputs Section 7-1

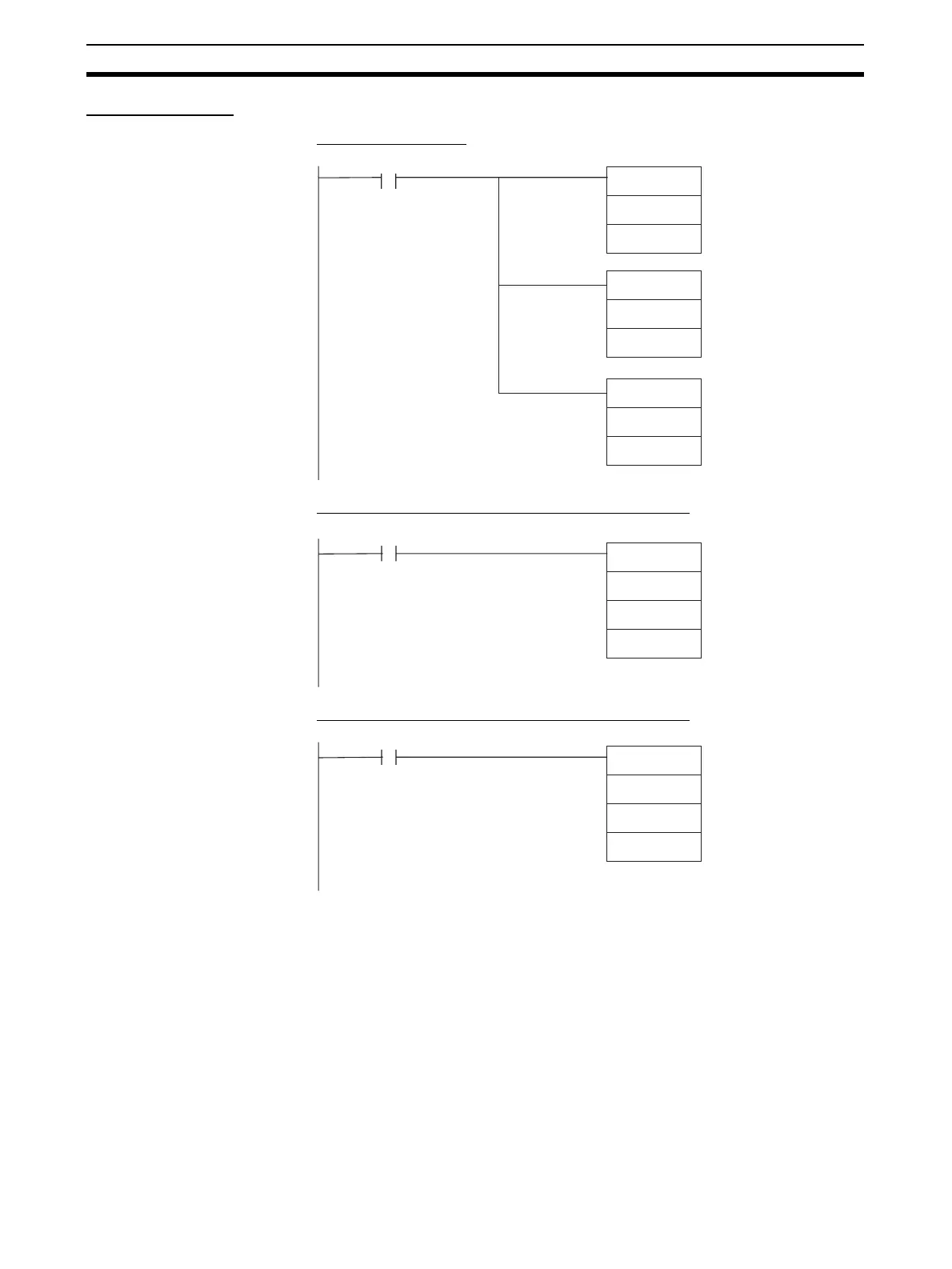

Ladder Program
Cyclic Task (Task 0)
Built-in Input 1 Interrupt Task (Interrupt Task 141)
Built-in Input 3 Interrupt Task (Interrupt Task 143)
#0
#0
7
#0
9
MOVL(498)
D00000
MSKS(690)
MSKS(690)
P_First_Cycle_Task
Task Start Flag
Used to clear the high-
speed counter PV.
Built-in interrupt input 1
Unmask
(Enable interrupts.)
Built-in interrupt input 3
Unmask
(Enable interrupts.)
INI(880)
#0011
#0002
D00000
P_On
Always ON Flag
High-speed
counter input 1
Change PV
New PV data
(Clears PV to 0.)
PRV(881)
#0011
#0000
D00010
Always ON Flag
High-speed
counter input 1
Read PV
PV destination
word
P_On
