196
Built-in Outputs Section 7-1
Preparation
PLC Setup Settings There are no settings that need to be made in the PLC Setup.

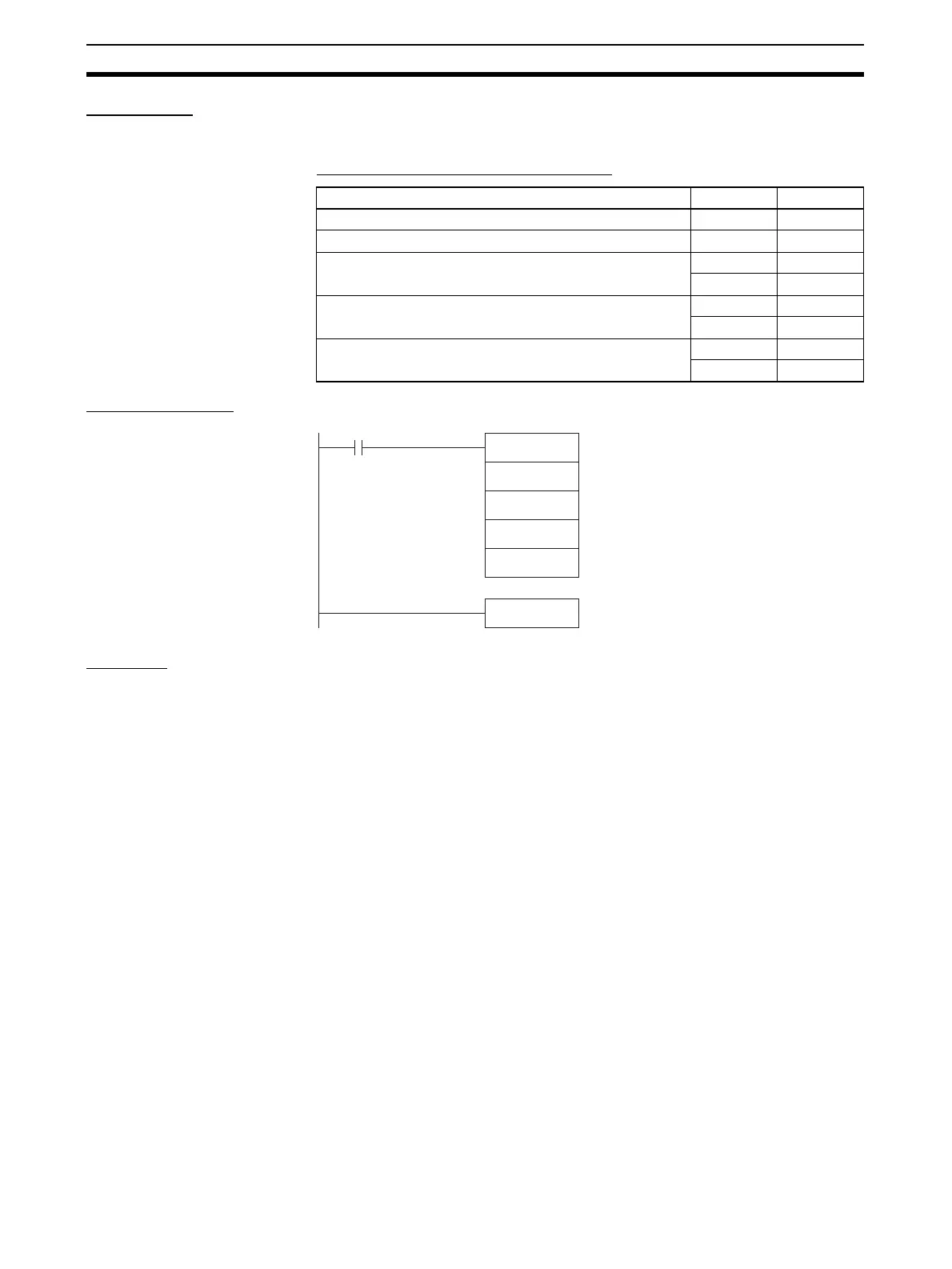

DM Area Settings PLS2(887) Settings (D00000 to D00007)
Ladder Program
Remarks
• Absolute pulses can be specified when the origin position has been deter-
mined.
• If a target frequency that cannot be reached has been set, the target fre-
quency will be reduced automatically, i.e., triangular control will be per-
formed. In some cases where the acceleration rate is substantially greater
than the deceleration rate, the operation won't be true triangular control.
The motor will be operated at a constant speed for a short time between
the acceleration and deceleration.
Setting details Address Data
Acceleration rate: 300 Hz/4 ms D00000 #012C
Deceleration rate: 200 Hz/4 ms D00001 #00C8
Target frequency: 50,000 Hz D00002 #C350
D00003 #0000
Number of output pulses: 600,000 pulses D00004 #27C0
D00005 #0009
Starting frequency: 100 Hz D00006 #0064
D00007 #0000
@PLS2 (887)
#0000
D00000
D00006
#1
END(001)
2960.06
Pulse output 1
Start input
Specifies CW/CCW output method,
CW side, and relative pulses
Target frequency
Number of pulses setting
Starting frequency
