Omron CJ1M-CPU22 User Manual

213
Built-in Outputs Section 7-1

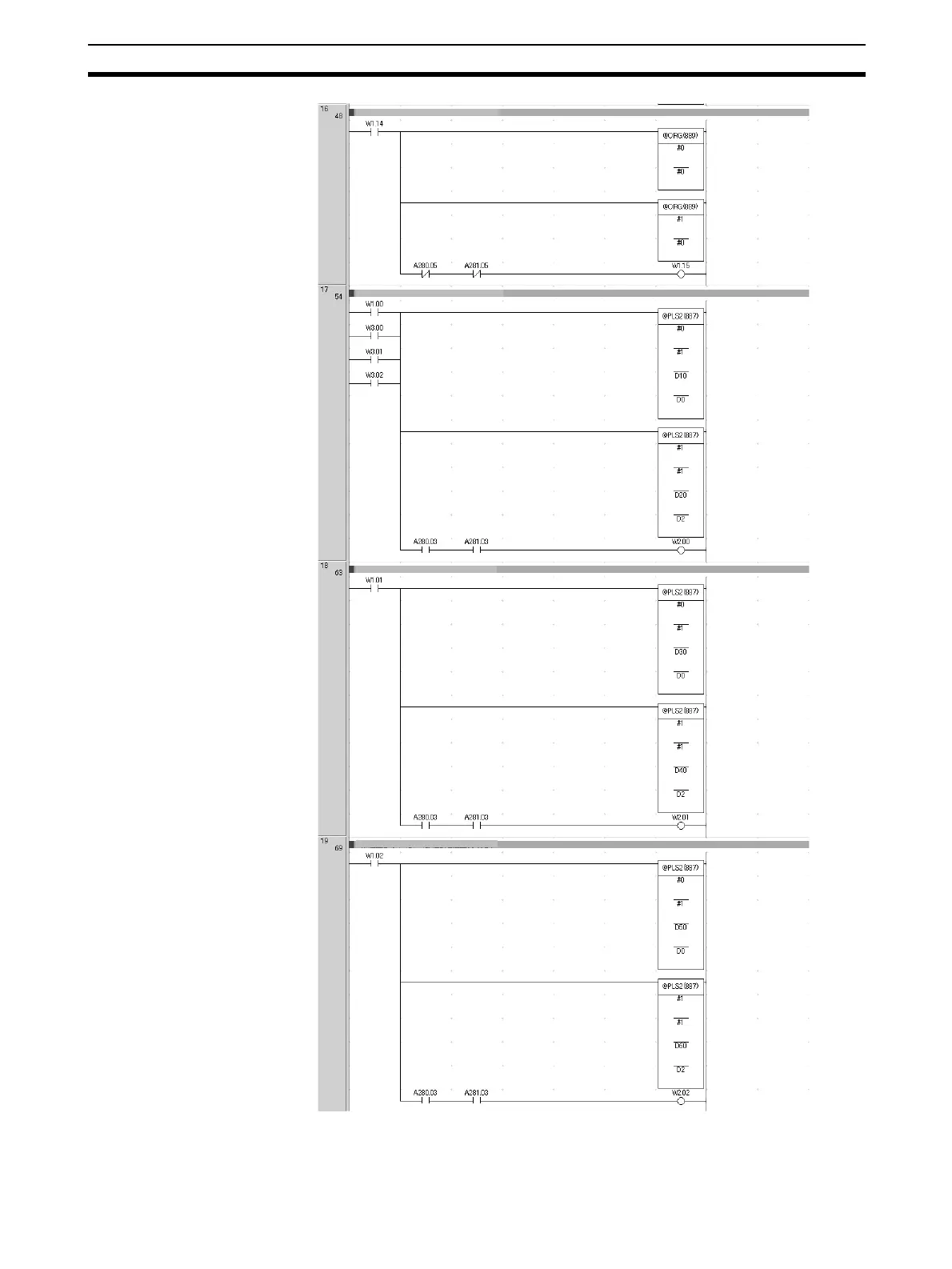

Origin Search Start and Completion for X and Y Axes
Origin search
start
No Origin Flag No Origin Flag
Positioning to A Start and Completion for X and Y Axes
Positioning to A
start
Positioning to A
start
Positioning to A
start
Positioning to A
start
Pulse output completed Pulse output completed
Positioning to B Start and Completion for X and Y Axes
Positioning to
B start
Pulse output completed Pulse output completed
Positioning to C Start and Completion for X and Y Axes
Positioning to
C start
Pulse output
completed
Pulse output
completed
Positioning to C completed
First word containing start frequency
First word containing parameters
Control data
Positioning
Port setting
First word containing start frequency
First word containing parameters
Control data
Positioning
Port setting
Positioning to B completed
First word containing start frequency
First word containing parameters
Control data
Positioning
Port setting
First word containing start frequency
First word containing parameters
Control data
Positioning
Port setting
Positioning to A completed
First word containing start frequency
First word containing parameters
Control data
Positioning
Port setting
First word containing start frequency
First word containing parameters
Control data
Positioning
Port setting
Origin search completed
Control data
Origin Search
Port setting
Control data
Origin Search
Port setting
