4-3 Fixed Allocations
4
4-3-2 Allocation Procedures
Fixed Allocations Area 2

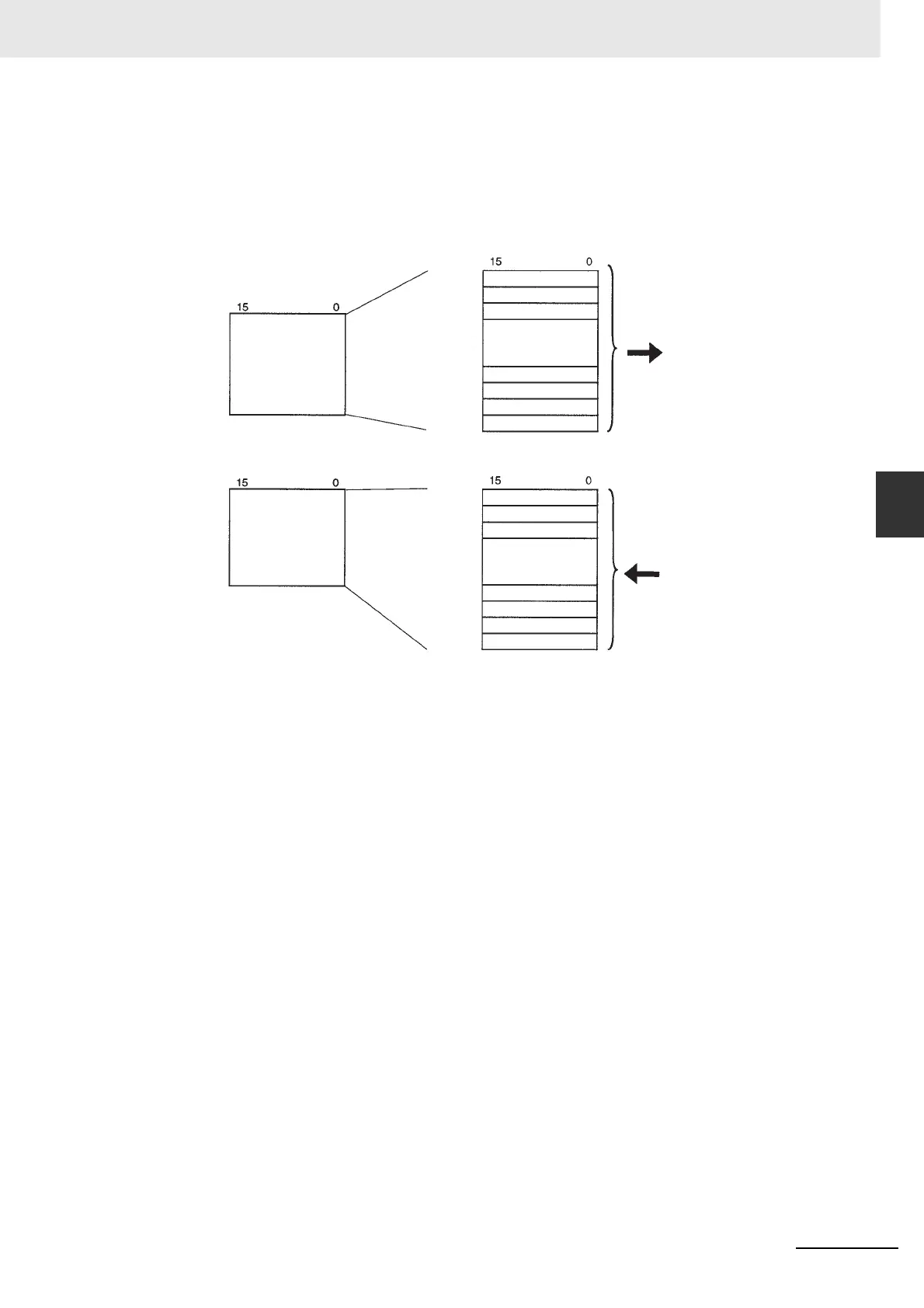

OUT blocks are allocated to slaves from CIO 3400 to CIO 3463 and IN blocks are allocated to slaves
from CIO 3500 to CIO 3563 in the memory used for CJ-series Unit. To access the output (OUT)
block and the input (IN) block from the user program, allocate a user-defined variable to the applica-
ble area.
