Appendices
A-30
CJ-series DeviceNet Units Operation Manual for NJ-series CPU Unit(W497)

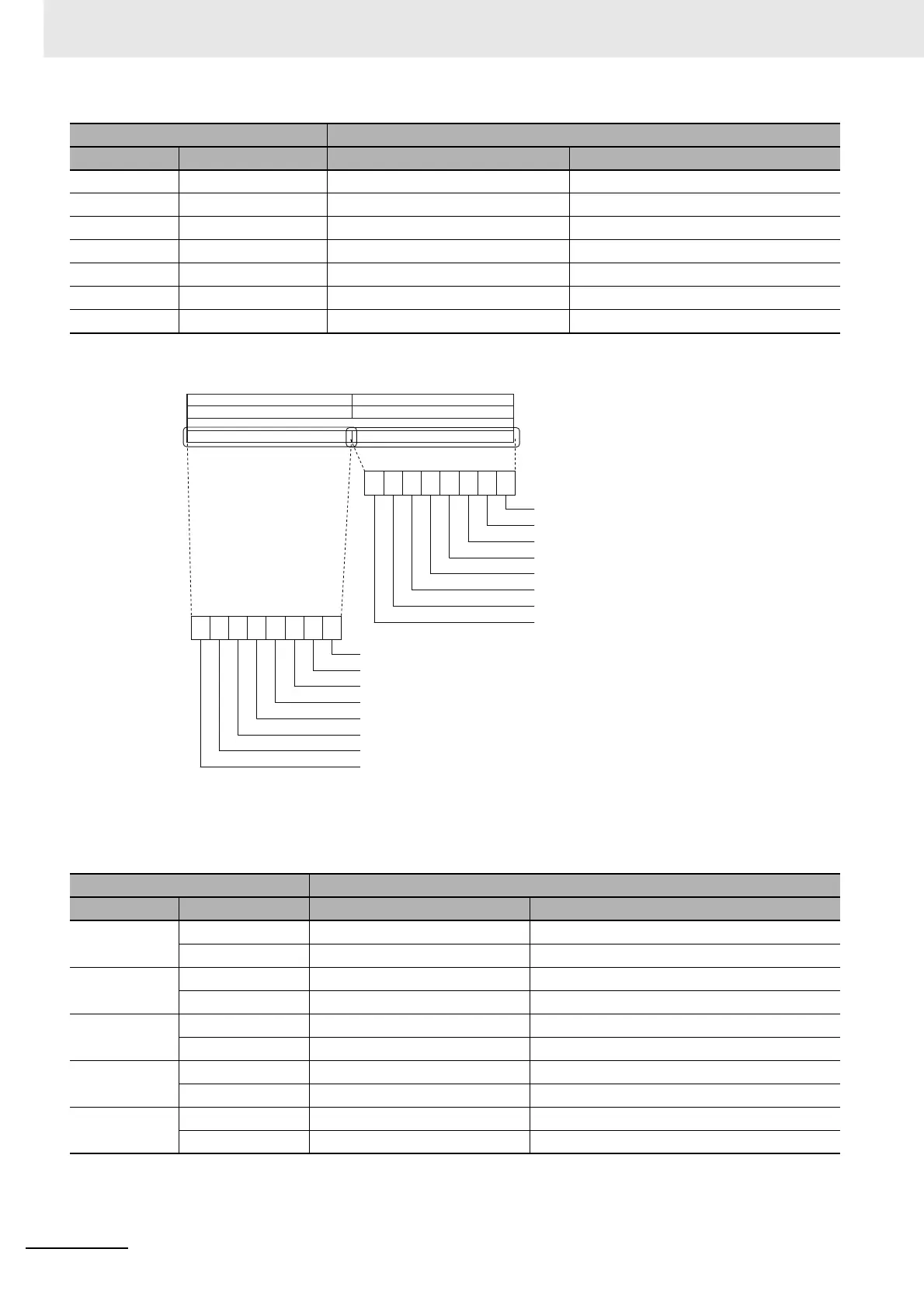

z D m+43 to m+74 (Slave Detailed Status)
The device variables for CJ-series Units that correspond to bits 0 to 7 or 8 to 15 of each word are as
follows:
The functions of bits 0 to 7 and 8 to 15 of each word correspond to the functions of bits 0 to 7 on the
device variables for CJ-series Unit:
D m+36 0 to 15 *_SlavAlocRefTblSta[5] Slave IN 1 area size
D m+37 0 to 7 *_SlavAlocRefTblSta[6] Slave OUT 2 area
D m+38 0 to 15 *_SlavAlocRefTblSta[7] First word in Slave OUT 2 area
D m+39 0 to 15 *_SlavAlocRefTblSta[8] Slave OUT 2 area size
D m+40 0 to 7 *_SlavAlocRefTblSta[9] Slave IN 2 area
D m+41 0 to 15 *_SlavAlocRefTblSta[10] First word in Slave IN 2 area
D m+42 0 to 15 *_SlavAlocRefTblSta[11] Slave IN 2 area size
CJ-series I/O memory address NJ-series device variables for CJ-series Unit
Word address Bit Variable name CJ-series function name
D m+43 0 to 7 *_Nd0Sta Detailed Slave Status Table for Node Address 0
8 to 15 *_Nd1Sta Detailed Slave Status Table for Node Address 1
D m+44 0 to 7 *_Nd2Sta Detailed Slave Status Table for Node Address 2
8 to 15 *_Nd3Sta Detailed Slave Status Table for Node Address 3
D m+45 0 to 7 *_Nd4Sta Detailed Slave Status Table for Node Address 4
8 to 15 *_Nd5Sta Detailed Slave Status Table for Node Address 5
D m+46 0 to 7 *_Nd6Sta Detailed Slave Status Table for Node Address 6
8 to 15 *_Nd7Sta Detailed Slave Status Table for Node Address 7
D m+47 0 to 7 *_Nd8Sta Detailed Slave Status Table for Node Address 8
8 to 15 *_Nd9Sta Detailed Slave Status Table for Node Address 9
CJ-series I/O memory address NJ-series device variables for CJ-series Unit
Word address Bit Variable name CJ-series function name
:
15 14 13 12 11 10 9 8
7 6
Bit 15D
m+43 *_Nd1Sta (Node address 1)
*_Nd3Sta (Node address 3)
*_Nd63Sta (Node address 63)
*_Nd0Sta (Node address 0)
*_Nd2Sta (Node address 2)
*_Nd62Sta (Node address 62)
*_Nd62Err (Slave Error)
*_Nd62VefyErr (Slave Verification Error)
*_Nd62CfgErr (Slave Configuration Error)
*_Nd62IOErr (Slave Remote I/O Communications Error)
Reserved by system
*_Nd62COSSendErr (Master COS Send Error)
*_Nd62SListRegSta (Scan List Registration Flag)
*_Nd62IOCommSta (Remote I/O Communications Flag)
*_Nd63Err (Slave Error)
*_Nd63VefyErr (Slave Verification Error)
*_Nd63CfgErr (Slave Configuration Error)
*_Nd63IOErr (Slave Remote I/O Communications Error)
Reserved by system
*_Nd63COSSendErr (Master COS Send Error)
*_Nd63SListRegSta (Scan List Registration Flag)
*_Nd63IOCommSta1 (Remote I/O Communications Flag)
m+44
m+74
Bit 08 Bit 07 Bit 00
5 4 3 2 1 0
