2 Wire the control panel with as thick and short electric lines as possible and ground to 100 Ω min.
3 Keep DeviceNet communications cables as short as possible and ground to 100 Ω min.

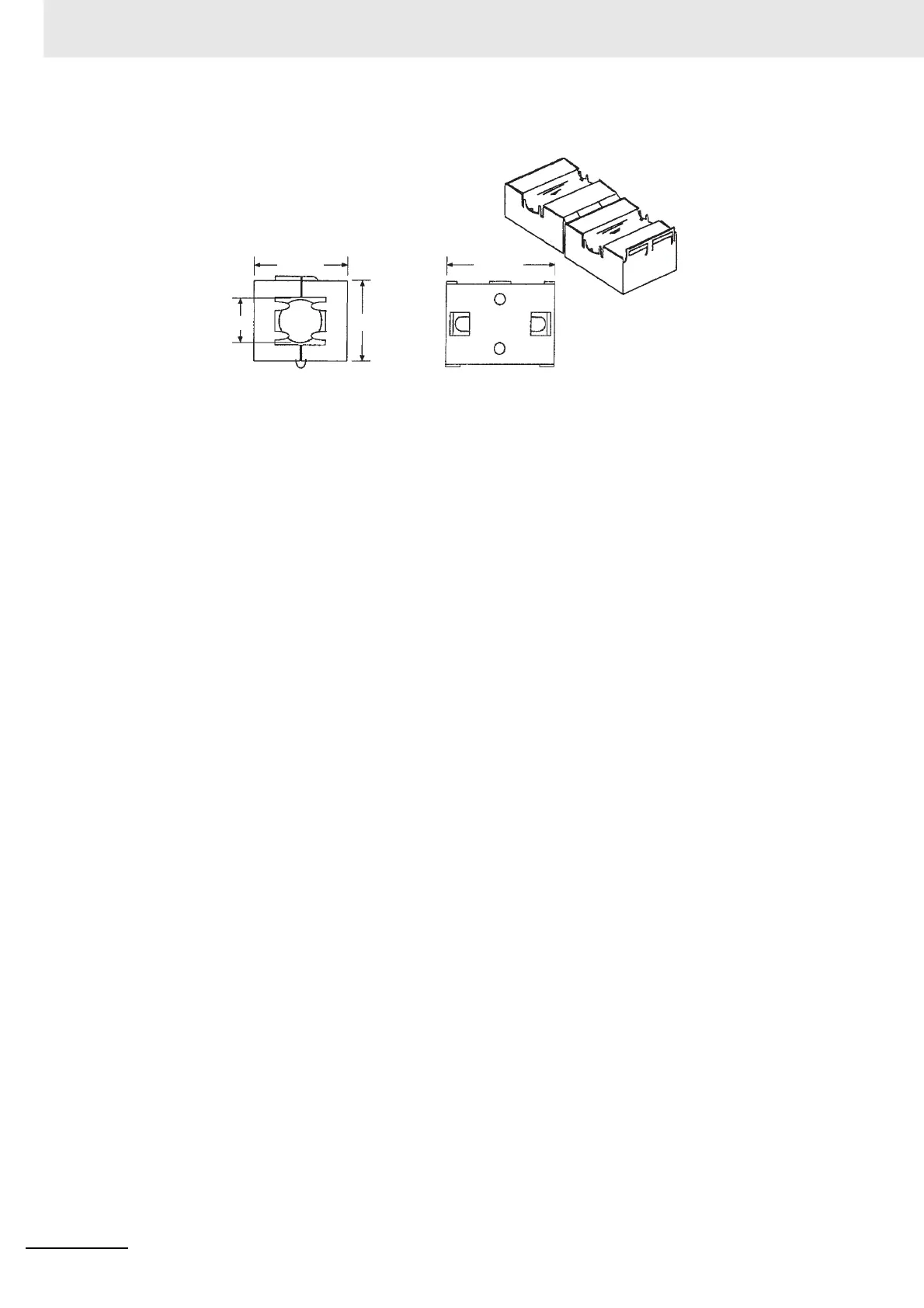

Ferrite Core (Data Line Filter): 0443-164151 (manufactured by
Fair-Rite Products Co., Ltd.)
Impedance specifications
25 MHZ: 156 Ω
100 MHZ: 250 Ω
30 mm
13 mm
29 mm
33 mm
[Contact]
Nisshin Electric Co., Ltd.
