Omron CJ2 Series User Manual

7. EtherNet/IP Connection Procedure
15
7.2.3. Parameter Settings
Create the I/O table for the PLC and set the IP address.
1
If the operating mode of the PLC
is RUN Mode or Monitor Mode,
change it to Program Mode by
following the steps below.

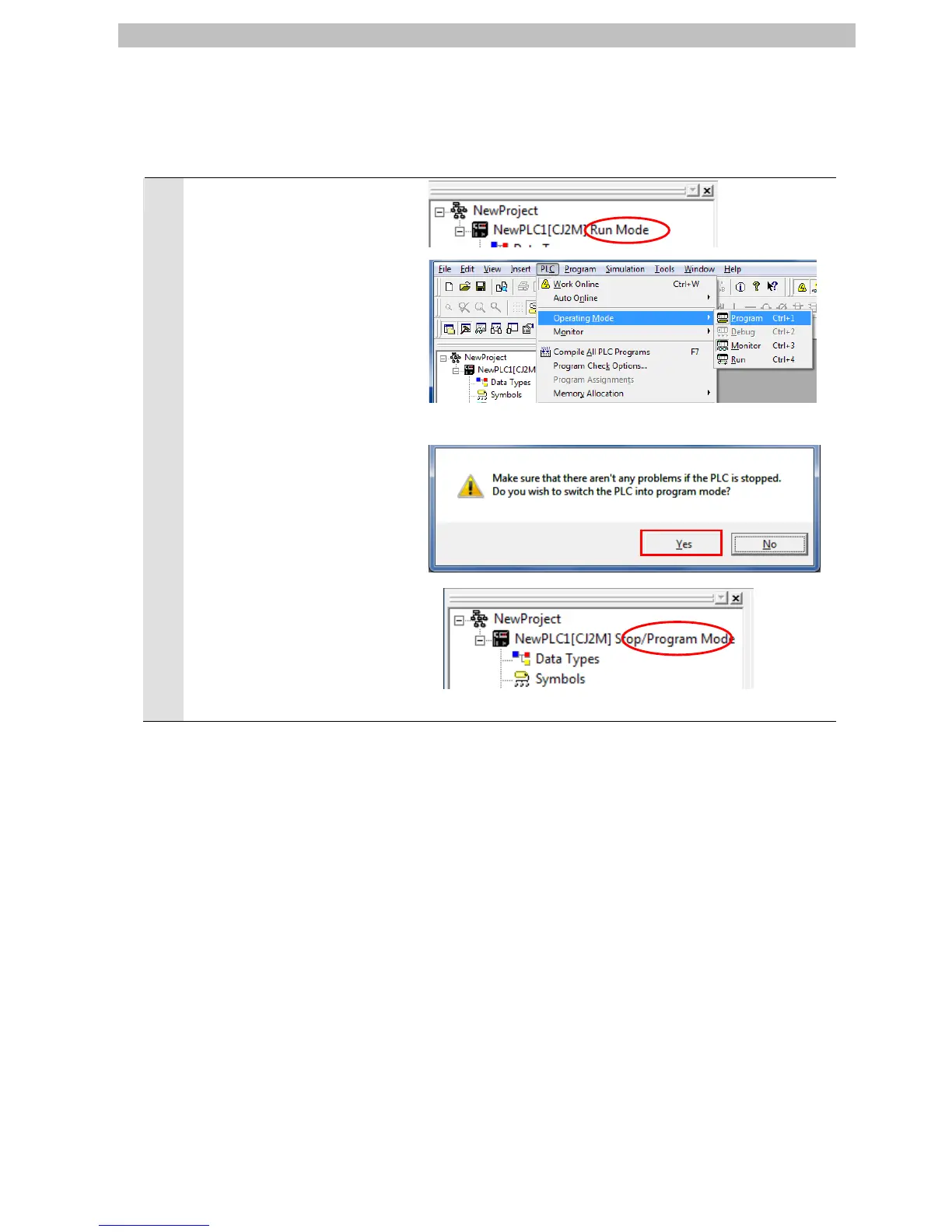

(1)Select Operating Mode -
Program from the PLC Menu
of the CX-Programmer.
(2)The dialog box on the right is
displayed. Confirm that there
is no problem and click the
Yes Button.
*Refer to Additional Information
on the previous page for the
settings concerning the dialog
display.
(3)Confirm that Stop/Program
Mode is displayed on the right
of the PLC model in the
project workspace of the
CX-Programmer.
(Project workspace)

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
