8. Initialization Method
40
8.1.2.
CPU Unit
T

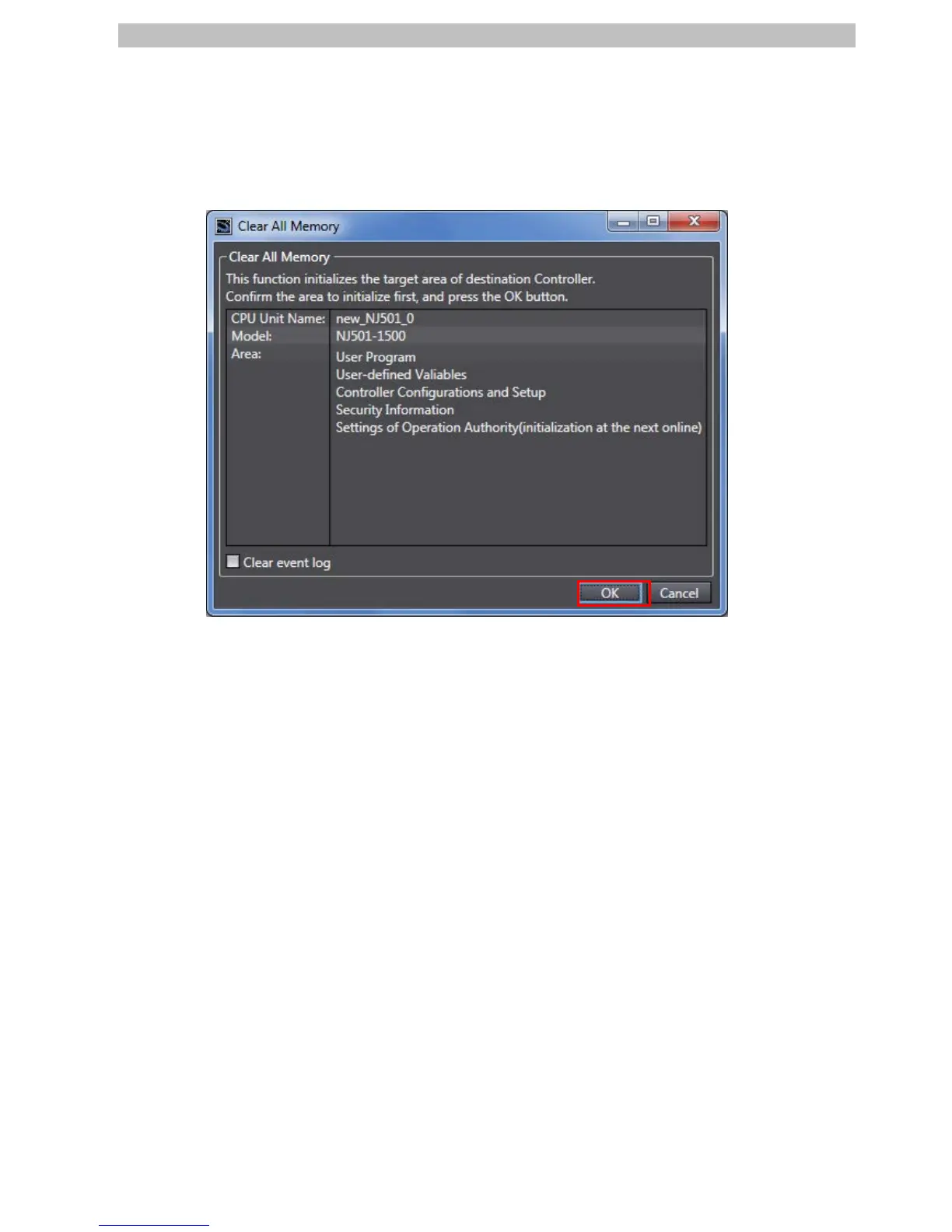

o initialize the settings of the CPU Unit, select
Clear All
Memory
from the Controller
Menu of the Sysmac S
tudio. The Clear
All Memory Dialog Box is displayed. Check the
contents and click the
OK
Button.
