Omron CJ2 Series User Manual

10. Appendix 2 Setting the Tag Data Links Using the Software
51
10.3.2. Setting the Global Variables
Set the global variables to use for the tag data links.

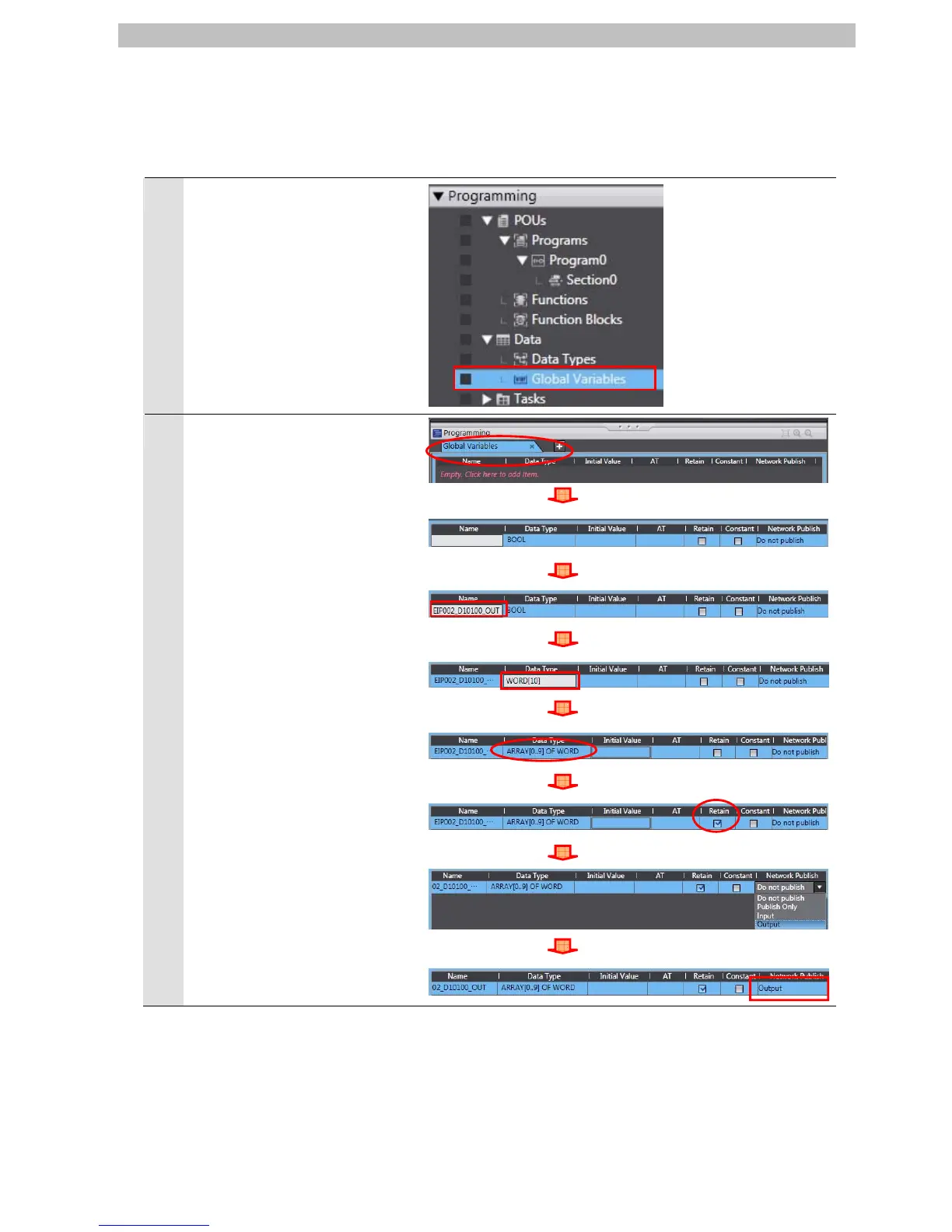

1
Double-click Global Variables
under Programming - Data in
the Multiview Explorer.
2
The Global Variables Tab Page
is displayed in the Edit Pane.
Click a column under the Name
Column to enter a new variable.
Enter EIP002_D10100_OUT in
the Name Column.
Enter WORD[10] in the Data
Type Column.
*After entering, the value
changes to ARRAY[0..9] OF
WORD as shown on the right.
Select the Retain Check Box to
retain the value.
Select Output from the Network
Publish Menu.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
