Omron CJ2 Series User Manual

10. Appendix 2 Setting the Tag Data Links Using the Software
52
3

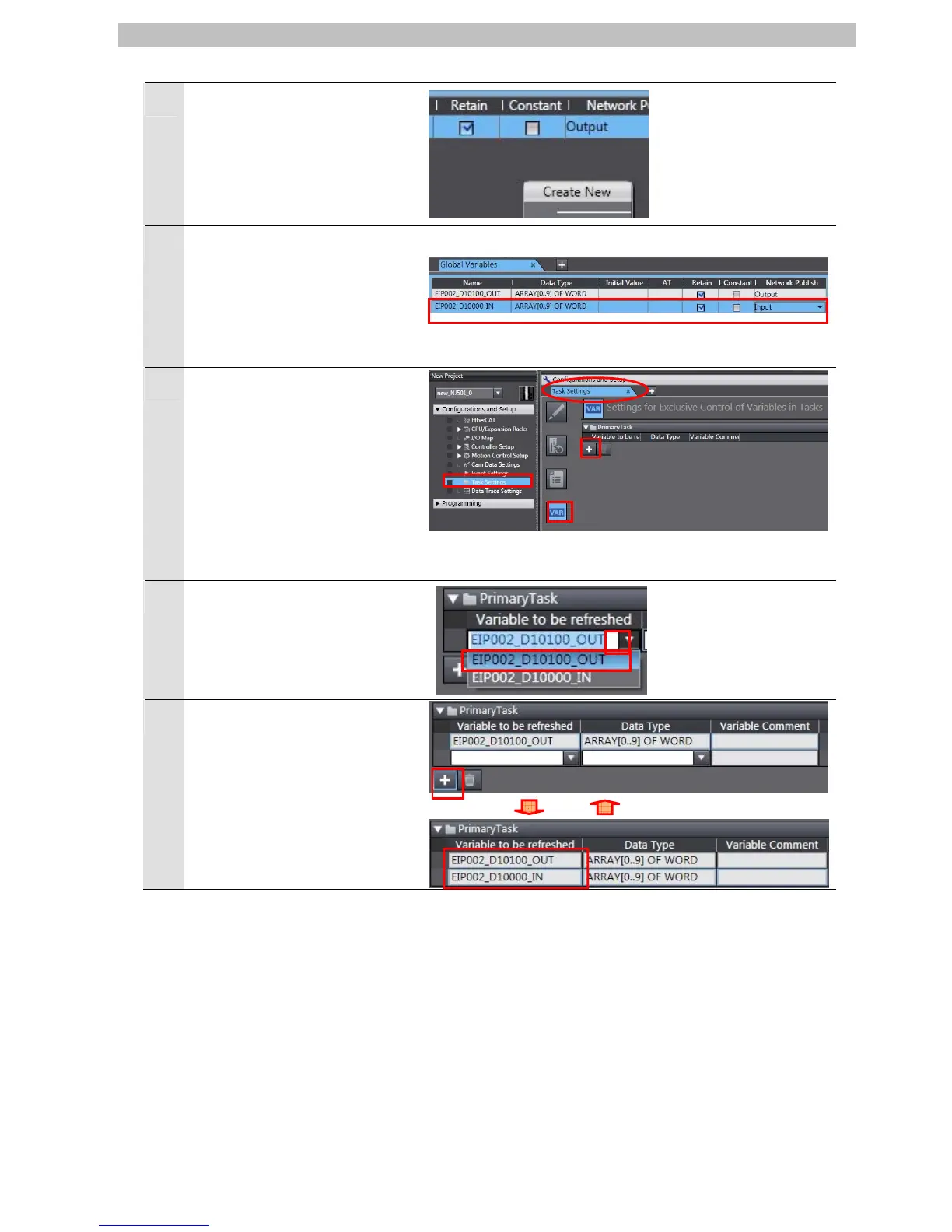

After entering, right-click and
select Create New from the
menu.
4
Enter the following data in the
new columns in the same way
as steps 2 and 3.
•Name: EIP002_D10000_IN
Data type: WORD[10]
Retained: Retained
Network Publish: Input
5
Double-click Task Settings
under Configurations and
Setup in the Multiview Explorer.
The Task Settings Tab Page is
displayed in the Edit Pane. Click
the Settings for Exclusive
Control Variables in Tasks
Button.
Click the + Button.
6
Click the Down Button under
Variable to be refreshed. The
variables set in steps 2 to 4 are
displayed.
Select EIP002_D10100_OUT.
8
Click the + Button and select a
variable to be refreshed.
*The data types are displayed
automatically, and you do not
have to set them.
Add all variables set in step 4 as
shown in the right figure.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
