Omron CJ2 Series User Manual

10. Appendix 2 Setting the Tag Data Links Using the Software
55
7

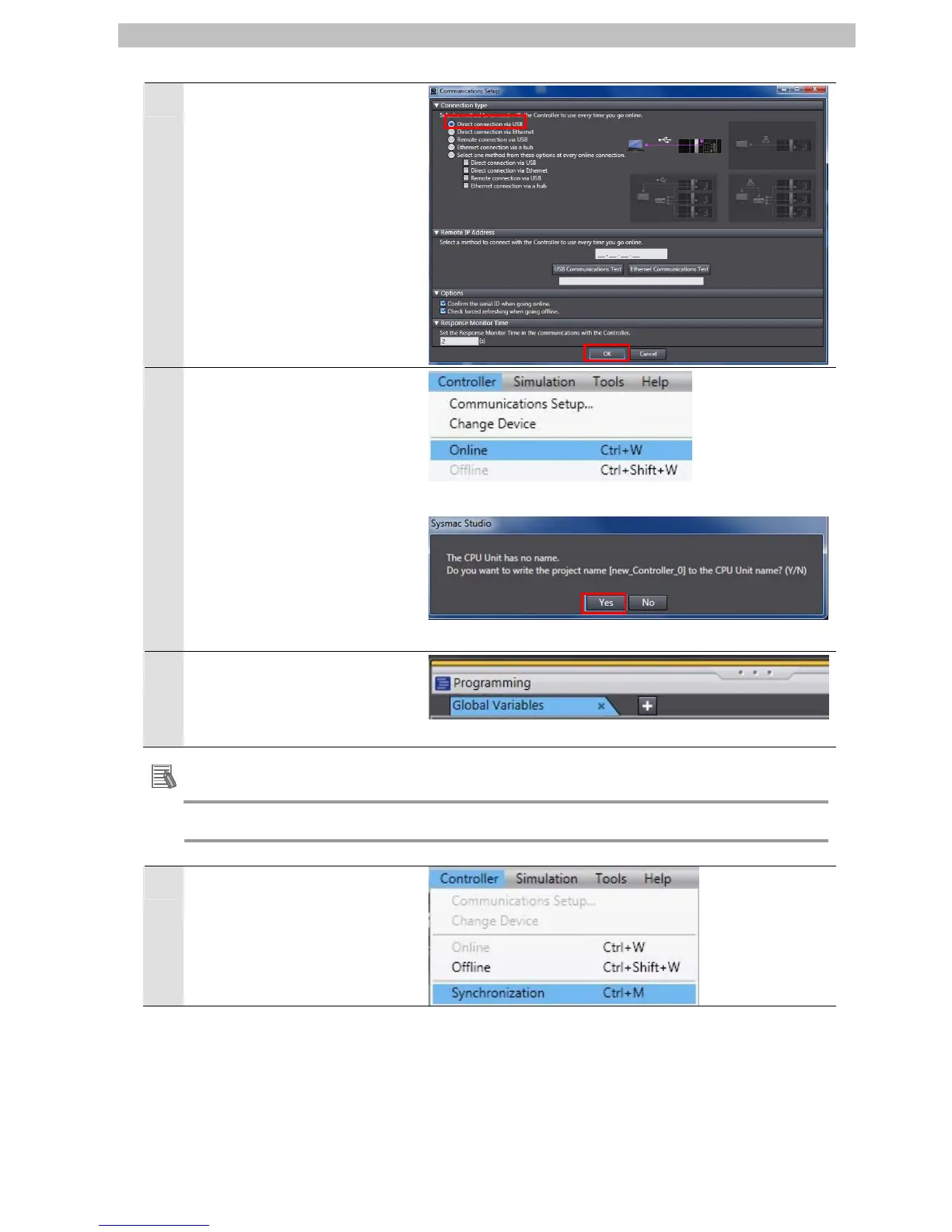

The Communications Setup
Dialog Box is displayed.
Select the Direct connection via
USB Option for Connection
Type.
Click the OK Button.
8
Select Online from the
Controller Menu.
A confirmation dialog box is
displayed. Check the contents
and click the Yes Button.
*The displayed dialog box
depends on the status of the
Controller used. Check the
contents and click the Yes
Button to proceed with the
processing.
9
When an online connection is
established, a yellow bar is
displayed on the top of the Edit
Pane.
Additional Information
For details on online connections to a Controller, refer to Section 5 Online Connections to a
Controller of the Sysmac Studio Version 1 Operation Manual (Cat. No. W504).
10
Select Synchronization from
the Controller Menu.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
