10. Appendix 2 Setting the Tag Data Links Using the Software
61
Additional Information
If an online connection cannot be made to the Controller, check the cable connection. Or,
return to step 1, check the settings and repeat each step.
For details, refer to 7-2-8 Connecting the Network Configurator to the Network in Section 7
Tag Data Link Functions of the NJ-series CPU Unit Built-in EtherNet/IP
TM
Port User's Manual
(Cat. No. W506).
7

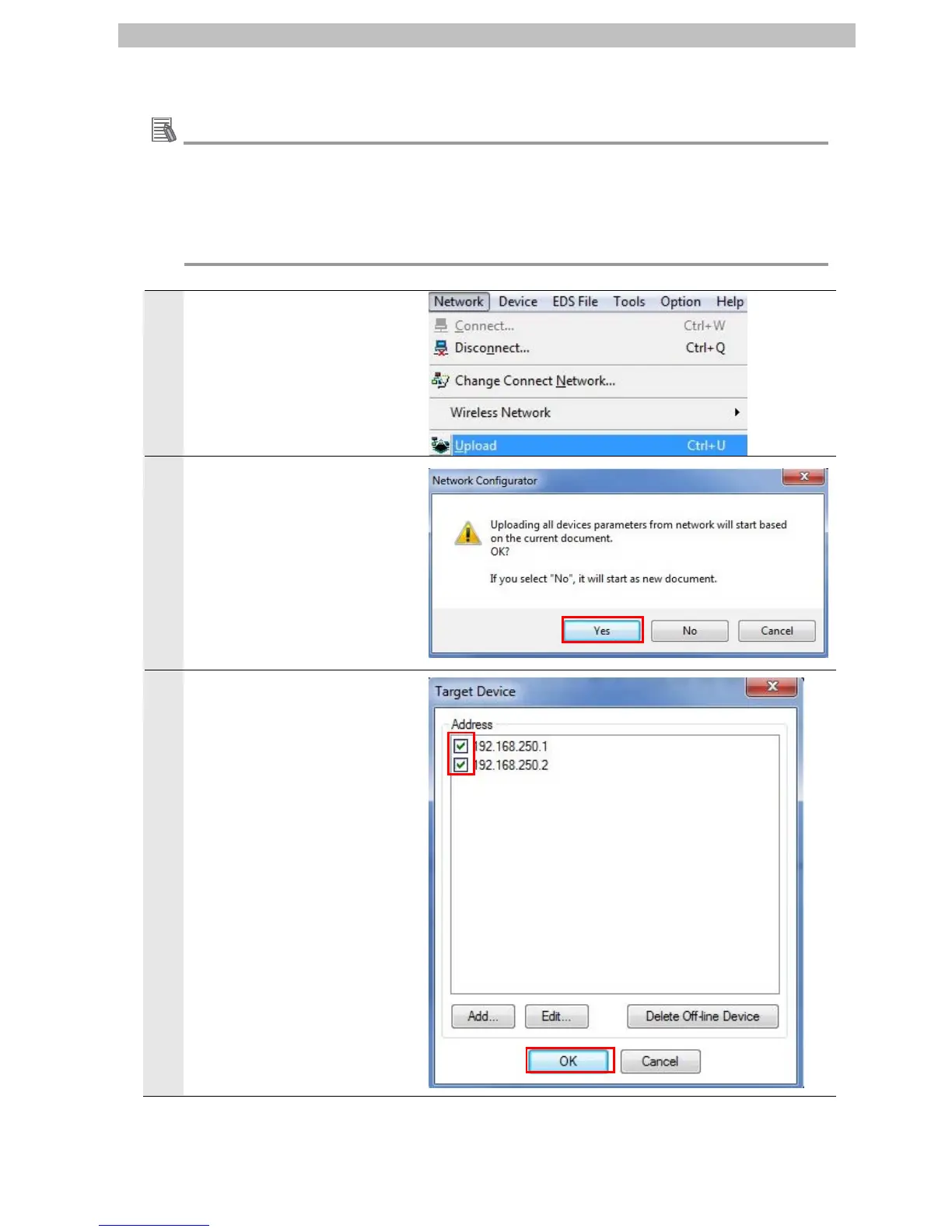

Select Upload from the Network
Menu to upload the device
information on the network.
8
The dialog box on the right is
displayed. Confirm that there is
no problem and click the Yes
Button.
9
The Target Device Dialog Box is
displayed.
Select the192.168.250.1
Checkbox and the
192.168.250.2 Checkbox, and
click the OK Button.
*If 192.168.250.1 or
192.168.250.2 is not displayed
on the dialog box, click the Add
Button to add the address.
*The displayed addresses
depend on the status of the
Network Configurator.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
