Omron CPM1A User Manual

27

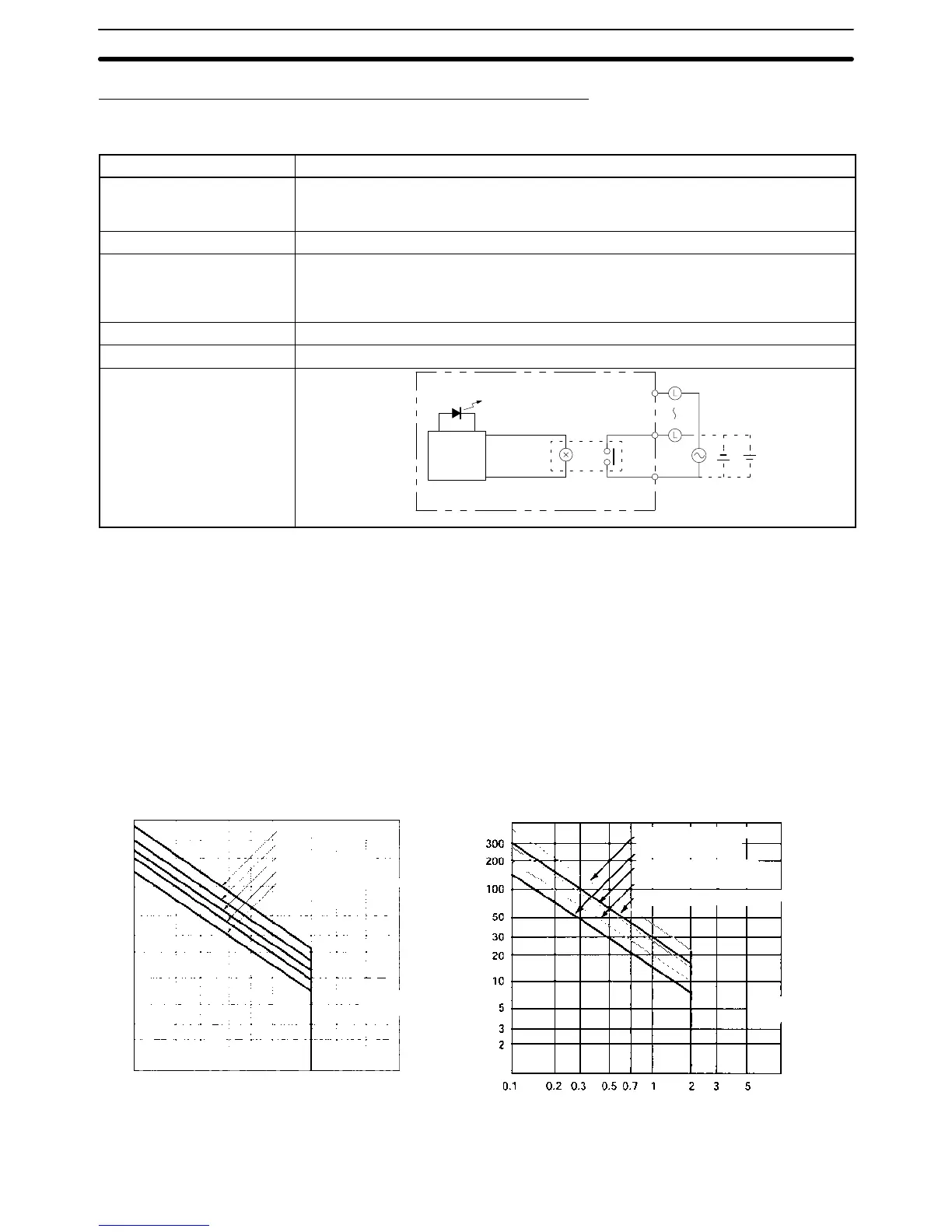

CPU Unit and Expansion I/O Unit Output Specifications
Relay Outputs
Item Specification
Max. switching capacity 2 A, 250 VAC (cosφ = 1)
2 A, 24 VDC
(4 A/common)
Min. switching capacity 10 mA, 5 VDC
Service life of relay Electrical: 150,000 operations (resistive load, 24 VDC) 100,000 operations (inductive
load, 220 VAC, cos φ=0.4)
Mechanical for pre-V1 Units: 10,000,000 operations
Mechanical for V1 Units: 20,000,000 operations
ON delay 15 ms max.
OFF delay 15 ms max.
Circuit configuration OUT
OUT
Maximum
250 VAC: 2 A
24 VDC: 2 A
COM
Output
LED
Internal
Circuits
Note 1. The service life of relay output contacts shown in the table assumes the
worst conditions. The following graph shows the results of OMRON’s ser-
vice life tests at a switching rate of 1,800 times/hour.
2. The CPM1A-20EDR Expansion I/O Unit with Relay Outputs does not con-
form to the EC Directives. Use the CPM1A-20EDR1 or CPM1A-8ER Expan-
sion I/O Unit, which has the CE marking, when conformance to EC Direc-
tives is required.
Contact current (A)
120 VAC, resistive load
24 VDC/240 VAC, resistive load
Switching rate:
1,800 times/hour
24 VDC, τ = 7 ms
120 VAC, cosφ = 0.4
240 VAC, cosφ = 0.4
Life (x 10 )
4
500
300
200
100
50
30
20
10
5
3
2
0.1 0.2 0.3 0.5 0.7 1 2 3 5
Pre-V1 Units
V1 Units
Contact current (A)
120 VAC, resistive load
24 VDC/240 VAC, resistive load
Switching rate:
1,800 times/hour
24 VDC, τ = 7 ms
120 VAC, cosφ = 0.4
240 VAC, cosφ = 0.4
Life (x 10 )
4
Specifications Section 2-1

Omron CPM1A Specifications

General

Model	CPM1A
Type	Compact PLC
Communication Ports	RS-232C (optional)
Instruction Set	Basic and advanced instructions
Operating Temperature	0 to 55°C
Storage Temperature	-20 to 75°C
Humidity	10% to 90% RH (non-condensing)
Power Supply	24 VDC or 100-240 VAC
Expansion	Expansion I/O units available
Timers	128
Counters	256 counters
I/O Points	10, 20, 30, or 40 points (depending on model)
