Procedures Section 3-2
Note Symbols with automatically generated symbol names (AutoGen_ + Address)
cannot be copied from a global symbol table and pasted into the function
block definition symbol table.
Generating Function Block Definitions from Existing Ladder Programming
One or more program circuits in a user program can be converted to the lad-
der programming in a function block definition.
Note This function is designed to help you create function block definitions based
on existing ladder programming. It does not automatically generate finish def-
initions. After generating a function block definition with this function, always
check the warning messages in the FB Variable Allocation Dialog Box and
Output Window and check the program that was generated, and be sure to
make any required changes.
1,2,3... 1. Right-click one or more program circuits in the user program and select
Function Block (ladder) generation from the pop-up menu.

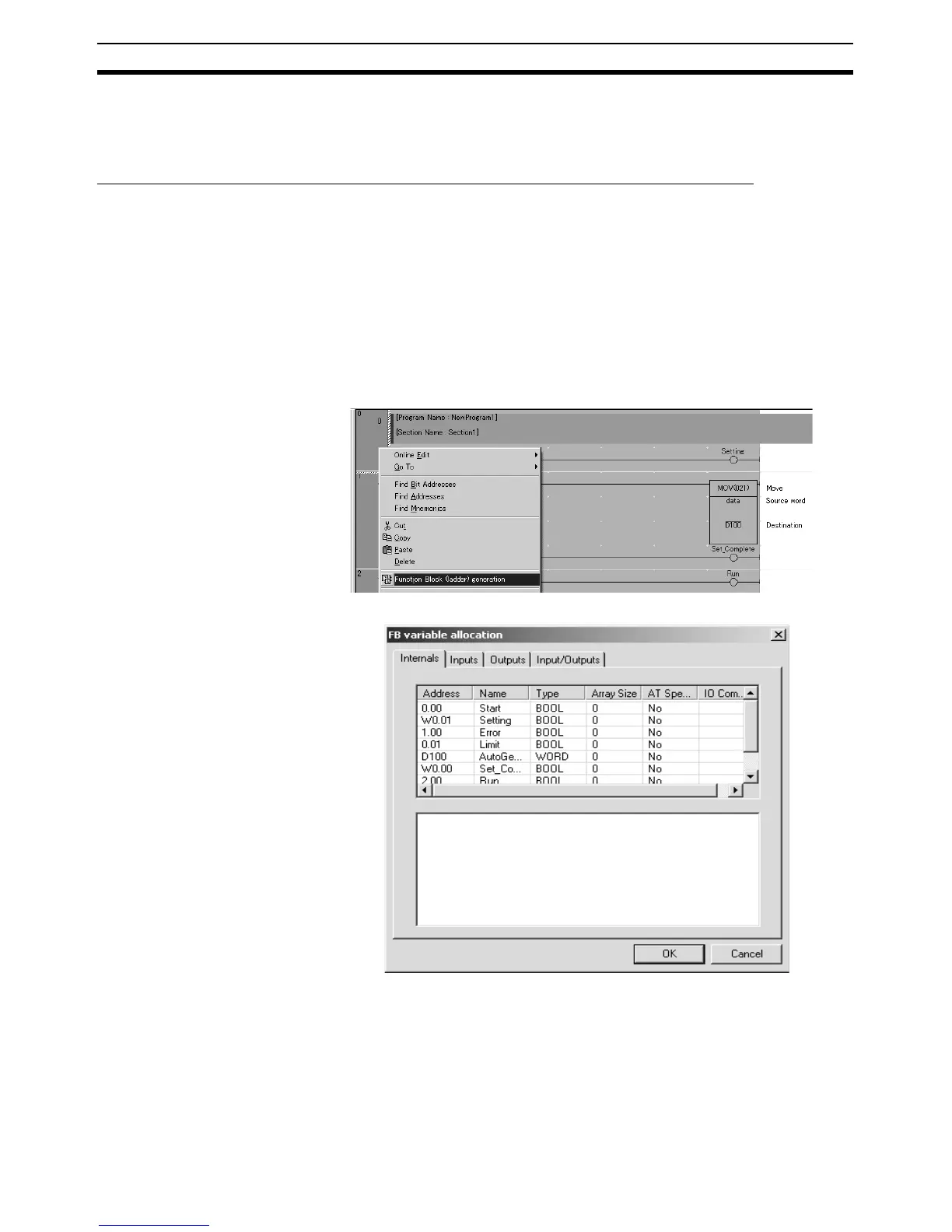

2. The following FB Variable Allocation Dialog Box will be displayed.
