82
Procedures Section 3-2
3-2 Procedures
3-2-1 Creating a Project
Creating New Projects
with CX-Programmer
1,2,3... 1. Start the CX-Programmer and select New from the File Menu.
2. In the Change PLC Window, select a Device Type that supports function
blocks. These are listed in the following table.
3. Press the Settings Button and select the CPU Type. For details on other
settings, refer to the CX-Programmer Operation Manual (W446).
3-2-2 Creating a New Function Block Definition

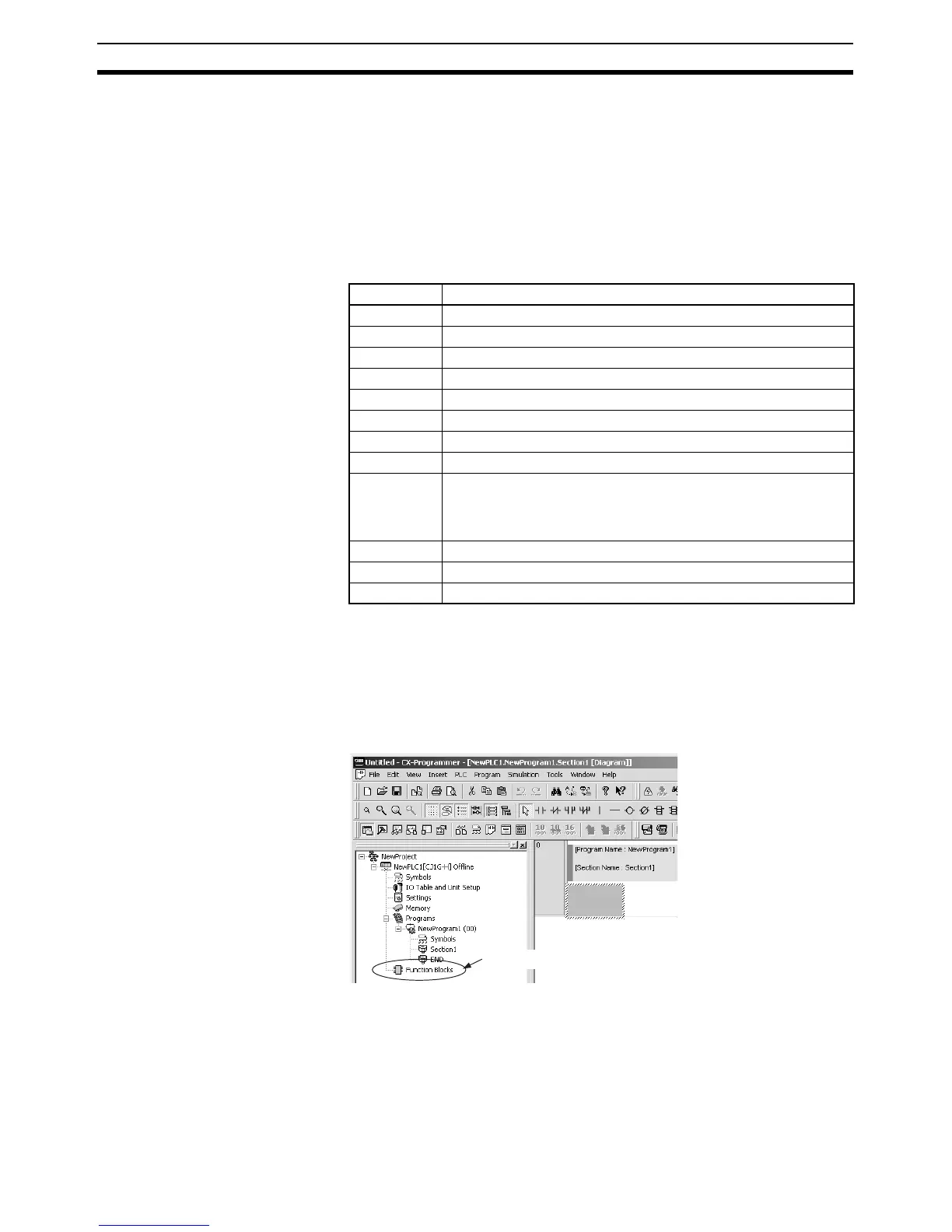

1,2,3... 1. When a project is created, a Function Blocks icon will appear in the project
workspace as shown below.
2. Function block definitions are created by inserting function block defini-
tions after the Function Blocks icon.
Creating Function Block
Definitions
Function blocks can be defined by the user using either ladder programming
or structured text.
Device CPU
CJ2H CPU68/67/66/65/64/68-EIP/67-EIP/66-EIP/65-EIP/64-EIP
CS1G-H CPU42H/43H/44H/45H
CS1H-H CPU63H/64H/65H/66H/67H
CJ1G-H CPU42H/43H/44H/45H
CJ1H-H CPU65H/66H/67H/64H-R/65H-R/66H-R/67H-R
CJ1M CPU11/12/13/21/22/23
CP1H CP1H-XA/X/Y
CP1L CP1L-M/L
NSJ G5D (Used for the NSJ5-TQ0@-G5D, NSJ5-SQ0@-G5D, NSJ8-
TV0@-G5D, NSJ10-TV0@-G5D, and NSJ12-TS0@-G5D)
M3D (Used for the NSJ5-TQ0@-M3D, NSJ5-SQ0@-M3D, and
NSJ8-TV0@-M3D)
FQM1-CM FQM1-CM002
FQM1-MMA FQM1-MMA22
FQM1-MMP FQM1-MMP22
Function Blocks will appear under the PLC.
