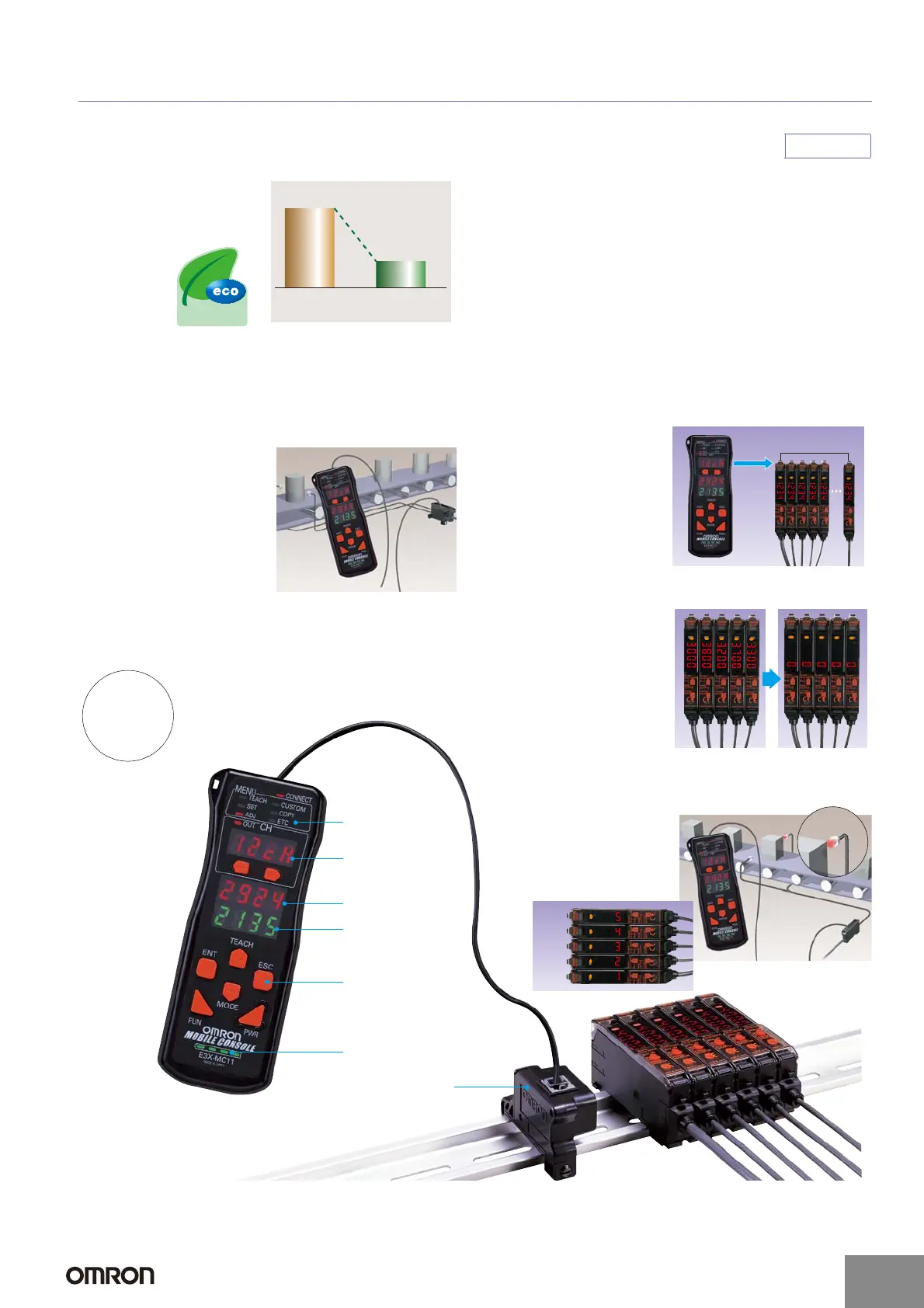

E3X-DA-N
Power Consumption Reduced by As Much
As 70%
Power consumption is
reduced by as much as 70%
from 1800 mW to 600 mW
(when the digital display is
OFF).
Digital Display Can Be Turned OFF or
Dimmed during Operation
When the digital display is viewed infrequently during
operation, current consumption can be reduced by dimming
the display or turning it OFF entirely.
(Eco-mode can be set from the Mobile Console only.)
New Generation of Mobile Consoles the Size of Cellular Phones.
Further Developing the Ultimate Power of Fiber Amplifiers.
Previous model E3X-DA-N
(with digital display OFF)
600 mW
1800 mW
This eco-label is displayed on
products that meet
environmental standards
established by OMRON.
Eco-mode
Head
Function indicator
section
Light intensity monitor
Channel setting
section
Threshold
Operation keys
Battery monitor
Optical communications
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
New
Concept
Patent Pending
Flash the Sensor head and display the amplifier channels
during operation.
Even if the Amplifier and Sensor
head are separated during
operation, it is still possible to
flash the Sensor head and
display the amplifier channels.
Remote Setting and Adjustment
Perform settings, teaching, and fine adjustments at the
end of the Fiber Unit.
Display the light intensity and threshold at the same time.
Previously, settings and
teaching could be performed
only on the Amplifier. Now,
however, using a Mobile
Console enables these
operations at the end of the fiber.
Strict adjustments can be made
while checking the workpiece
position.
With group teaching, teach multiple amplifiers
simultaneously.
Eliminate inconsistency by using group zero reset.
The tedious teaching that had
to be performed separately for
each Amplifier can now be
performed for several
Amplifiers at once using the
Mobile Console.
The group zero reset function
can simultaneously reset the
digital displays of multiple
Amplifiers to 0. This function is
useful to minimize variation
between Amplifier values.
Group teaching
